TIER-ONE (UK) Picatinny RingsSets

  • Sale
  • $239


IN STOCK ITEMS LISTED WILL SHIP SAME DAY!! IF IT SHOWS OUT IF STOCK, CONTACT US AND WE'LL GET IT ORDERED FOR YOU.

CONTACT US FOR ALL YOUR TIER-ONE SCOPE MOUNTS AND BIPOD NEEDS NOT LISTED HERE - TURNAROUND TIME IS ABOUT 2 WEEKS ON ITEMS NOT IN STOCK!!

WE SELL ALL THE PRODUCTS AVAILABLE FROM TIER-ONE (Let us know what you need and we'll get it ordered) - MORE PRODUCTS HERE: https://tier-one-usa.com/collections/all-products

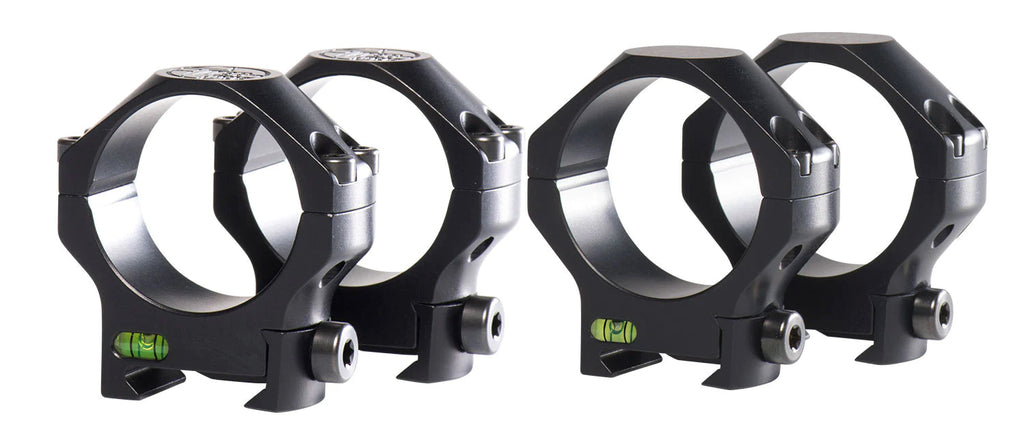

Picatinny Picatinny Ringsets

Tier One Picatinny Rings are precision made on 5 axis CNC machinery.

The key to accuracy in manufacture is to minimise the number of operations required to complete the machining process.

By investing in new Technology, we have been able to cut the number of operations required from eight to two. By doing this, there is no accuracy loss due to re setting for different operations.

All Rings are made from solid billets of Aluminium 7075T6 alloy and are available in medium and high configurations.

Ring sizes from 1" up to 40mm (40mm for optics such as the Swarovski DS) Picatinny Rings available.

Due to the precision of the manufacturing process, lapping is not required when mounted on a quality picatinny rail.

Screws are stainless steel and manufactured by us on our own machines to the highest possible specification - they are NOT imported screws from China....!!!

WHAT CALIBERS ARE THESE RINGS FOR?

We recommend torquing these rings to 18in/lbs because some scope manufacturers make their scopes from soft materials. Torquing any higher could cause marking or other damage to the scope tube.

If you're torquing these rings to 18in/lbs then we don't recommend using them with magnum calibers.

For magnum caliber rifles we highly recommend our one-piece mounting system, the Monomount. Or, the Tactical Rings, which are based on the Short Saddle mono but come in a two-piece format. Both have a much larger scope contact area.

CAN I OVERTORQUE THE TOP RINGS?

If you are happy that your scope is manufactured from a strong enough material to resist the extra pressure then you can, entirely at your own risk, torque them up to 26in/lbs as we do when using them on Magnum caliber rifles.

IMPORTANT: You MUST check with your scope manufacturer before you do this and we take no responsibility if you mark or otherwise damage your scope tube.

These Superlight Hunting Rings are tough, extremely lightweight and accurate - for first shot kills on any hunting expedition.

We've tested these rings on Ibex hunts in Central Asia with .300 caliber rifles and they've performed faultlessly. Designed for hunting in extreme conditions, or any lightweight shooting application where weight and a rock solid scope position is critical.

Due to the advanced nature of their engineering, these rings also perform very well in other shooting disciplines and will noticeably outperform most heavier weight rings sets.

Machined in matching pairs to 3 microns tolerance.

If you have a high recoiling rifle, or need six-screw rings or monolithic mounts, use the TACTICAL Rings or Long or Short-Saddle MONO Mounts.

QUICK SPECS

  • Manufactured from high grade 7075T6 aluminium
  • No lapping required - perfectly matched pairs
  • 25.4mm-30mm-35mm-36mm and 40mm scope rings available in multiple heights
  • 34mm scope rings available in three heights
  • Four screw ring caps for secure optic mounting
  • Mill spec 30 micron hard anodised finish
  • One hit machining to ensure repeatability
  • Built in anti-cant bubble
  • Supplied complete with Torx bits


MATERIALS

When you buy from Tier One we want you to have a quality product that lasts a lifetime. That’s why we invest in the highest quality materials available for all of our products.

These Picatinny Scope Rings are manufactured from solid 7075T6 aluminum, an aerospace alloy that offers one of the highest strength to weight ratios of any alloy currently available.

The screws we use in these scope mounts are manufactured by us, in house, to our own exact specifications, so they match the product perfectly and result in zero accuracy loss.

These materials are the finest available and combined with the rings’ efficient and elegant design they will offer you the maximum weight saving possible with the absolute maximum accuracy and repeatability of any rifle scope mount on the market right now.

CONSTRUCTION

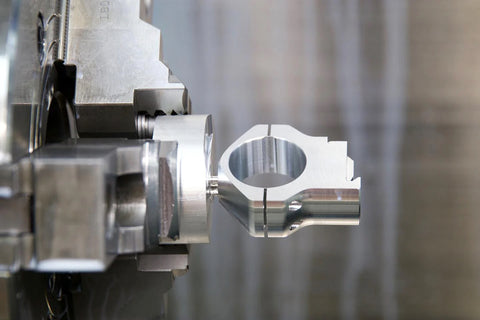

We use high tech 5 axis CNC milling machines and advanced manufacturing and finishing processes to ensure that every possible inaccuracy or loss of tolerance is eliminated in the making of these scope rings.

The ring pair is milled at the same time from the same solid billet of aluminium, and the whole process is completed in one operation. What this means for you is a pair of rings that are perfectly matched to each other, and which have not suffered any loss of accuracy due to resetting machines.

Most mass-manufactured AR & Rifle scope mounts are produced on inferior machinery in multiple operations, which means the rings and tools are moved out of alignment each time a new piece of the ring-set is machined, resulting in huge losses of accuracy across the whole process. We do not do this.

Every set of picatinny scope rings is mechanically deburred in a machine using hundreds of ceramic balls to achieve a perfectly smooth finish before anodising in hard black 30 micron thickness, and the logo is also fully anodised resulting in a blacked-out look.

MOUNTING

These rings are designed to be mounted to a standard picatinny rail. Torque settings for all of our rings are available on the data sheet below (see the link at the bottom of this text), these are also printed onto the bottom of each ring set.

We have many different types of rifle scope mounts available so if you require a different adapter type, ring size, height or a one piece scope mount please see our other products using the drop down menu above.

1" SCOPE RINGS

Are you looking for 1 inch picatinny scope rings? We make the highest quality 1 inch rings available anywhere. The Picatinny Hunting Rings are the only model in our range that go to 1".

SIZES

Whether you need tall scope mounts for AR setups or shorter rings for a more streamlined hunting rifle rig, you should be able to find what you want here.

What size scope ring do I need?

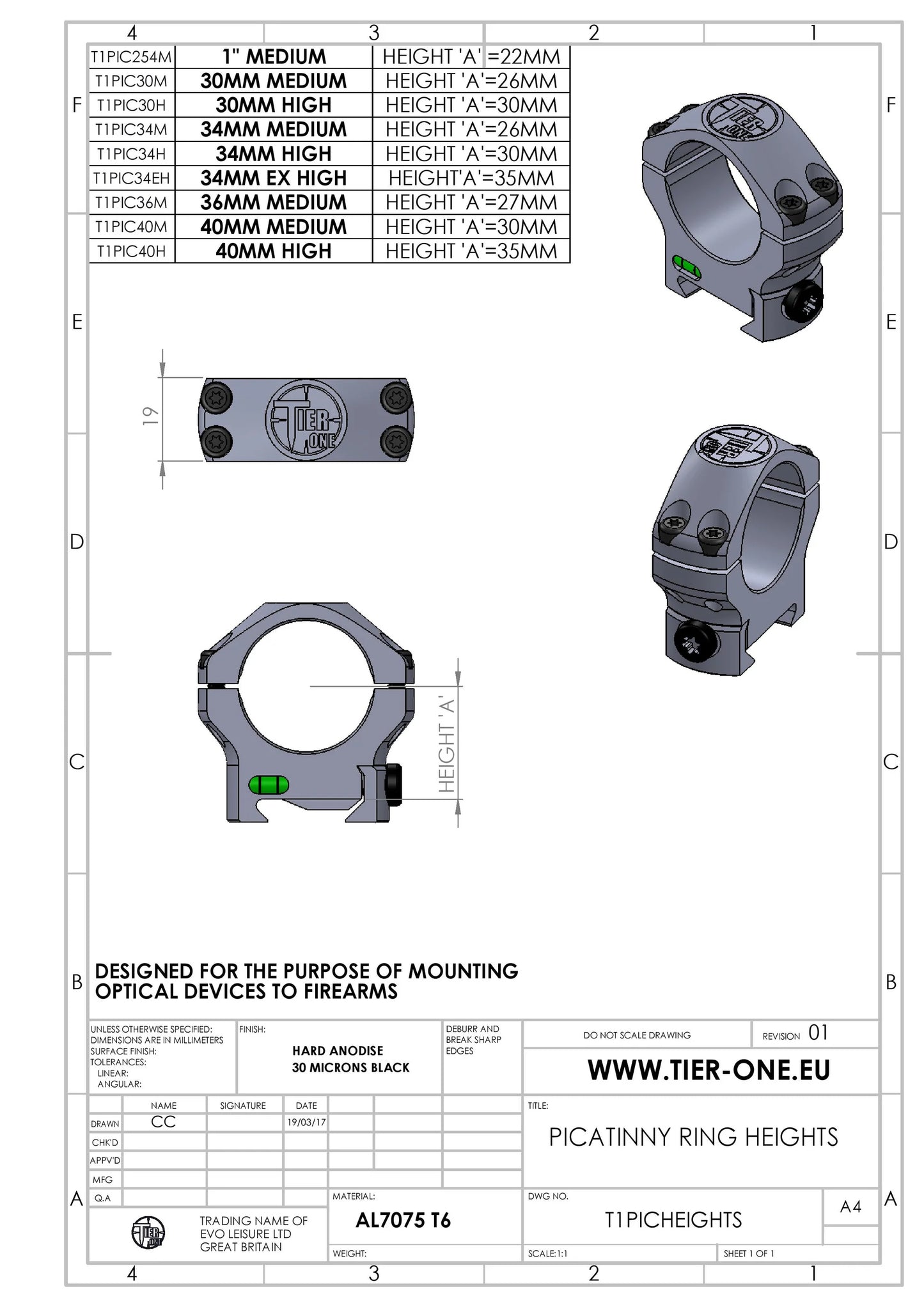

Please see the attached data sheet (at the bottom of this page) for a breakdown of all critical dimensions which will help you identify which size scope ring you require.

The bore height of 30mm Low is 22mm - this is not on the DATASHEET.

LIFETIME GUARANTEE

We offer a lifetime guarantee on parts and defects.

ABOUT TIER ONE

Tier One has pioneered shooting accessory designs since our inception in 2008. We have consistently developed innovative new products for the market and have always used the finest materials available in our products.

Our recent partnership with Zeiss USA is recognition of our years of hard work and quality in manufacture: We were chosen out of hundreds of manufacturers worldwide to design and manufacture Zeiss USA’s own line of scope mounts, available now on their website.

Tier One has also pioneered carbon fiber products in the shooting industry, being responsible for one of the first and most commercially successful precision carbon fiber bipod designs. We have continued to develop and innovate and the result is the industry-beating Tier One Tactical Bipod.

Click on DATASHEET for specs!!
