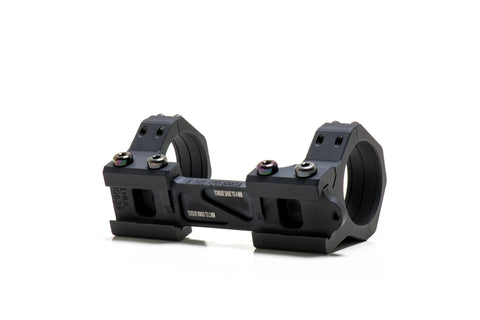

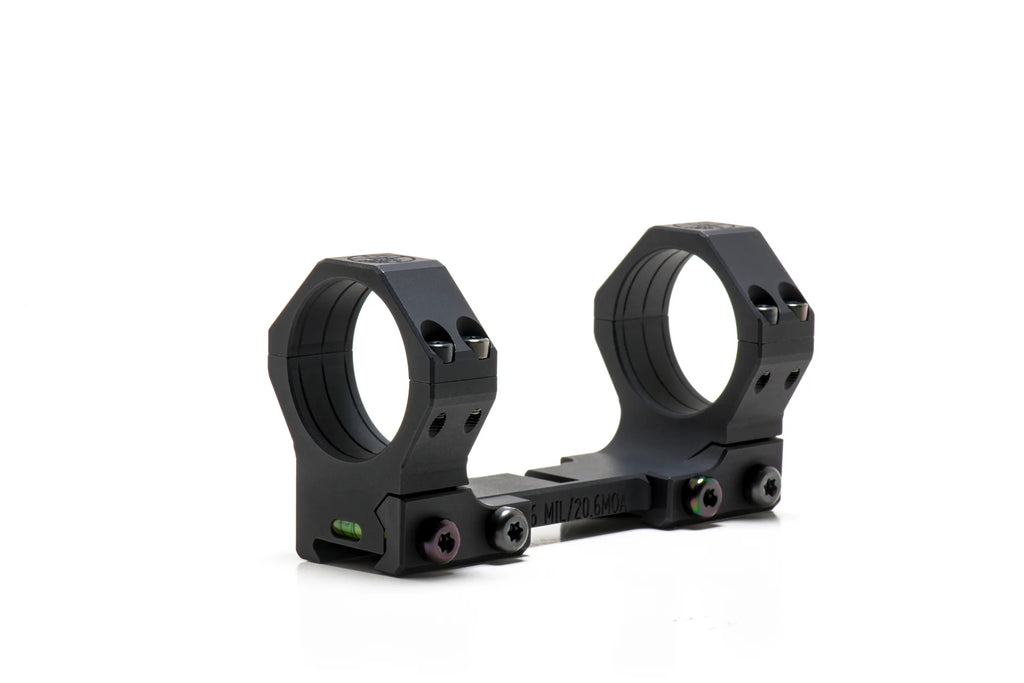

One Piece Scope Mount - Long Saddle
THESE ARE SPECIAL ORDER - DELIVERY TIME NORMALLY 2 WEEKS - PLEASE CONTACT US TO DISCUSS YOUR NEEDS!!
Tier-One Monomounts are precision made, one piece scope mounts designed to withstand very heavy professional use. They are extremely accurate, lightweight and tough - the perfect rings for big bore or heavy duty use.
Click here for DATA SHEET
HOW TO ORDER
Select your Monomount from the drop down menu above, according to the tube size, height and MOA/MIL incline that you require.
The Monomount comes without accessory top rails as standard. If you would like to order an accessory top rail these can be ordered separately from the same page. Simply select the item from the same drop down menu and add to cart.
When you check out, your cart will show the Monomount and the Top Ring Accessory Rail as separate items. This is the correct way to order.
DESIGN & MANUFACTURE
These are made to our original design and manufactured in house on our own 5 axis CNC machinery.
Incredible care and attention has been taken to ensure tolerances are kept extremely tight across the entire manufacturing process, and we machine all critical faces in one operation which prevents inaccuracies from resetting the machine tools between operations.
This means tighter groups for you, and more rounds on target.
The design also incorporates an anti-cant bubble in bright yellow/green for maximum visibility in day or night conditions.
These rings are built tough; they can withstand multiple heavy impacts with zero poi shift.
They are also built accurate - there are very few mounting systems on the market that even come close to the level of engineering, design and manufacturing precision that we have applied to the Tier One Monomount system.
All our products come with a lifetime warranty on parts and defects.
We machine these one piece mounts from solid billets (metal bar stock) of 7075 T6 aluminium which is an extremely light and tough alloy. The mount is then anodised to mil-spec 30 microns thickness to ensure a long life.
Check out our images above to see a 10 year old Monomount next to a current model and see how it held up under regular use - it's still in great shape, and working as it did when it left the workshop.
All the screws are manufactured in house on our own machines because we wanted to ensure total accuracy in every component and the only way we could ensure that was by controlling the whole manufacturing supply chain.
Additional screws are available if you lose one and need a perfectly matched replacement.
WEIGHTS & DIMENSIONS
The Long Saddle Monomount in 34mm Medium 0MOA weighs = 202g / 7.1oz
Weight will fluctuate slightly depending on ring size and height. Contact us if you require precise measurements for your chosen model.
Check out the data sheet at the bottom of this page for more heights and dimensions, including height from rail to bore line.
WHAT ACCESSORIES ARE AVAILABLE?

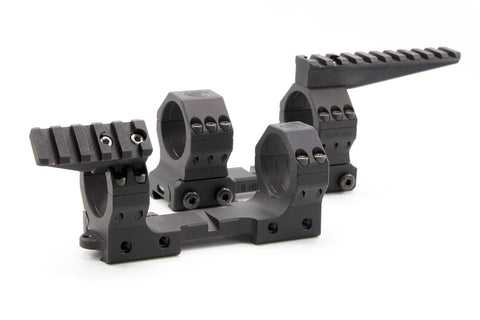

The following accessories are specially designed to work with the Long Saddle and Short Saddle Monomounts and are sold separately on this page.

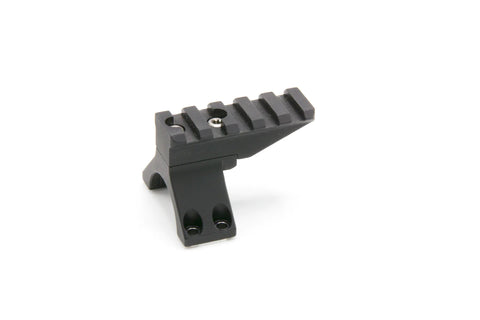

- Ring Top Accessory Rails are available in all tube sizes.
- 45-Degree (canted) and RAPTAR Ring Top Accessory rails are available only in 30mm and 34mm tube sizes.

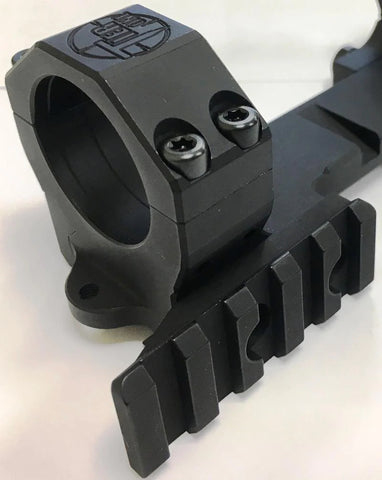

- Side mounted picatinny rails are available in all sizes.
Simply select from the dropdown menu and add to cart as normal to purchase.
- Machined from High Grade 7075T6 Aluminium on 5 axis CNC
- Large scope clamping area to withstand heavy recoil
- Two different body lengths to enable fitments of all quality optics - short saddle and long saddle mounts available
- Available in 30mm-34mm-35mm-36mm and 40mm tube sizes
- Mil-Spec 30 micron hard anodised finish
- Built in Anti-Cant bubble
- Mirage Band compatible
- Bolt on accessory rails available for ring caps and saddle
- One hit machining methods to ensure repeatability

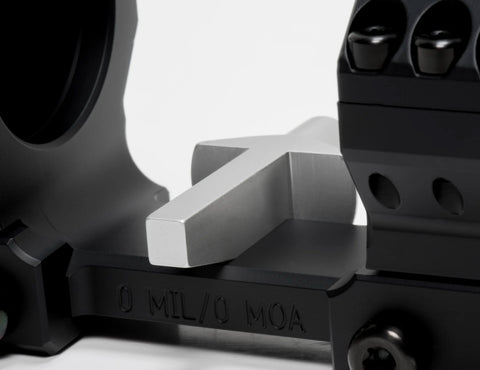

- Supplied with Levelling Wedge to enable true bore to reticle alignment when setting optic

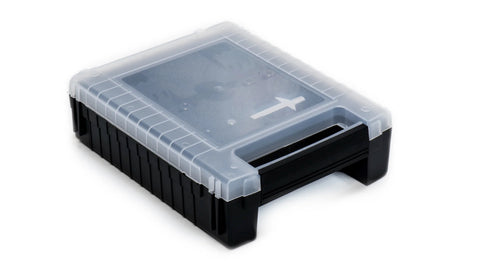

- Supplied in Hard Plastic Case complete with necessary Torx bits
WHAT SIZE DO I NEED?

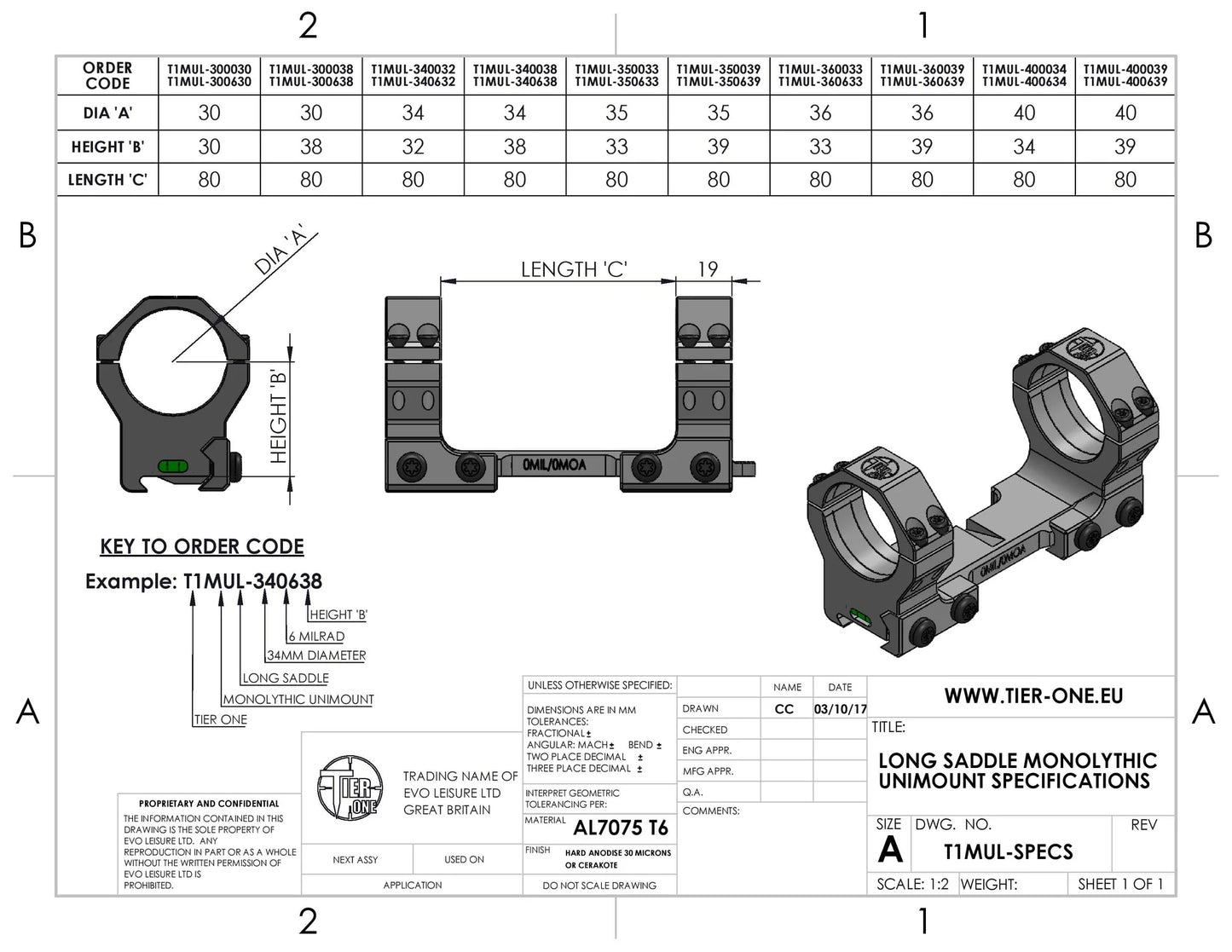

Please see the attached data sheet (at the bottom of this page) for a breakdown of all critical dimensions which will help you identify which size scope ring you require. If you would like to speak to someone at Tier One, please reach out using the contact form on this site.
We are so confident in the quality of these scope rings that we offer a lifetime warranty on parts and defects. If anything goes wrong that shouldn't have, we'll replace your product free of charge - no quibbles.
ABOUT TIER ONE
Tier One has pioneered shooting accessory designs since our inception in 2008. We have consistently developed innovative new products for the market and have always used the finest materials available in our products.
Our recent partnership with Zeiss USA is recognition of our years of hard work and quality in manufacture: We were chosen out of hundreds of manufacturers worldwide to design and manufacture Zeiss USA’s own line of scope mounts, available now on their website.
Tier One consistently pioneers carbon fiber products in the shooting industry, being responsible for one of the first and most commercially successful precision carbon fiber bipod designs. We have continued to develop and innovate the carbon fiber bipod and the result is the industry-beating Tier One Tactical Bipod.
