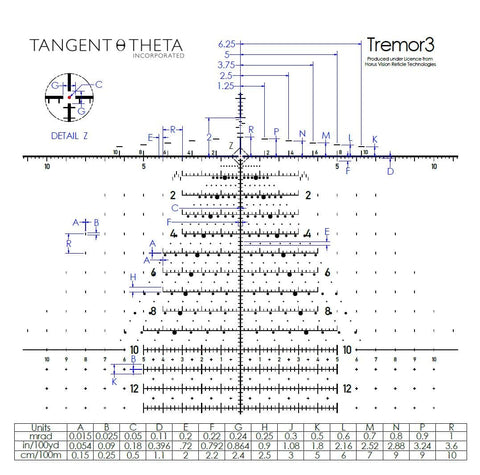

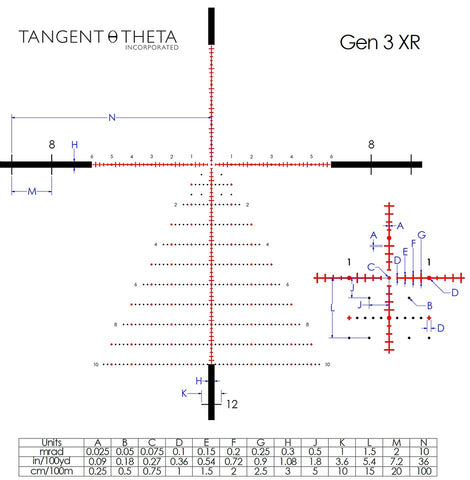

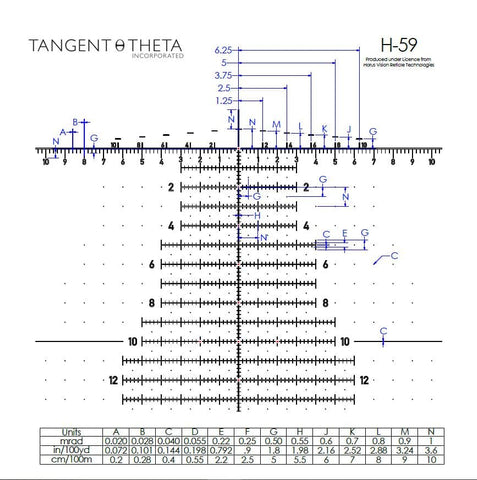

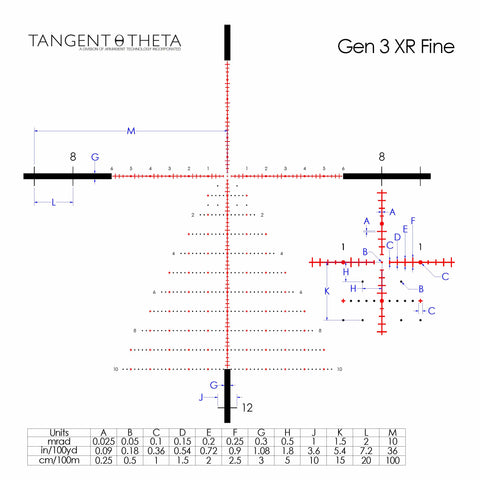

SOME MODELS ARE SPECIAL ORDER ONLY AND 8 WEEKS TIMELINE - PLEASE CONTACT US TO CHECK STOCK AVAILABILITY AND TO PLACE YOUR ORDER. GEN 3 XR AND H59 RETICLES ARE AVAILABLE FOR ORDER NOW - ALLOW 6-8 DAYS SHIPPING DELAY.
ALL SCOPES AVAILABLE WITH OPTIONAL AIF TURRETS - $300 SURCHARGE APPLIES TO AIF TURRETS.
THESE SCOPES SHIP FOR FREE VIA COURIER IF PAYMENT IS MADE WITH EMT!!!
PROFESSIONAL RIFLE TELESCOPES FOR PRECISION MARKSMENTangent Theta is a company comprised of optical designers, mechanical designers, engineers and international-class long range marksmen devoted to creating rifle telescopes of unsurpassed quality and accuracy.
We design, develop and produce rifle telescopes that are beyond reproach in all aspects of design, utility, and service performance. We develop these products for precision marksmen across all markets, including professional marksmen, competitive shooters and recreational hunters/shooters.

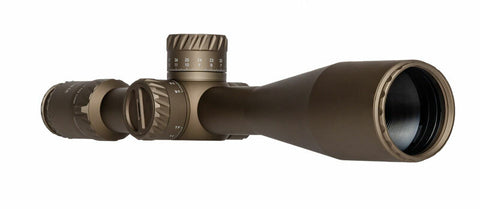

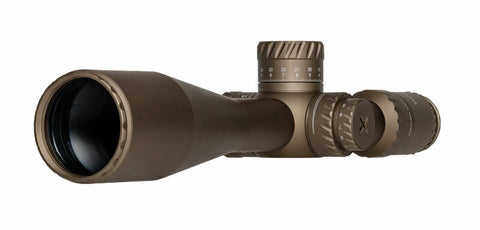

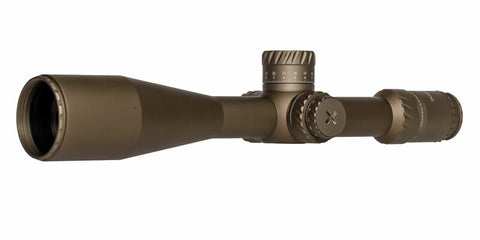

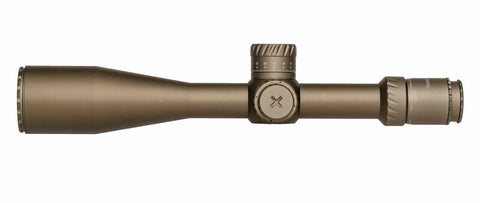

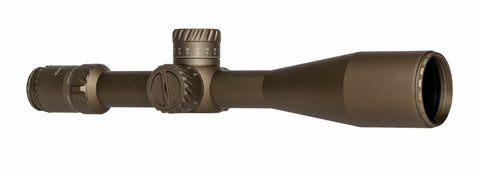

5-25x56mm Model TT525P
Tangent Theta 5-25x56mm model TT525P Rifle Telescope is an extreme-range precision sighting instrument for professional marksmen. Designed for heavy field use, Tangent Theta’s industry-leading development team has used their extensive experience to optimize and refine it for unfailing ruggedness, mechanical precision and unsurpassed image quality. Elevation and windage mechanisms exhibit precise tactile response and feature a truly TOOL-LESS RE-ZERO® procedure.
Tangent Theta rifle telescopes are built in Canada and are specifically designed and function-tested for long lifecycles in the harshest of environmental conditions

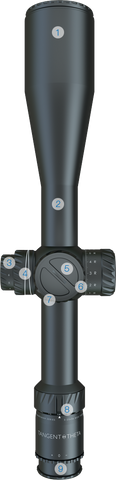

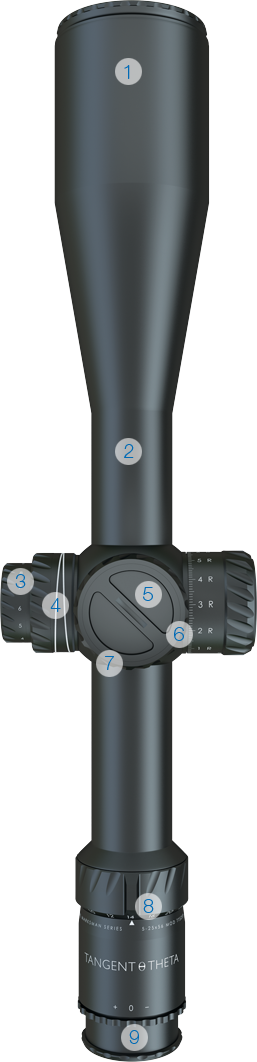

Refer to the numbers on the image to correspond to the features below:
- 56mm objective lens
- 34mm main tube
- eleven reticle illumination settings
- side parallax adjustment
- TOOL-LESS RE-ZERO® feature (patent pending)
- non-translating knobs with elevation zero-stop
- double-turn elevation with rev indicator
- 5-25x magnification range
- lockable rapid adjusting diopter
http://www.tangenttheta.com/sites/default/files/test2.mp4
SPECIFICATIONS
5-25x56mm model TT525P
| Magnification | 5x-25x |
| Length | 425mm |
| Width | 103mm |
| Height | 86mm |
| Weight | 1150g |
| Tube diameter | 34mm |
| Objective bell diameter | 65mm |
| Objective lens diameter | 56mm nominal |
| Eyepiece diameter | 45mm |

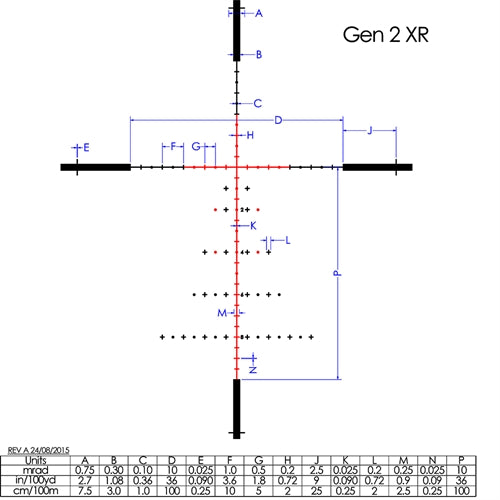

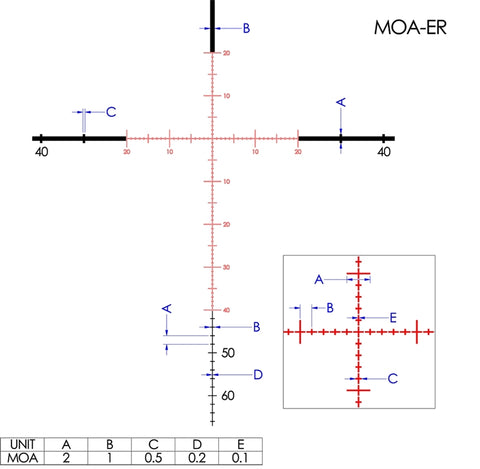

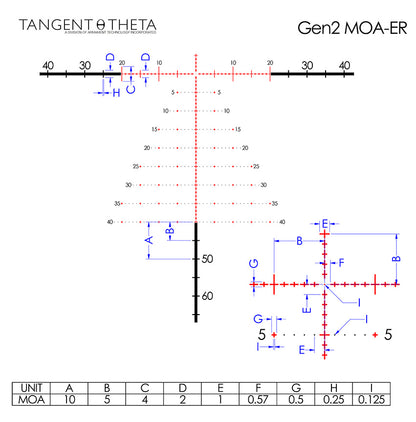

| Reticle options | Gen 2XR, MoA |
| Field of View @ 5x | 4.3 degrees (7.6m @ 100m) |
| Field of View @ 25x | 0.9 degrees (1.6m @ 100m) |
| Diopter range | -3 to +2.5 |
| Eye relief | 90mm |
| Exit pupil @ 5x | 11mm |
| Exit pupil @ 25x | 2.3mm |
| Re-zero mechanism | TOOL-LESS RE-ZERO® (patent pending) |
| Total Adjustment Range | |
| Elevation | 30 mrad (103 MoA) |
| Windage | +/- 10 mrad (+/- 34 MoA) |
| Working Adjustment Range | |
| Elevation | 28 mrad (96 MoA ) |
| Windage | +/- 6 mrad (+/- 20 MoA) |
| Adjustment resolution | 0.1 mrad or 1/4 MoA |
| Parallax adjustment range | 50m to infinity |
| Crosshair illumination | LED, 11 settings |
| Battery type | DL2032 3v lithium |
| Exterior finish | Type II Anodized, matte |
| Environmental | |
| Waterproof: | 4 hours @ 10 meters |
| Shockproof: | 700g’s @ 10,000 cycles |
| Standard accessories: | Tenebraex® lens covers & ARD |
