The Swarovski TLS APO 43mm Digiscoping Lens for ATX/STX spotting scopes is a proprietary adapter used to connect a DSLR camera body with a full-size sensor to the viewing module of of the spotter, effectively using the scope as a lightweight, waterproof, super-telephoto lens. When the TLS APO, T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO has a 43mm lens that perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.
Effective Focal Length
ATX/STX 65: 1,075 - 2,580mm
ATX/STX 85: 1,075 - 2,580mm
ATX/STX 95: 1,290 - 3,010mm
ATS/STS 65: 1,075 - 2,150mm
ATS/STS 80: 1,075 - 2,150mm
Minimum Aperture
ATX/STX 65: 16.5
ATX/STX 85: 12.6
ATX/STX 95: 13.6
ATS/STS 65: 16.5
ATS/STS 80: 13.4
The Swarovski TLS APO 43mm Digiscoping Lens for ATS/STS/ATM/STM/STR spotting scopes is a proprietary adapter used to connect a DSLR camera body with a full-size sensor to the viewing module of of the spotter, effectively using the scope as a lightweight, waterproof, super-telephoto lens. When the TLS APO, T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO has a 43mm lens that perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.
Effective Focal Length
ATX/STX 65: 1,075 - 2,580mm
ATX/STX 85: 1,075 - 2,580mm
ATX/STX 95: 1,290 - 3,010mm
ATS/STS 65: 1,075 - 2,150mm
ATS/STS 80: 1,075 - 2,150mm
Minimum Aperture
ATX/STX 65: 16.5
ATX/STX 85: 12.6
ATX/STX 95: 13.6
ATS/STS 65: 16.5
ATS/STS 80: 13.4

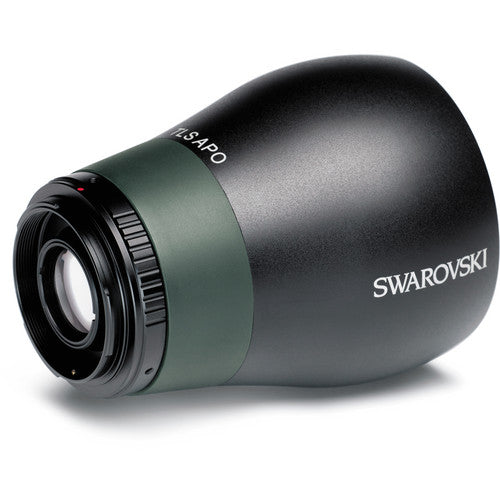

The Swarovski TLS APO 30mm Digiscoping Lensfor ATX / STX spotting scopes is a proprietary adapter used to connect a DSLR or mirrorless camera body with APS-size sensors to the viewing module of ATX / STX series spotting scopes. When the TLS APO, T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO has a 30mm lens that perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.
Compatibility
ATX / STX spotting scopes
DSLR and mirrorless cameras with APS-size sensors
Optical Performance
The apochromatic optics ensure that image quality from your scope will not be degraded by the TLS APO adapter. Capture the same stunning images with your digital camera that you see through the eyepiece
Effective Focal Length
65/85mm objective: 1125-2700mm
95mm objective: 1350-3150
Functionality
Switching between the spotting scope's modular eyepiece and a camera rig is easy due to the slide-down mount system on the adapter sleeve
The Swarovski TLS APO 30mm Digiscoping Lens for ATS / STS / ATM / STM / STR 80 spotting scopes is a proprietary adapter used to connect a DSLR or mirrorless camera body with APS-size sensors to the viewing module of ATS / STS / ATM / STM / STR 80 series spotting scopes. When the TLS APO, T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO has a 30mm lens that perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.
Compatibility
ATS / STS / ATM / STM / STR 80 spotting scopes
DSLR and mirrorless cameras with APS-size sensors
Optical Performance
The apochromatic optics ensure that image quality from your scope will not be degraded by the TLS APO adapter. Capture the same stunning images with your digital camera that you see through the eyepiece
Effective Focal Length
1125-2250mm (with 25-50x eyepiece)
Functionality
Switching between the spotting scope's modular eyepiece and a camera rig is easy due to the slide-down mount system on the adapter sleeve

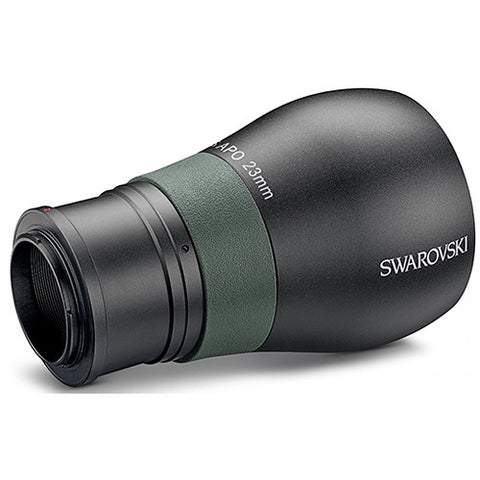

Swarovski Optik's TLS APO 23mm Digiscoping Lens for ATS/STS/ATM/STM/STR spotting scopes makes it easy to use a Swarovski spotting scope as a telephoto lens for a Micro Four Thirds camera, achieving sharp images and video of distant details. Its 23mm apochromatic lens eliminates spherical and chromatic aberrations, so images have true color rendition with zero distortion across the entire frame.
When the TLS APO, a T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO's lens perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.
Compatibility
ATS/STS/ATM/STM/STR spotting scopes
Cameras with Micro Four Thirds sensors
Optical Performance
The apochromatic optics ensure that image quality from your scope will not be degraded by the TLS APO adapter. Capture the same stunning images with your digital camera that you see through the eyepiece
Effective Focal Length
ATS/STS 65 & 80: 1150-2300mm
Functionality
Switching between the spotting scope's modular eyepiece and a camera rig is easy due to the slide-down mount system on the adapter sleeve
Swarovski Optik's TLS APO 23mm Digiscoping Lens for ATX/STX spotting scopes makes it easy to use a Swarovski spotting scope as a telephoto lens for a Micro Four Thirds camera, achieving sharp images and video of distant details. Its 23mm apochromatic lens eliminates spherical and chromatic aberrations, so images have true color rendition with zero distortion across the entire frame.
When the TLS APO, a T2 adapter, and camera body are mounted to the spotting scope eyepiece, users are treated to a truly stunning digiscoping experience. The TLS APO's lens perfectly aligns the camera sensor with the focal plane of the transmitted image. Regardless of the camera used, you will capture contrast-rich and sharp video and still images using the premium optics of your Swarovski spotting scope. A camera and T2 camera adapter are required to complete the Swarovski digiscoping system, and are not included.
Compatibility
ATX/STX spotting scopes
Cameras with Micro Four Thirds sensors
Optical Performance
The apochromatic optics ensure that image quality from your scope will not be degraded by the TLS APO adapter. Capture the same stunning images with your digital camera that you see through the eyepiece
Effective Focal Length
ATX/STX 65 & 85: 1150-2760mm
ATX/STX 95: 1380-3220mm
Functionality
Switching between the spotting scope's modular eyepiece and a camera rig is easy due to the slide-down mount system on the adapter sleeve
Swarovski T2 ADAPTER Overview
The T2 CANON Adapter from Swarovski connects the TLS APO digiscoping adapter to the EF mount of Canon EOS cameras. Using the TLS APO, this adapter enables you to use a Canon camera body to capture the images captured by an ATX/STX or ATS/STS series spotting scope.
Compatible with TLS APO digiscoping adapter.
The T2 NIKON F Camera Adapter for TLS APO from Swarovski is a required accessory for converting an ATX/STX, ATS/STS, or ATM/STM series spotting scope into a formidable digiscoping system. The T2 connects to a Nikon bayonet mount, then attaches to the TLS APO digiscoping adapter that mounts to the spotting scope viewing assembly.
Specifically engineered for the Nikon bayonet mount.
Connects mirrorless or DLSR camera body to the TLS APO digiscoping adapter.
The T2 MICRO 4/3 Camera Adapter for TLS APO from Swarovski is a required accessory for converting an ATX/STX, ATS/STS, or ATM/STM series spotting scope into a formidable digiscoping system. The T2 connects to a micro 4/3 bayonet mount, then attaches to the TLS APO digiscoping adapter that mounts to the spotting scope viewing assembly.
Specifically engineered for the micro 4/3 bayonet mount.
Connects mirrorless or DLSR camera body to the TLS APO digiscoping adapter.
