WE HAVE ATX EYEPIECES AND 115mm OBJECTIVE LENSES IN STOCK, READY TO SHIP SAME DAY FOR FREE VIA COURIER!!!
SOME OTHER ITEMS MIGHT BE BACKORDERED - PLEASE JUST CONTACT US ABOUT AVAILABILITY BEFORE PLACING YOUR ORDER!!

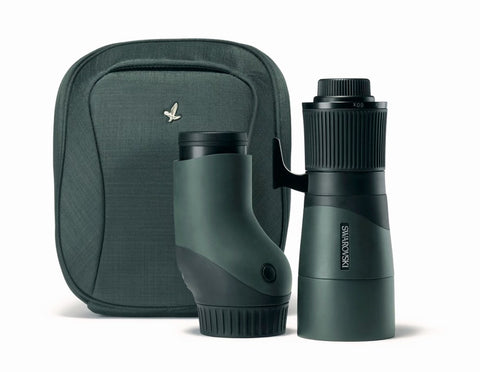

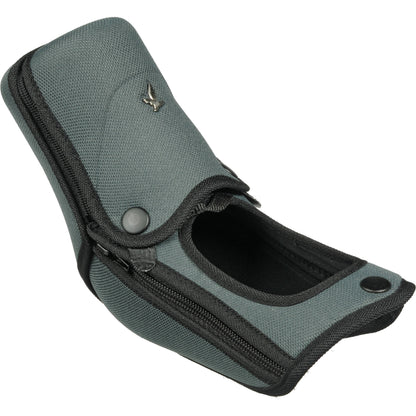

NOTE: The ATX or STX eyepiece combined with the 65mm Objective Lens, fits nicely side-by-side in the Field Bag Pro XL binocular case. The BTX Eyepiece also fits inside the Field Bag Pro binocular case.

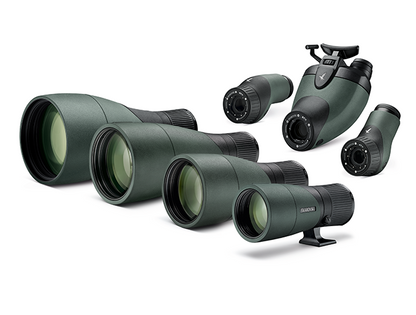

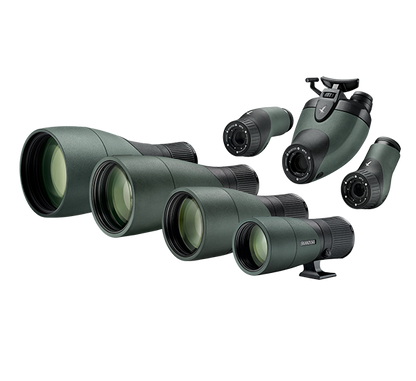

Swarovski ATX Overview

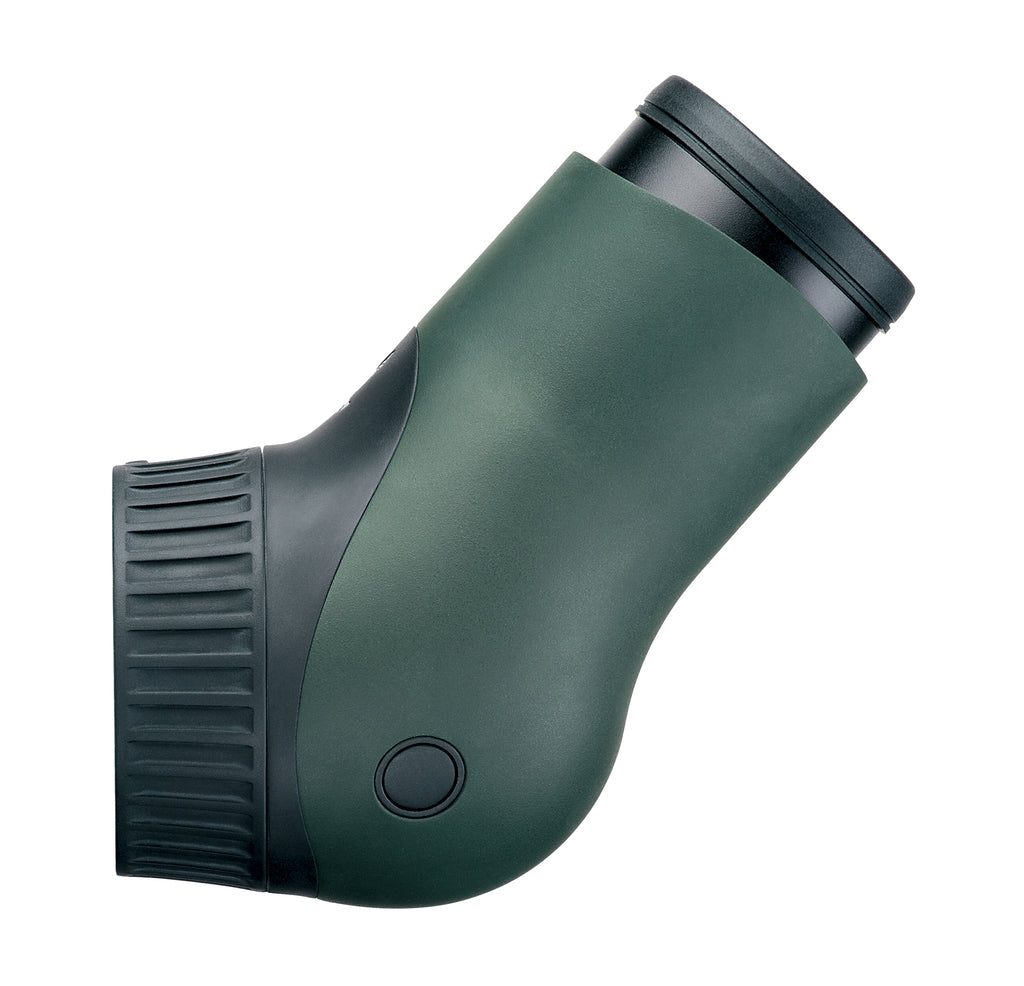

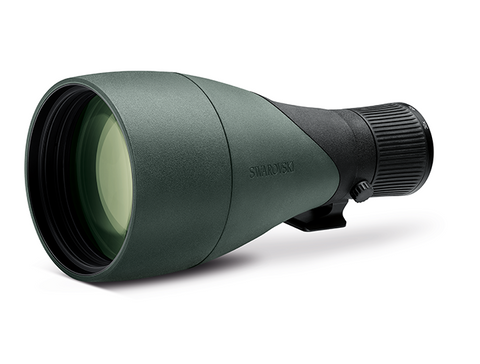

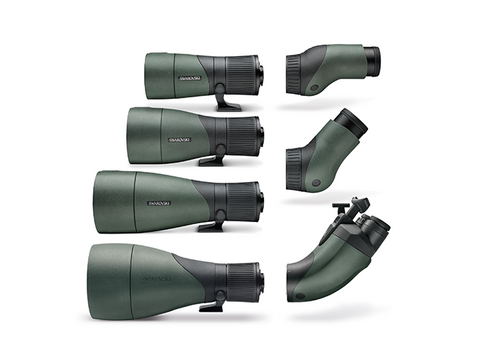

The ATX Spotting Scope Modular Zoom Eyepiece (Angled Viewing) from Swarovski is a wide angle eyepiece specifically engineered for the ATX spotting scope series. The angled-view configuration is well-suited for digiscoping and long-duration observation with your premium Swarovski optics. This eyepiece is compatible with the ATX-65, ATX-85, ATX-95 and ATX-115 objective assemblies. Mounted with either the ATX-65 or ATX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60x; when mounted on the ATX-95 and ATX-115 models, the magnification range is 30-70x.
Swarovski STX Overview

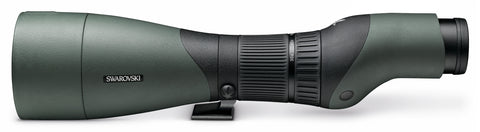

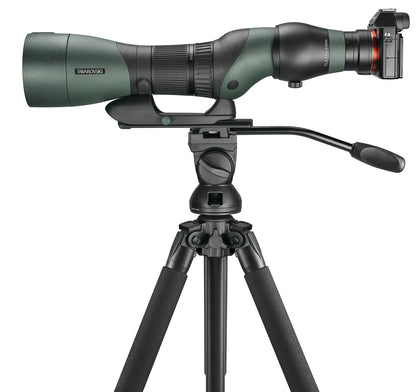

The STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing) from Swarovski is a wide angle eyepiece specifically engineered for the STX spotting scope series. The straight-view configuration is well-suited for digiscoping and long-duration observation with your premium Swarovski optics. This eyepiece is compatible with the STX-65, STX-85, STX-95 and STX-115 objective assemblies. Mounted with either the STX-65 or STX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60x; when mounted on the STX-95 and STX-115 models, the magnification range is 30-70x.

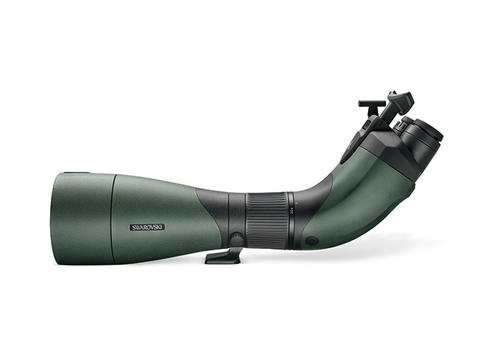

Swarovski BTX Overview

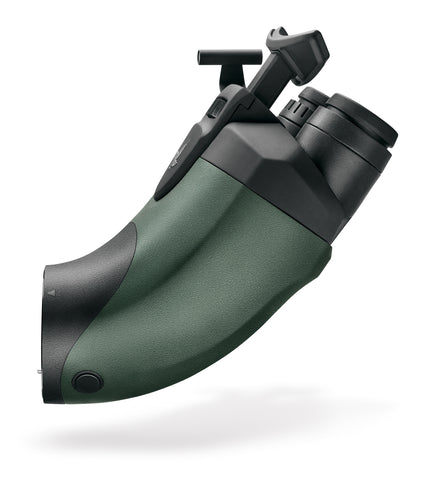

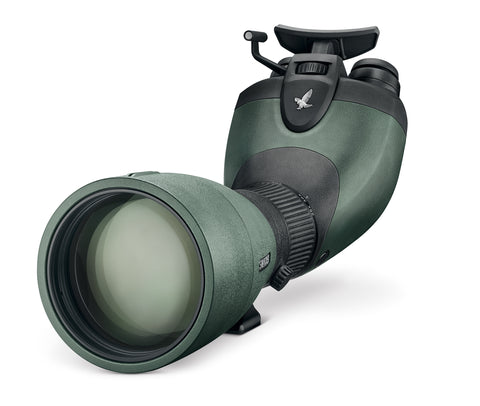

Fully compatible with all versions of their ATX and STX spotting scope systems, Swarovski Optik's BTX 30x/35x Eyepiece Module represents the pinnacle of comfort for long-duration glassing sessions. The innovative design replaces the conventional single eyepiece with a dual-eyepiece binocular configuration that enables users to view with both eyes open, and with the eyepieces set at a 45° angle to the optical tube, their head is put in a natural viewing position. When mounted on the 65mm and 85mm models it has a 30x magnification, whereas the 95mm and 115mm versions are stepped up to 35x. Both models have a 63° wide apparent angle of view. To match the performance of the objective modules, this eyepiece module has the SWAROVISION system to improve color fidelity, contrast, and clarity; and SWAROCLEAN coatings help keep the lenses clear and easy to clean.

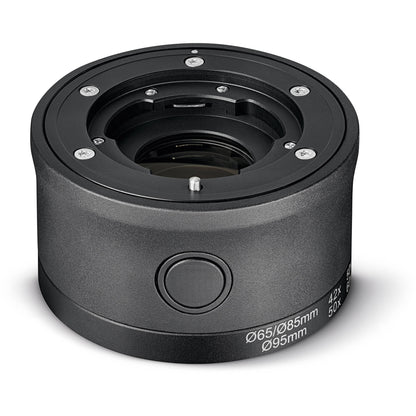

Swarovski ME 1.7x Magnification Extender Overview
Use the Swarovski Optik 1.7x Magnification Extender to increase the magnification of your ATX, STX, or BTX family of modular spotting scope systems without affecting the functionality in any way. This accessory simply installs with a simple twist between the objective and eyepiece modules using a simple bayonet mount.
Specs for ATX and STX Modules:
- 65mm and 85mm-Objective Models: Increases low magnification from 25x to 42x, and high 60x to 100x
- 95mm and 115mm-Objective Models: Increases low magnification from 30x to 50x, and high from 70x to 120x
- Specs for BTX Module:
- 65mm and 85mm-Objective Models: Increases magnification from 30x to 50x
- 95mm and 115mm-Objective Models: Increases magnification from 35x to 60x
