RUSAN Modular Adapters/Connectors for Thermal and Night Vision Devices

RUSAN Modular Adapters/Connectors for Thermal and Night Vision Devices

SKU:MS-OK2.5x

Regular price $225.00 CAD
Regular price Sale price $225.00 CAD
Sale Sold out
Shipping calculated at checkout.
Style
View full details

ALL PRODUCTS THAT SHOW "ADD TO CART" ARE IN STOCK, AND WILL SHIP SAME DAY.

IF AN ITEM SHOWS "SOLD OUT", PLEASE CONTACT US SO WE CAN ORDER IT FOR YOU. WE NEED TO MANUALLY PLACE THIS ORDER FOR YOU.

All special orders - delivery time is normally around 3-4 weeks from order date!!

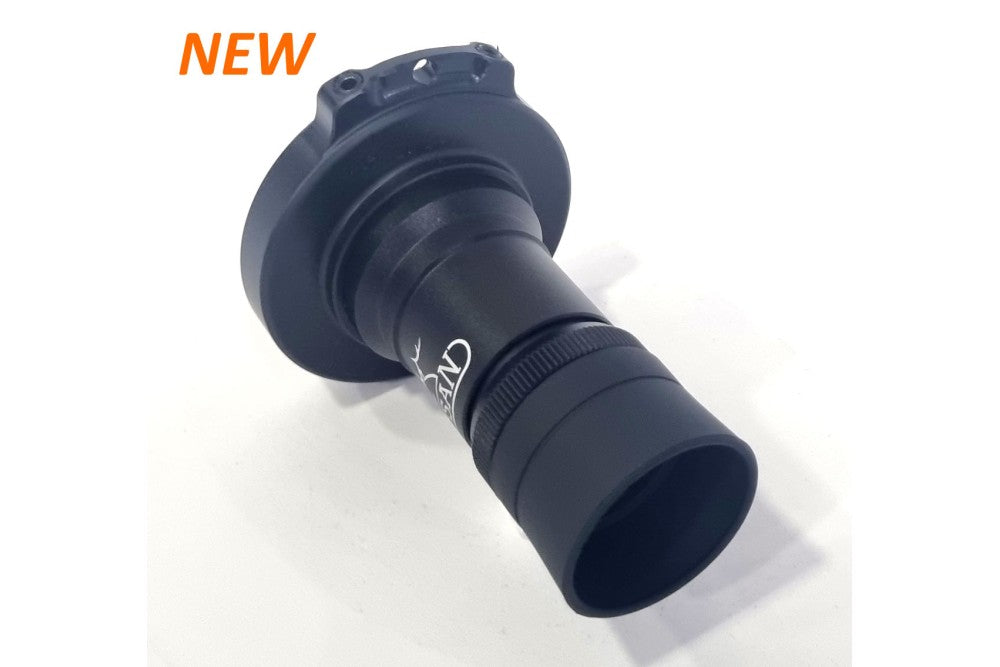

2.5x MONOCULAR:

RUSAN of Croatia now make an incredible 2.5x Monocular to attach to most thermal imaging devices. The 2.5x Magnification Ocular already includes an adapter to use with Rusan's Modular Connectors - these are unit specific and come in various sizes - see options on the drop-down.

Other than the 2.5x Magnification Ocular with included Adapter, you would need the correct Modular Connector with the corresponding thread size for your thermal imaging unit.

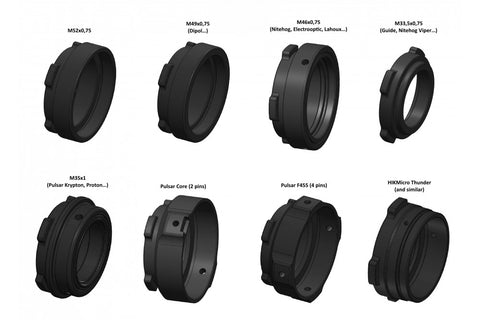

CONNECTORS FOR VARIOUS BRANDS:

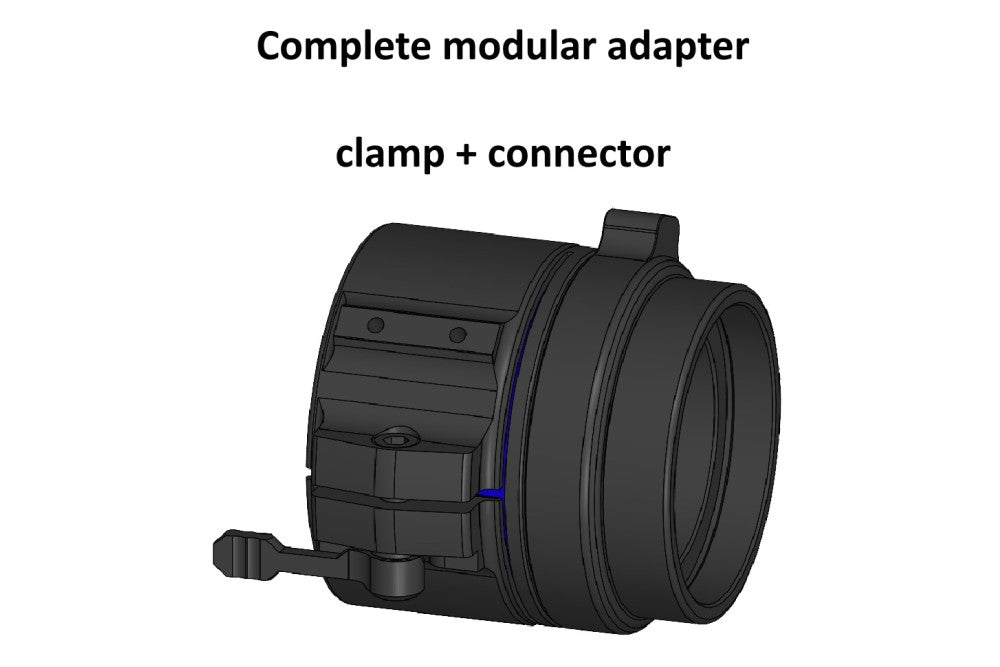

These connectors are used with the RUSAN MAR Connector required to mount the appropriate thermal imaging or night vision device.

Please select the appropriate connector from the menu.

THESE ARE THE MOST POPULAR CONNECTORS FOR USE WITH Quick Detach MODULAR ADAPTERS (as eg. MAR-30):

MS-AM52:    RUSAN Modular Adapters/Connectors for Thermal and Night Vision Devices (eg Infiray Monoculars)

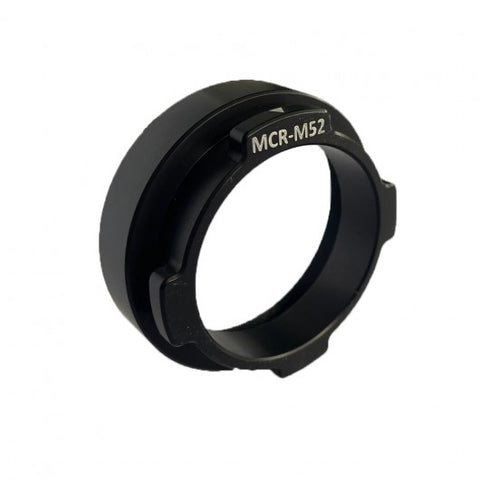

MCR-M52:    Infiray MATE MAH-50 and others with 52mm thread

MCR-M52P: Infiray MATE MAH-50 and others with 52mm thread (These connectors have a built-in system for orientation (rotation) of the device, so no need for a counter-nut.)

MCR-M43P: EAW FOKUS-50 and others with 43mm thread (These connectors have a built-in system for orientation (rotation) of the device, so no need for a counter-nut.)

MCR-FT32:  PARD FT32/FT34 Adapter (Same adapter for FT32/FT34)

MAR-M52:  This adapter CONVERTS ARM52-xx to MAR-xx. Meaning you can now convert your screw-in ARM52-xx connector to a quick detach MAR-xx style.

***NOTE***

If your clip-on device does not have it's own counter nut, you need to buy a counter nut in appropriate thread size, except for these connectors:

MCR-M46:    M46x0.75

MCR-M43:    M43x0.75

MCR-M35:    M35x1

MCR-M36:    M36x1

MCR-TM35:  Swarovski tM35

These above connectors already have a built-in system for orientation of the device, so no need for a counter-nut.

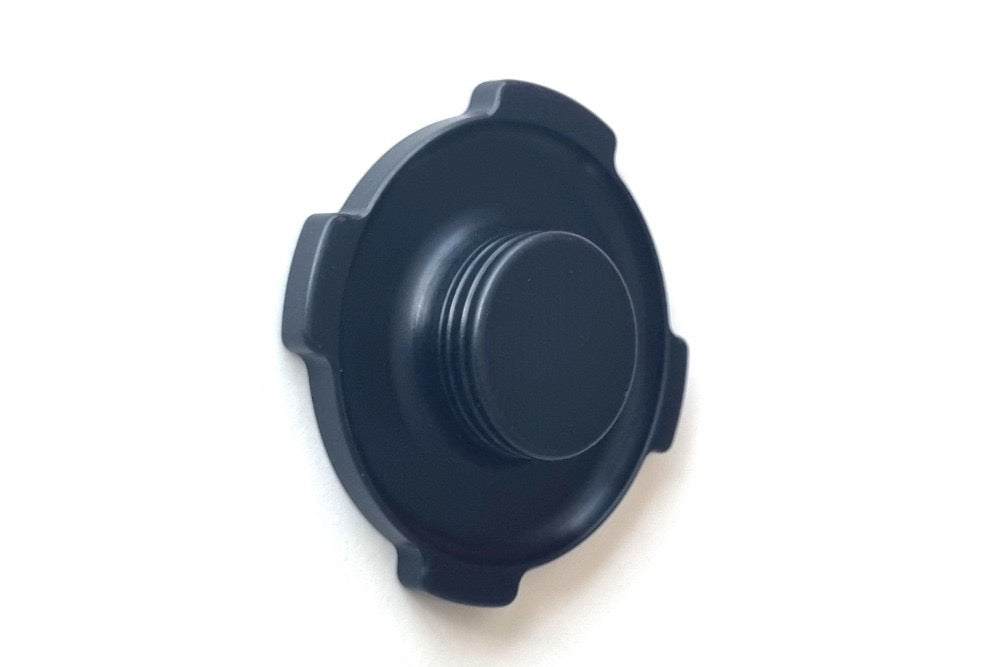

We can also order covers for these connectors, which keep the lenses of the thermal device safe and clean when the device is not in use.

For all connectors, the appropriate cover is MS-CON, except for connector MCR-M35 (Pulsar Krypton, Proton) which needs special cover MS-CON-M35.

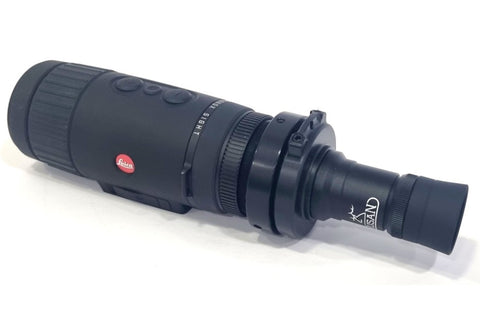

Here's a short VIDEO showing how the 2.5x Ocular attaches to a Leica Calonox Sight unit:
