Shooting Warehouse Sport Optics

PULSAR ORYX LRF XG35 Compact Thermal Monocular

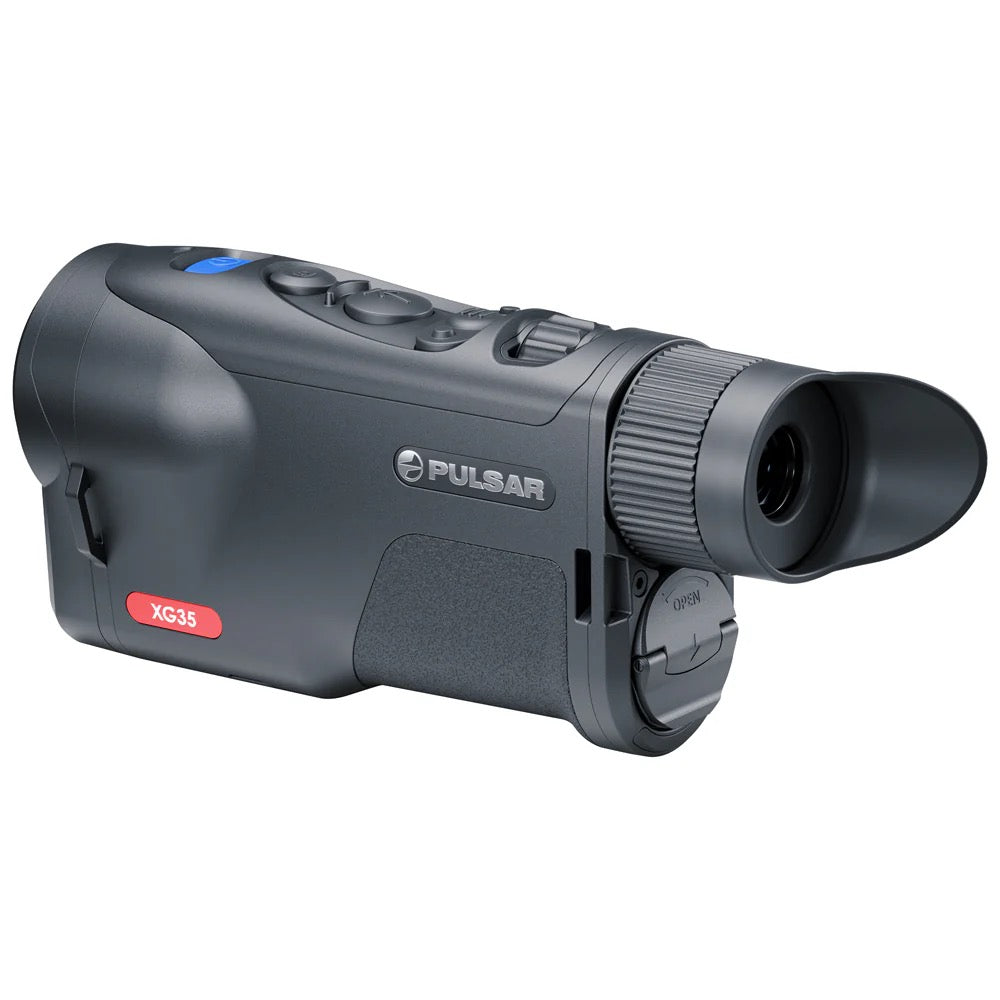

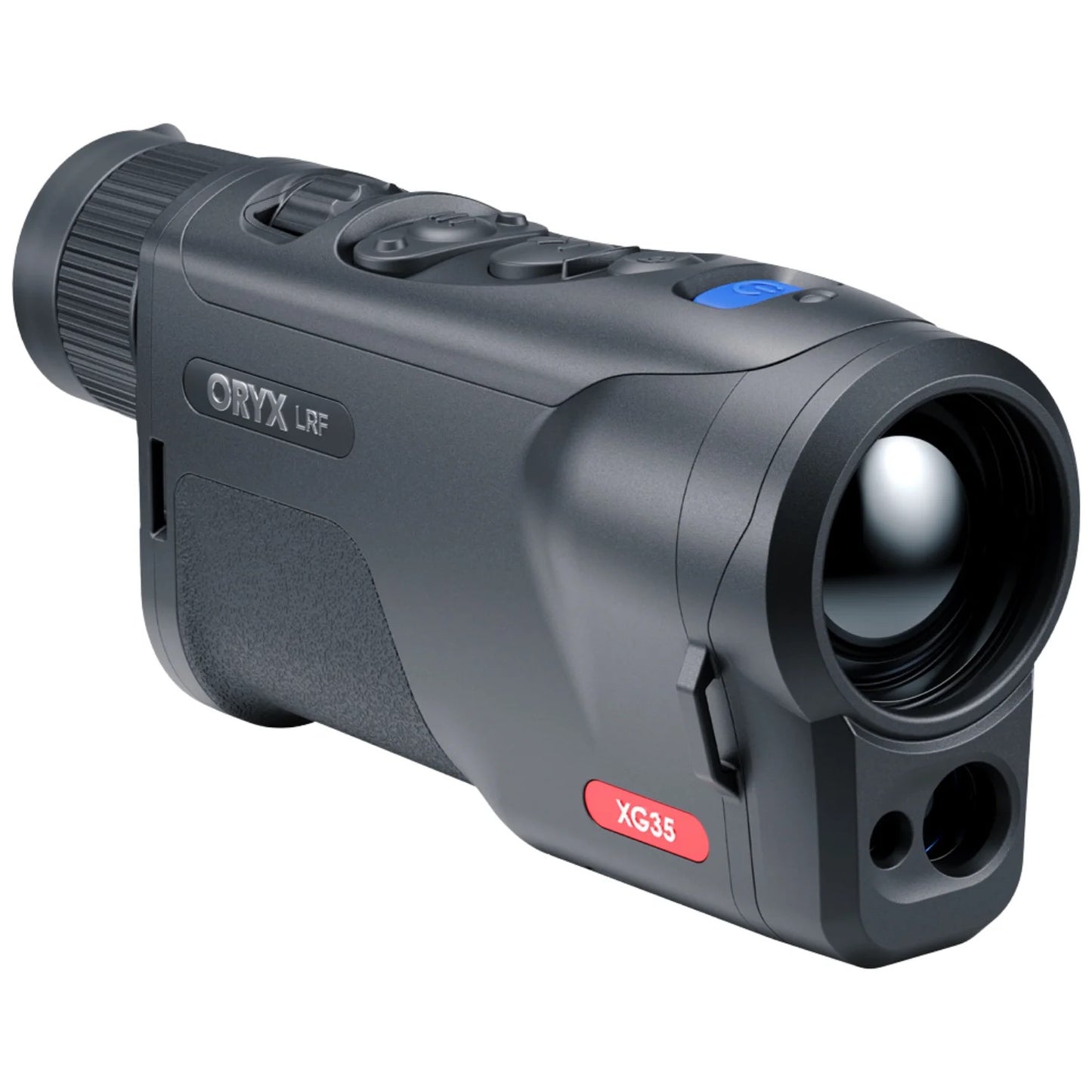

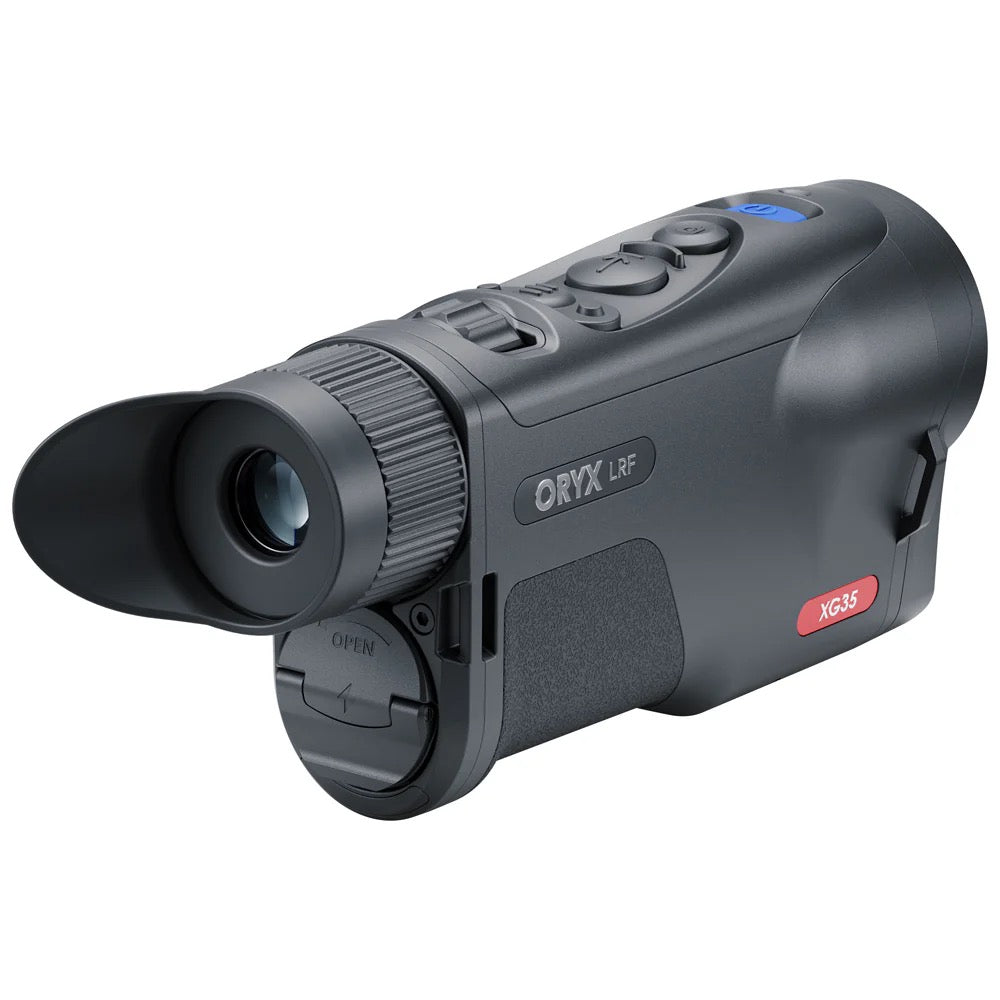

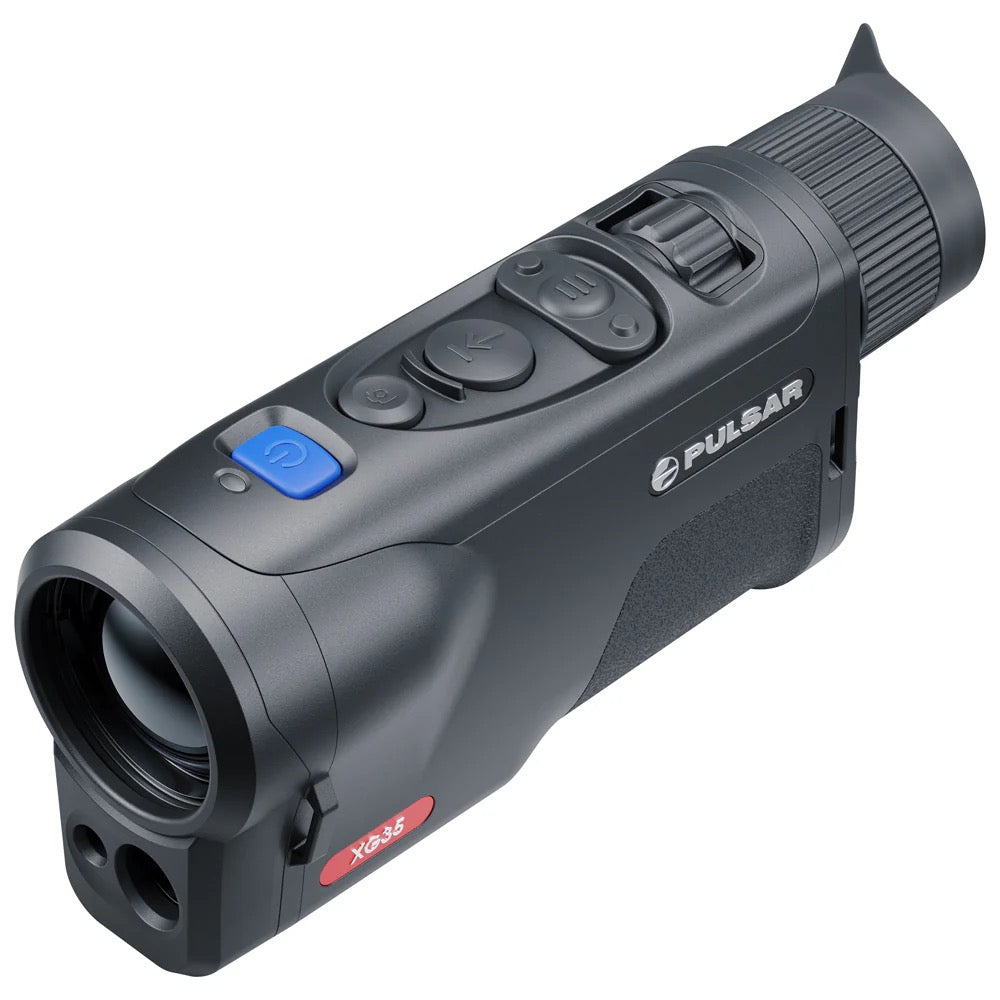

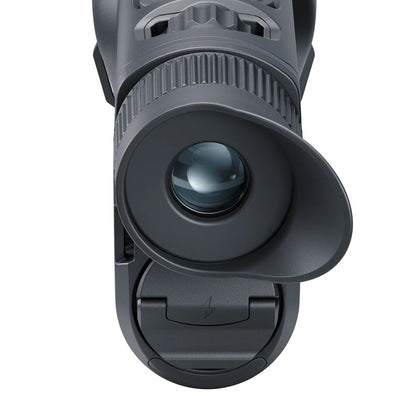

Name: PULSAR ORYX LRF XG35 Compact Thermal Monocular
Brand: Shooting Warehouse Sport Optics
SKU: PL77504
Price: 3809.00 CAD
Availability: InStock

SKU:PL77504

$3,809.00 CAD

Sale Sold out

Shipping calculated at checkout.

Quantity

View full details

THESE ARE 7-10 Days to Order

Oryx LRF XG35 Thermal Monocular

The Oryx is designed for constant, often hard use. Its magnesium alloy housing is light and strong at the same time. The housing reliably protects the internal components of a thermal imaging device from shocks, drops, moisture, heat or cold. At the same time, its metal housing effectively removes the heat from electronics, minimizes image noise and increases consistency of the device operation during long-term observation.

The Oryx LRF XG35 offers fully adjustable brightness and contrast settings, allowing users to fine-tune their viewing experience. A convenient quick-access menu provides seamless control over frequently used features, making on-the-go adjustments fast and intuitive. Whether navigating dense forests or open fields, this thermal monocular adapts to your needs.

Designed for convenience, the Oryx LRF XG35 features a built-in tripod socket for stable hands-free operation. A clip mount option allows users to secure the device to their gear or clothing, providing quick access when needed. Its compact and lightweight design ensures comfortable extended use in the field.

Battery Life & Power Options

Powered by a removable APS5 Li-Ion battery pack (4900 mAh), the Oryx LRF XG35 provides up to 12 hours of continuous operation. For extended use, the device supports USB Type-C external power delivery, ensuring uninterrupted performance during long hunting trips, tactical missions, or surveillance operations.

Variable Magnification

Featuring a powerful 2.5x to 20x digital zoom, the Oryx LRF XG35 delivers exceptional clarity for both short- and long-range observations. The 35mm F1.0 lens provides a broad field of view (12.5°), enhancing target acquisition and situational awareness. Its high-resolution 1024x768 AMOLED display ensures crisp thermal imaging, even in extreme conditions.

A Selection Of 8 Color Palettes

A choice of 8 color palettes allows the user to optimize the unit for specific tasks as well as react to changing observation conditions. White Hot, Black Hot and Red Hot are optimal for object detection, Rainbow and Ultramarine help increase chances for recognition & identification, while Red Monochrome, Sepia and Violet are most suitable for long observation in the night.

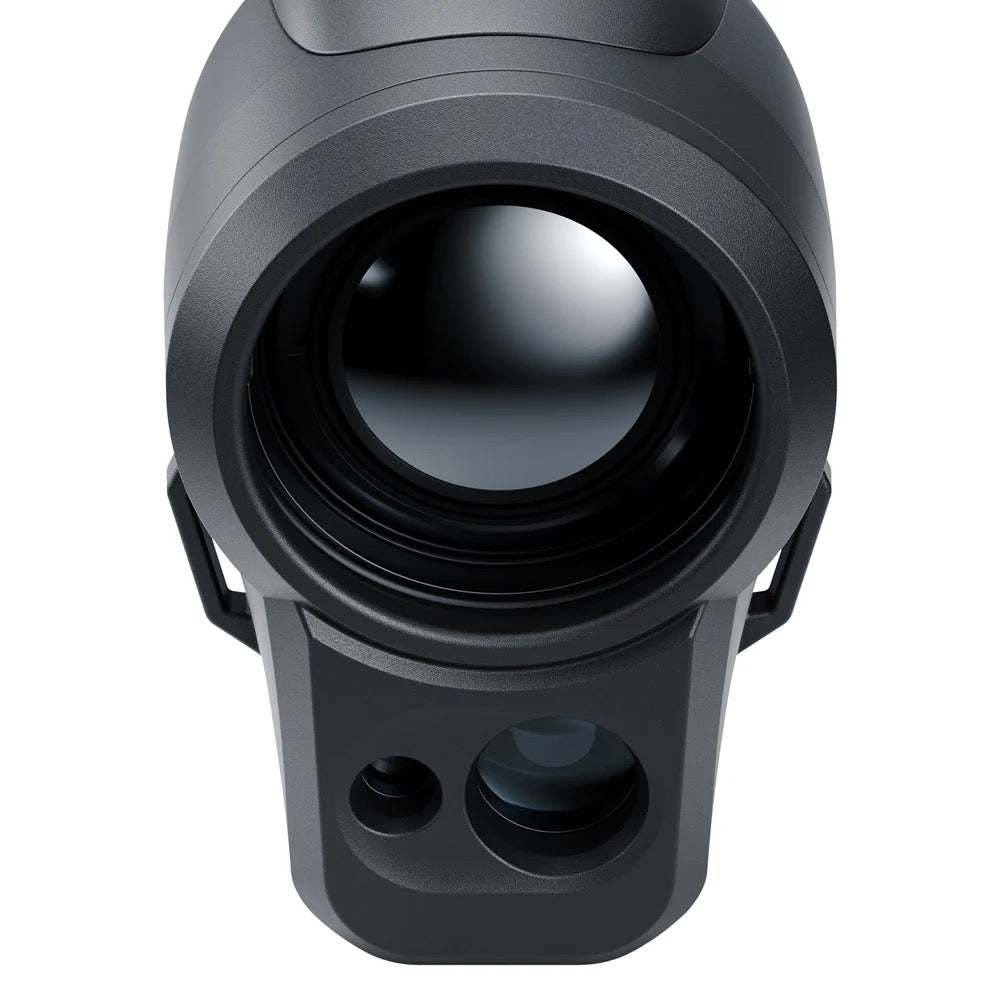

Long Range Laser Rangefinder (LRF)

The Oryx LRF XG35 is equipped with an integrated laser rangefinder that provides precise distance measurements up to 1640 yards (1500 meters). This feature is ideal for hunters, law enforcement, and search and rescue teams who need reliable ranging in low-visibility environments. The SCAN mode allows continuous distance tracking, ensuring accurate measurements for moving targets.

Stream Vision 2 App Support For IOS And Android

The built-in Wi-Fi module connects the device with either Android or iOS smartphones using the Stream Vision 2 mobile application. This combination opens up a wide range of options: wireless device software updates, real-time image transmission to the mobile device screen, remote control digital functions and much more. Users registered in the application are provided with cloud storage space for photos and videos taken with the device.

High-Contrast AMOLED Display

A high-contrast AMOLED display has an improved colour rendering, power saving and quick-response, providing sharp and smooth images observing even under frosty conditions.

Weather Resistance & Durability

Built to withstand the elements, the Oryx LRF XG35 is IP67 rated, making it completely dustproof and capable of withstanding water immersion up to 3 feet for 30 minutes. Designed for rugged environments, it functions reliably in temperatures ranging from -25°C to +40°C (-13°F to +104°F), ensuring peak performance in all conditions.

Oryx LRF XG35 Thermal Monocular SPECIFICATIONS:

Main

Sensor640x480 pix. @ 12 µm (sNETD <20 mK)
Objective lensF35/1.0
Magnification, x2.5 - 20
Field of view (HxV), degrees12.5
Detection range, yds1950+

Sensor

Typeuncooled
Resolution, pixels640x480
Pixel pitch, µm12
NETD, mK<40
Frame rate, Hz50
sNETD, mK<20

Optics

Objective lensF35/1.0
Magnification, x2.5-20x
Field of view (HxV), degrees12.5
Eye relief, mmN/A

Display

TypeAMOLED
Resolution, pixels1024x768

Range Performance

Detection range, yds1950+

Video Recorder

Video / photo resolution, pixel960x600
Video / photo format.mp4 / .jpg
Built-in memory, GB64

Wi-Fi

Wireless ProtocolWi-Fi
Wireless StandardIEEE 802.11 b/g/n/ac (WPA)
Frequency, GHz2.4 / 5

Environmental Characteristics

Degree of protection, IP code (IEC60529)IP67 (fully waterproof, shockproof, dustproof)
Operating temperature range, °F-13 - +104

Connections and Compatibilities

Mount, type1/4"
Supported ApplicationStream Vision 2

Power Supply

Output voltage, V3.0 – 4.2
Battery typeLi-Ion Battery APS 3 (Internal)
Capacity, mAh4900 mAh
Operating time on battery pack (at t=22°C), h *12
External power supply, VAPS 5

Weight & Size

Body materialMagnesium alloy
Dimensions, in7x2x3
Weight, oz17.64 (with battery)

Trade Data

SKU (Model #)PL77504

PULSAR ORYX LRF XG35 Compact Thermal Monocular
