PULSAR MERGER LRF XP35 Thermal Imaging Binoculars
The Merger LRF represents our classic thermal imaging binocular design with an integrated laser rangefinder.
These binoculars are remarkably ergonomic and comfortable. They allow for two-eye observation and reduce eye fatigue. They are equipped with top-tier components that exemplify European quality.
The Merger LRF series offers a wide range of European-made sensors tailored to various user needs, in the following models:
- The compact Merger LRF XQ35 is perfect for those who are constantly on the move.
- The highly sensitive Merger LRF XP50 excels in any weather conditions.
- The smaller Merger LRF XP35 offers its class’s widest field of view at 17.8°.
- The Merger LRF XL50 provides HD thermal resolution, delivering detailed images even at high zoom levels.
VIDEO COMPARISON BETWEEN XQ35 / XP50 / XL50
Video courtesy of Thomas Jacks Limited

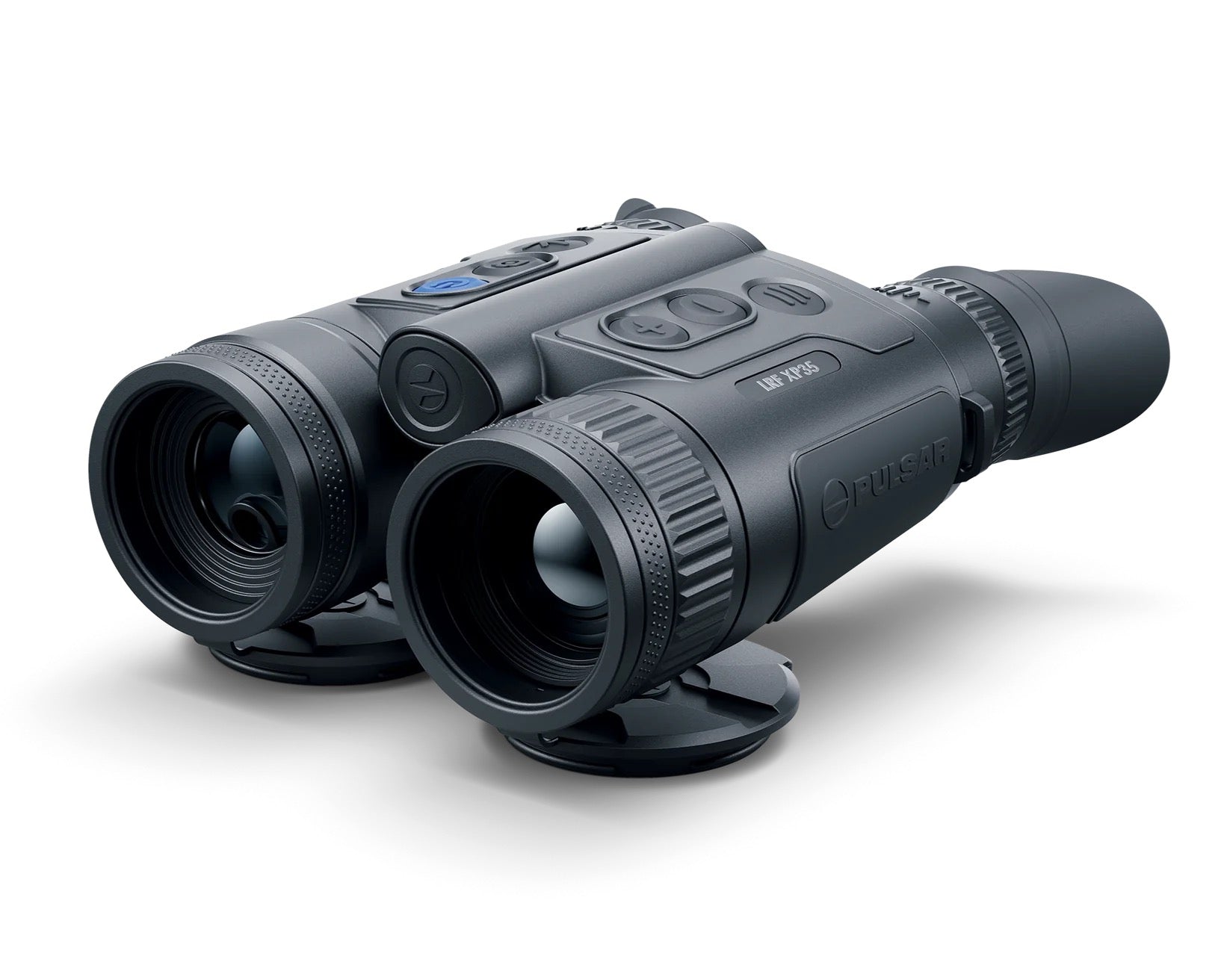

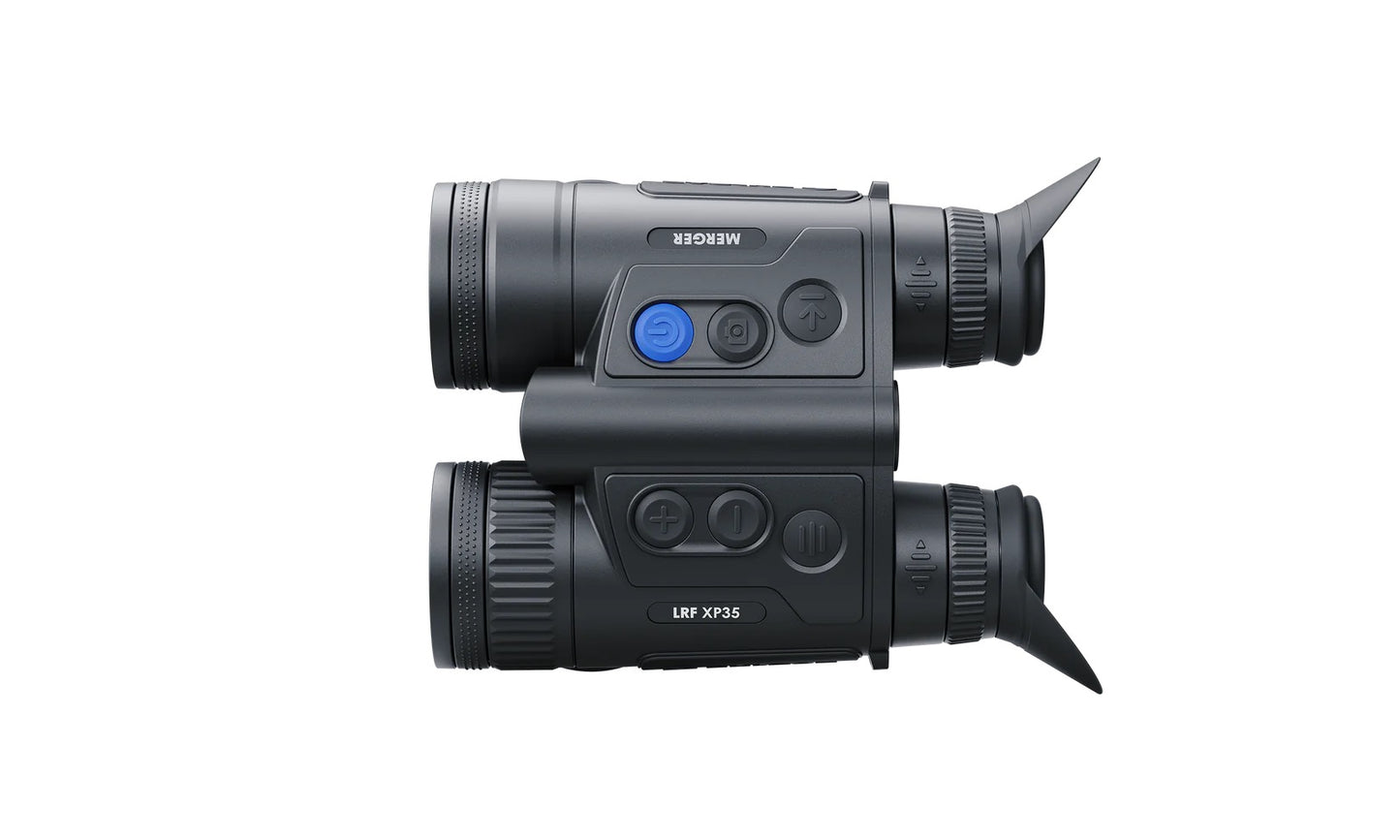

PULSAR MERGER LRF XP35
The Pulsar Merger LRF XP35 Binoculars feature the classic external design of daytime binoculars, providing comfortable viewing with both eyes. Whether used during the day or at night, these binoculars offer exceptional image quality even in adverse weather conditions and situations where obstacles may hinder target detection. Thanks to their built-in laser rangefinder, which can accurately measure distances up to 1000 m (± 1 m), these binoculars are ideal for activities like night hunting, observation, trail orientation, identifying hazards, and rescue operations. They do not require an external light source and are unaffected by bright light exposure.
Features
- Built-in precise laser rangefinder. Measuring range up to 1000m
- Comfort of observation with two eyes
- Built-in photo and video recorder with 16GB of internal memory
- Stream Vision 2. Wi-Fi integration with iOS and Android devices
- 3 levels of sensitivity amplification
- Dual battery system. Up to 9 hours of continuous operation
- High-contrast HD AMOLED displays
- A selection of 8 palettes
- Rugged magnesium alloy housing
- IPX& Waterproof rated
- Proximity sensor for covert use
- Wide range of operating temperatures
Specifications
| Model | LRF XP35 |
| SKU | 77484 |
| Microbolometer | |
| Type | uncooled |
| Resolution, pixels | 640×480 |
| Pixel Pitch, µm | 17 |
| NETD, mK | < 25 |
| Frame rate, Hz | 50 |
| Optical Characteristics | |
| Lens, mm | F35 F/1.0 |
| Continuous digital zoom, x | 2-16 |
| Digital zoom | 2x/4x/8x |
| Minimum Focus Distance, m/y | 5 / 5.47 |
| Eye relief, mm/inch | 15 / 0.59 |
| Exit pupil diameter, mm | 3.5 |
| Field of view (HxV), degrees / m@100m | 17.8 / 31.3 |
| Diopter adjustment, D | -5/+4 |
| Interpupillary distance adjustment, mm | 63-74 |
| Range of detection (deer type object), m/y | 1350 / 1476 |
| Display | |
| Type | AMOLED |
| Resolution, pixels | 1024х768 |
| Operational Characteristics | |
| Power supply, V | 3.7 |
| Battery type / Capacity / Output voltage | Li-Ion Battery Pack APS3 / 3200 mAh / DC 3.7 V (removable)
Li-Ion Battery Pack / 4000 mAh / DC 3.7 V (built-in) |
| External power supply | 5V |
| Operating time on Battery Pack (at t=22°C), h* | 9 |
| Degree of protection, IP code (IEC60529) | IPХ7 |
| Operating temperature range, °С /° F | -25 … +50 / -13 … 122 |
| Dimensions, mm / inch | 165x131x68 / 6.5×5.16×2.68 |
| Weight (with battery), kg / oz | 0.83 / 29.3 |
| Video Recorder | |
| Video / photo resolution, pixel | 1024х768 |
| Video / photo format | .mp4 / .jpg |
| Built-in memory | 16 Gb |
| Wi-Fi Channel** | |
| Frequency | 2.4/5 GHz |
| Standard | IEEE 802.11 b/g/n/ac |
| Characteristics of the Rangefinder | |
| Wavelength, nm | 905 |
| Max. measuring range***, m/y | 1000 / 1094 |
| Measurement accuracy, m | +/-1 |
*Actual operating time depends on the extent of using Wi-Fi, integrated video recorder and integrated laser rangefinder.
**The reception range may vary depending on various factors: obstacles, other Wi-Fi networks.
***Depends on the characteristics of the object under observation and environmental conditions.
