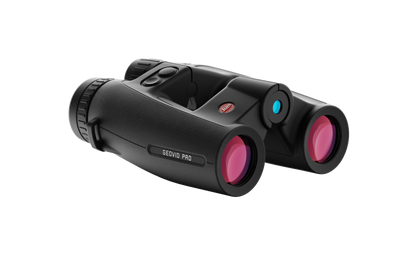

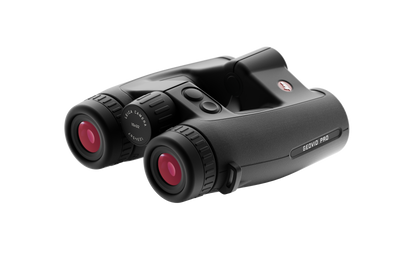

Leica GEOVID PRO 32 now also available in GREEN!!!
ALL the Geovid Pro 8x32 and 10x32 units are about a 10-14 business day delay to ship out as we don't keep ALL versions in stock.

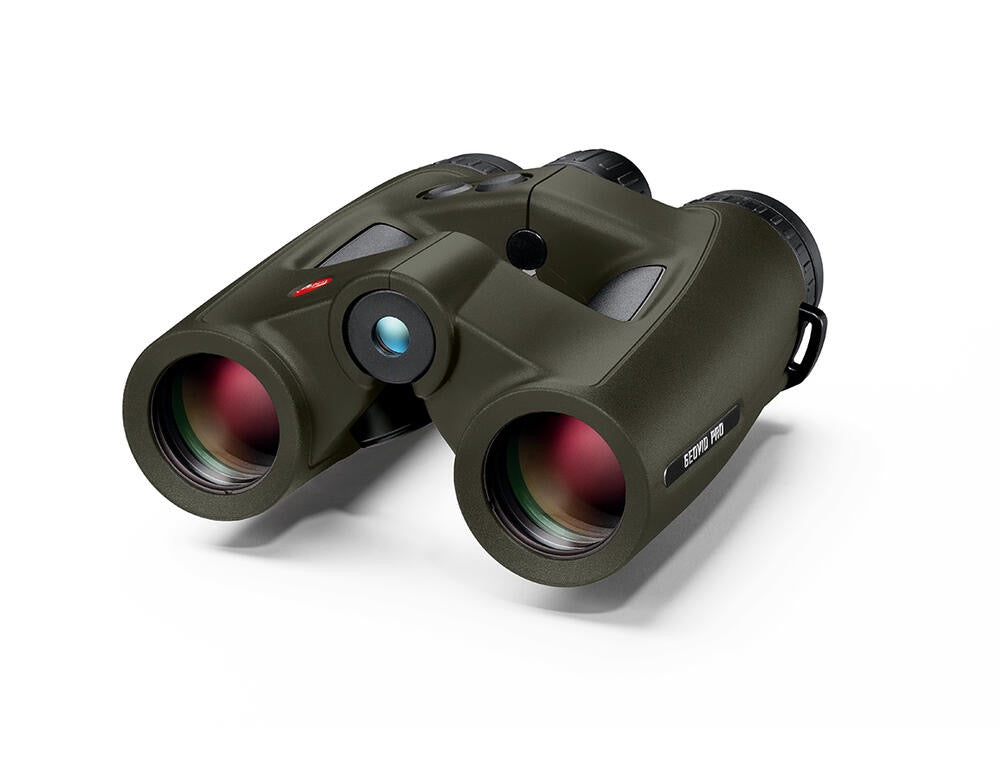

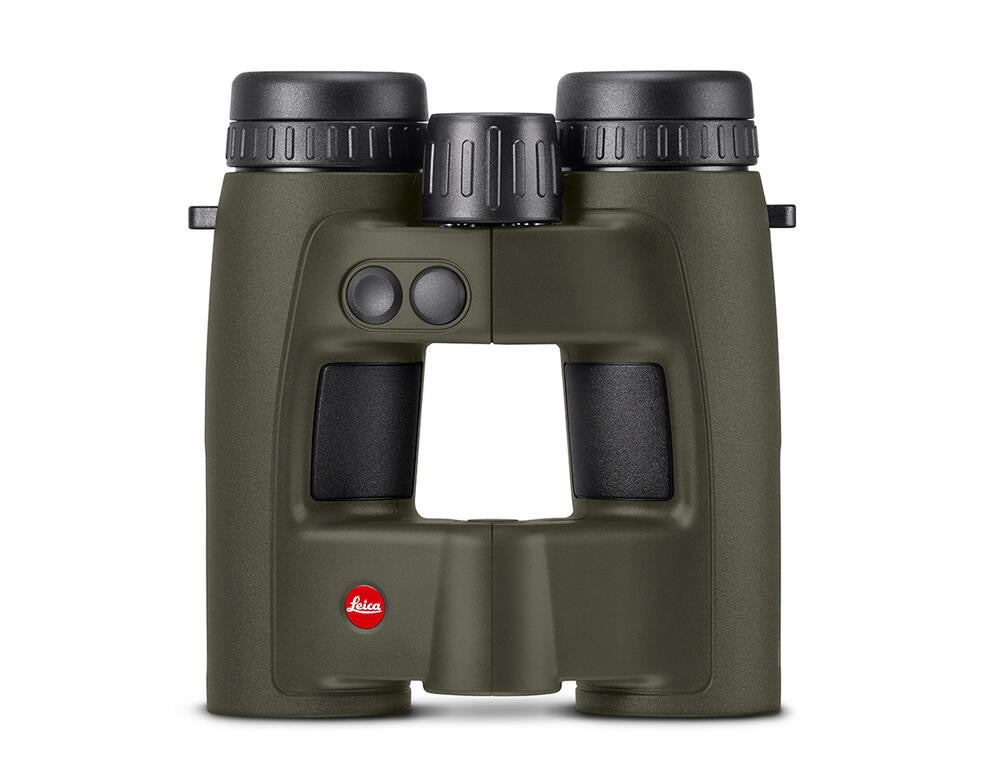

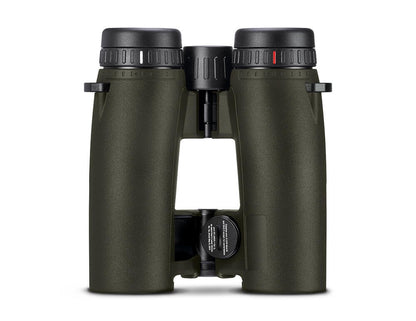

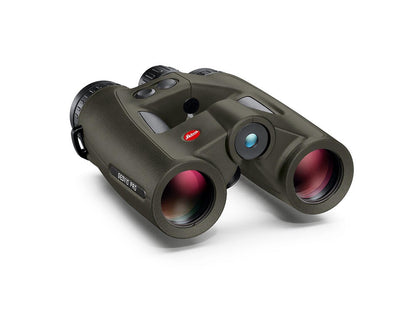

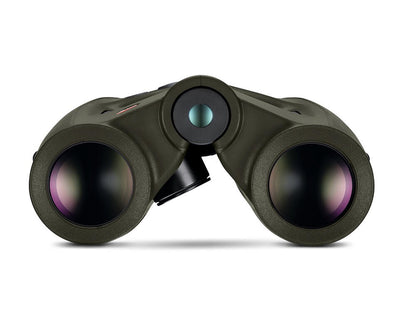

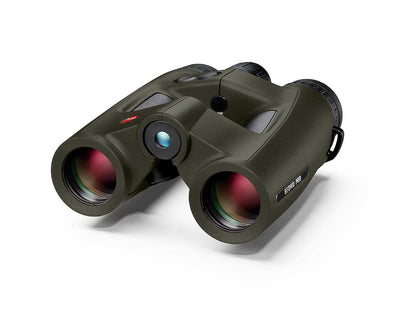

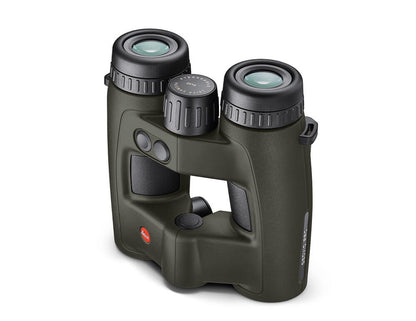

Leica recently added GREEN colour to the Geovid PRO 32 rangefinding binoculars.
They are available in 8x32 and 10x32 version, and include several new features - most important of all, ONBOARD Applied Ballistics - so no more Kestrel units needed to get the AB solutions.

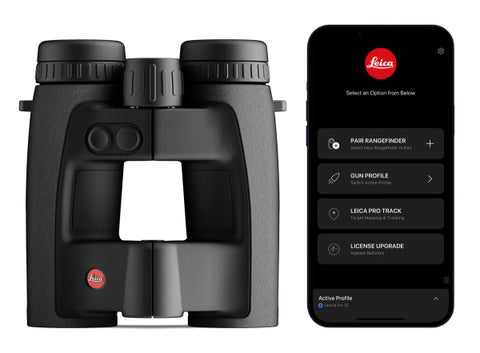

GPS Mapping Integration through Leica PROTRACK works with BaseMaps, Google Maps and Garmin Maps. Use the map of your choice on a SmartPhone, even without cell signal!!!

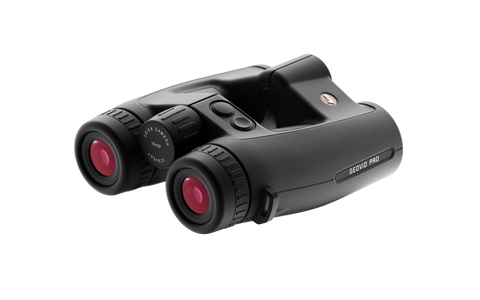

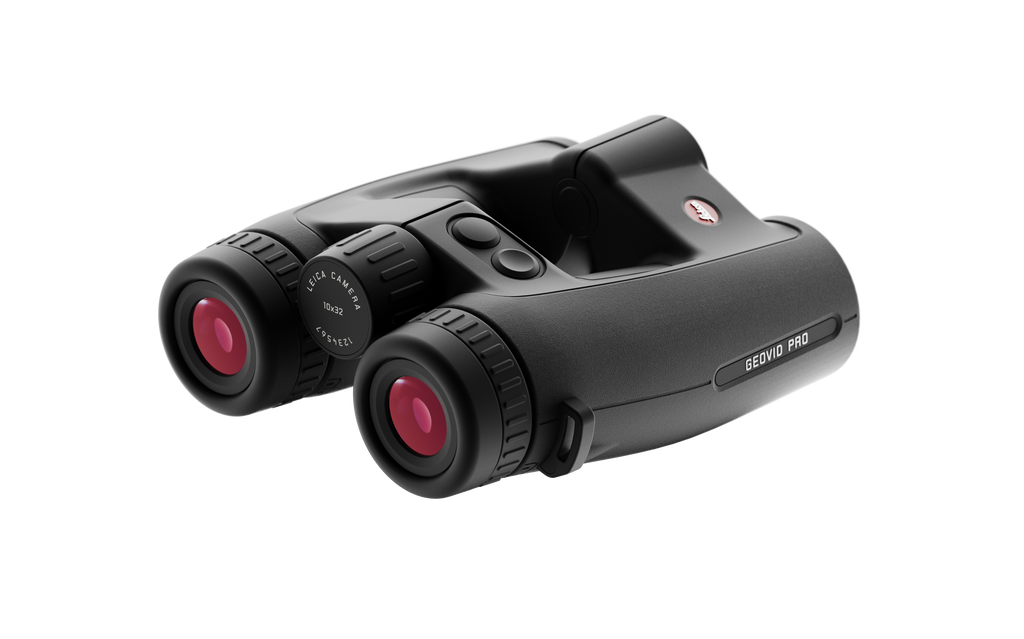

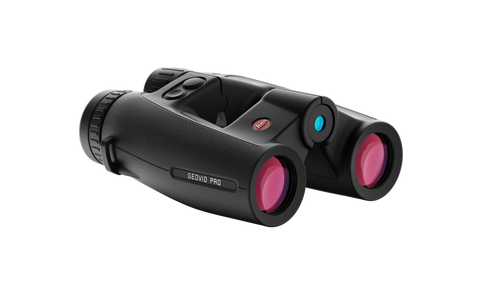

• The first premium laser rangefinder binocular with 32mm objective lenses. Approximately 2/3 the size of other LRF binos
• The first premium laser rangefinder to feature on-board Applied Ballistics solutions for elevation AND wind.
• The first premium premium laser rangefinder to feature GPS mapping via Garmin GPS products AND BaseMaps
• Optics that rival any 42mm premium LRF bino in a much smaller package
• VASTLY improved BlueTooth communication range (up to 10m) and computing capability
• Built-in Applied Ballistics Ultralite provides ballistic corrections to 875m
• In-App upgradeable to AB Elite via the app –no need to connect with a Kestrel for elevation and wind corrections as far as the Geovid PRO can range
• Ballistics managed by an all-new app designed and built by Applied Ballistics
• Enter wind direction and value via the app or directly via the buttons on the binocular

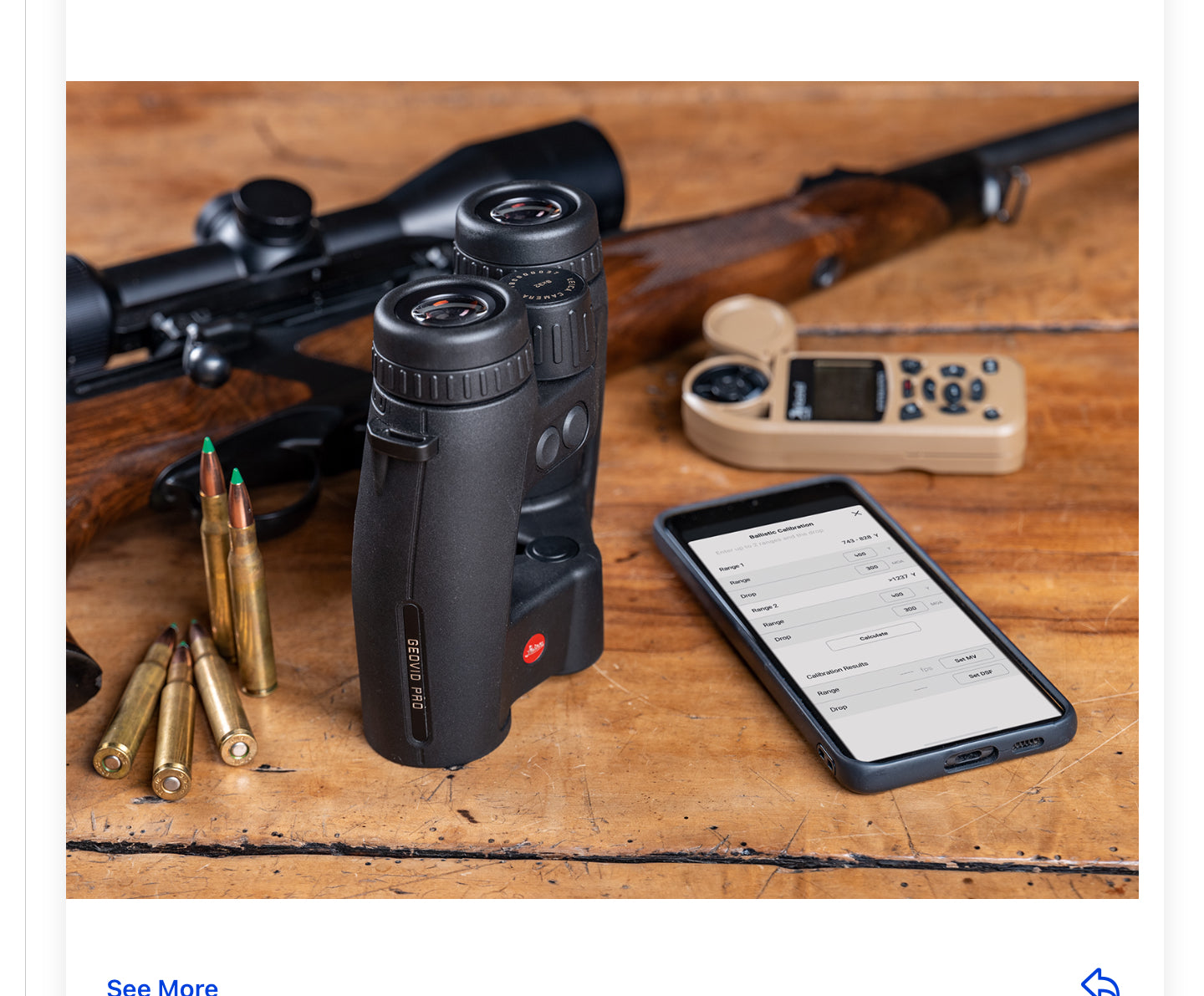

• Connect with a windvane-mounted Kestrel for automatic and continuous wind updates
• Connect with a Garmin watch or Kestrel to build a target card, Kestrel for continual wind updates, or Garmin GPS or mobile device mapping app to mark target or shooter location
• Ranges real-world targets to 10-2500y
• Still the toughest products- waterproof to 5m and shock proof to 100Gs
• Still the best optics- Best color, contrast, sharpness and brightness. Least eye fatigue.
• Still the best, most reliable rangefinders- range non-reflective targets farther than anyone else
• Still the best warranty offered by any premium optic manufacturer- 10 year protection against accidental damage (including electronics) 30 year warranty against manufacturer‘s defects in optics and mechanics
• Still the most ergonomic and comfortable user experience- More comfortable to hold, more comfortable to look through for long glassing sessions
DETAILED PDF OWNERS MANUAL - Download HERE
REVIEW: Click HERE for a very in-depth review I borrowed from Snipershide.
HERE ARE SOME HOW-TO VIDEOS.
1) Pairing with BLUETOOTH:
2) Introduction to the MENU:
3) Compass CALIBRATION:
4) Building Gun PROFILES:
5) Building a CROSSBOW Profile:
6) Changing WIND Values:
7) Introduction to Gun PROFILES:
8) Introduction to the Leica Ballistics APP:
9) Using APPLIED Ballistics:
10) Using BASE MAP:
11) Using GOOGLE MAPS:
12) How to use the HUD:
13) Use the RANGE CARD:
GENERAL OVERVIEW

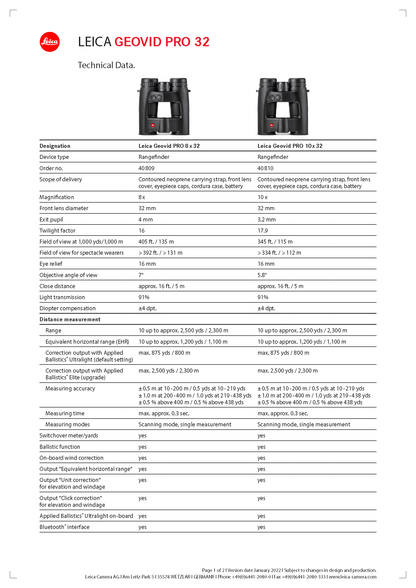

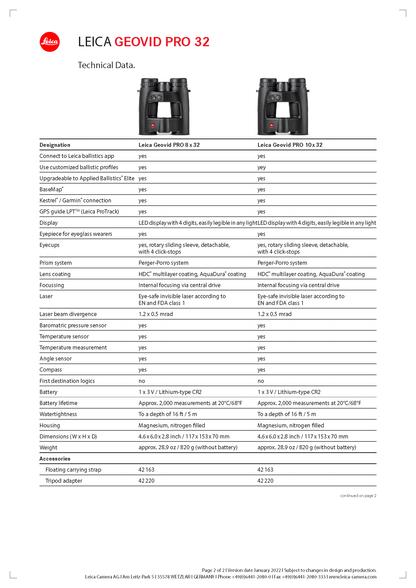

TECH SPECS:
| LEICA GEOVID PRO 8X32 | |
| Magnification | 8x |
| Front lens diameter | 32mm |
| Exit pupil | 4 mm |
| Twilight factor | 16 |
| Field of view at 1.000yds / 1000m | 405 ft. / 135 m |
| Field of view for spectacle wearers | > 392 ft. / > 131 m |
| Eye-relief | 16 mm |
| Objective angle of view | 7° |
| Close distance | approx. 16 ft. / 5 m |
| Light transmission | 91% |
| Diopter compensation | ±4 dpt. |
| Range | 10 up to approx. 2,500 yds / 2.300m |
| Equivalent horizontal range (EHR) | 10 up to approx. 1,200 yds / 1,100m |
| Measuring accuracy | ±0,5 m at 10-200 m / 0,5 yds at 10-219 yds |
| ±1,0 m at 200-400 m / 1,0 yds at 219-438 yds | |
| ±0,5 % above 400 m / 0,5 % above 438 yds | |
| Measuring time | Max. approx. 0.3 sec. |
| Measuring modes | Scanning mode, single measurement |
| Switchover meter/yards | yes |
| Ballistic function | yes |
| On-board wind correction | yes |
| Output "Equivalent Horizontal Range" | yes |
| Output "Elevation and Windage correction | yes |
| Output "Click Correction" for elevation and windage | yes |
| Pre-installed ballistic curves | 12 |
| Applied Ballistics Ultralight on-board | yes |
| Bluetooth interface | yes |
| Connect to Leica Ballistics App | yes |
| Use customized ballistic profiles | yes |
| Upgradeable to Applied Ballistics Elite | yes |
| Basemaps | yes |
| Kestrel / Garmin Connection (AB External Mode) | yes |
| GPS Guide | yes |
| Display | LED display with 4 digits, easily legible in any light |
| Eyepiece for eyeglass wearers | yes |
| Eyecups | yes, rotary sliding sleeve, detachable, with 4 click-stops |
| Prism system | Perger-Porro system |
| Lens coating | HDC® multilayer coating, AquaDura® coating |
| Focussing | Internal focusing via central drive |
| Laser | 4:02:02 |
| Laser beam divergence | 1.2 x 0.5 mrad |
| Baromatric pressure sensor | yes |
| Temperature Sensor | yes |
| Temperature measurement | yes |
| Angle sensor | yes |
| Compass | yes |
| First destination logics | no |
| Battery | 1 x 3 V / Lithium-type CR2 |
| Battery lifetime | Approx. 2.000 measurements at 20°C/68°F |
| Watertighness | To a depth of 16ft / 5m |
| Housing | Magnesium, nitrogen filled |
| Dimensions (W x H x D) | 5.1 x 6.0 x 2.8 inch / 130 x 153 x 70 mm |
| Weight | approx. 30,7 oz / 870 g (without battery) |
|
LEICA GEOVID PRO 10X32 |
|
| Magnification | 10 x |
| Front lens diameter | 32 mm |
| Exit pupil | 3.2 mm |
| Twilight factor | 16 |
| Field of view at 1.000yds / 1000m | 345 ft. / 115 m |
| Field of view for spectacle wearers | > 334 ft. / > 112 m |
| Eye-relief | 16 mm |
| Objective angle of view | 5.8° |
| Close distance | approx. 16 ft. / 5 m |
| Light transmission | 91% |
| Diopter compensation | ±4 dpt. |
| Range | 10 up to approx. 2,500 yds / 2.300m |
| Equivalent horizontal range (EHR) | 10 up to approx. 1,200 yds / 1,100m |
| Measuring accuracy | ±0,5 m at 10-200 m / 0,5 yds at 10-219 yds |
| ±1,0 m at 200-400 m / 1,0 yds at 219-438 yds | |
| ±0,5 % above 400 m / 0,5 % above 438 yds | |
| Measuring time | Max. approx. 0.3 sec. |
| Measuring modes | Scanning mode, single measurement |
| Switchover meter/yards | yes |
| Ballistic function | yes |
| On-board wind correction | yes |
| Output "Equivalent Horizontal Range" | yes |
| Output "Elevation and Windage correction" | yes |
| Output "Click Correction" for elevation and windage | yes |
| Pre-installed ballistic curves | 12 |
| Applied Ballistics Ultralight on-board | yes |
| Bluetooth interface | yes |
| Connect to Leica Ballistics App | yes |
| Use customized ballistic profiles | yes |
| Upgradeable to Applied Ballistics Elite | yes |
| Basemaps | yes |
| GPS Guide | yes |
| Display | LED display with 4 digits, easily legible in any light |
| Eyepiece for eyeglass wearers | yes |
| Eyecups | yes, rotary sliding sleeve, detachable, with 4 click-stops |
| Prism system | Perger-Porro system |
| Lens coating | HDC® multilayer coating, AquaDura® coating |
| Focussing | Internal focusing via central drive |
| Laser | 4:02:02 |
| Laser beam divergence | 1.2 x 0.5 mrad |
| Baromatric pressure sensor | yes |
| Temperature Sensor | yes |
| Temperature measurement | yes |
| Angle sensor | yes |
| Compass | yes |
| First destination logics | no |
| Battery | 1 x 3 V / Lithium-type CR2 |
| Battery lifetime | Approx. 2.000 measurements at 20°C/68°F |
| Watertighness | To a depth of 16ft / 5m |
| Housing | Magnesium, nitrogen filled |
| Dimensions (W x H x D) | 5.1 x 6.0 x 2.8 inch / 130 x 153 x 70 mm |
| Weight | approx. 30,7 oz / 870 g (without battery) |
