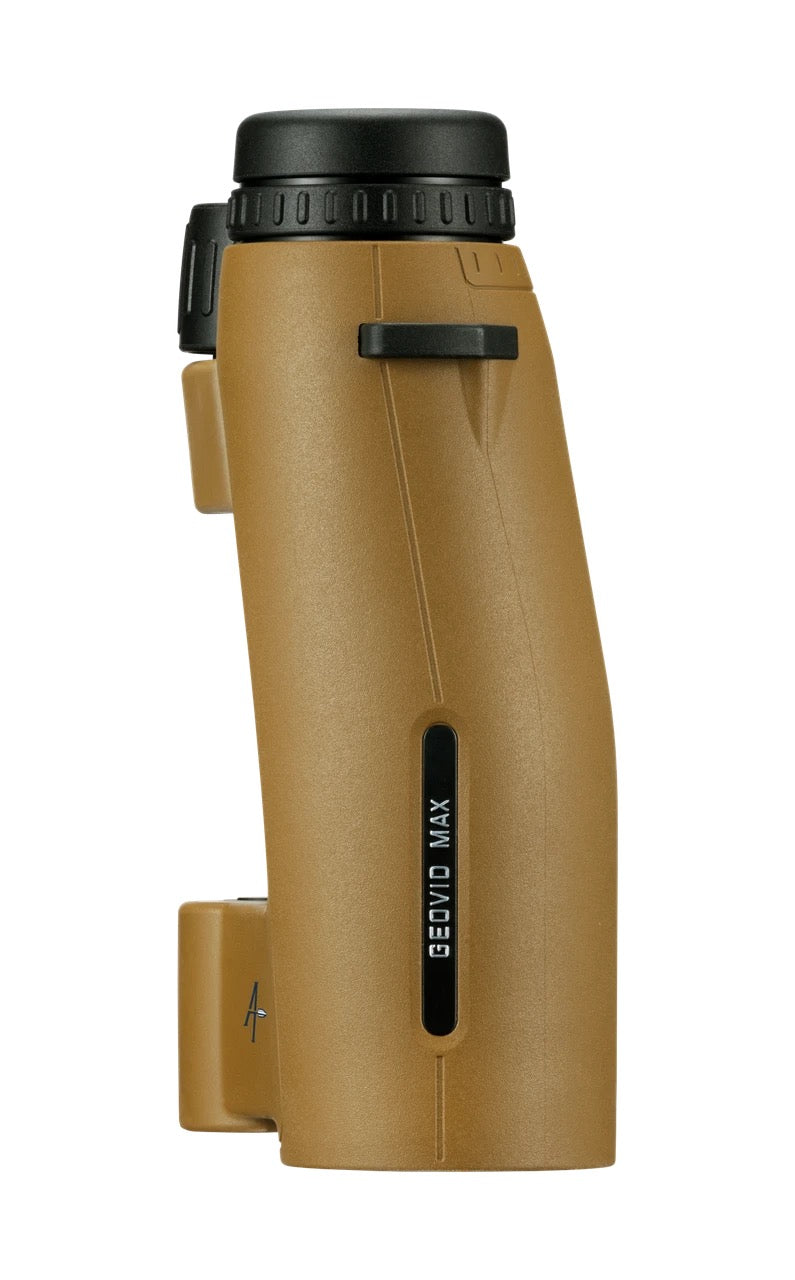

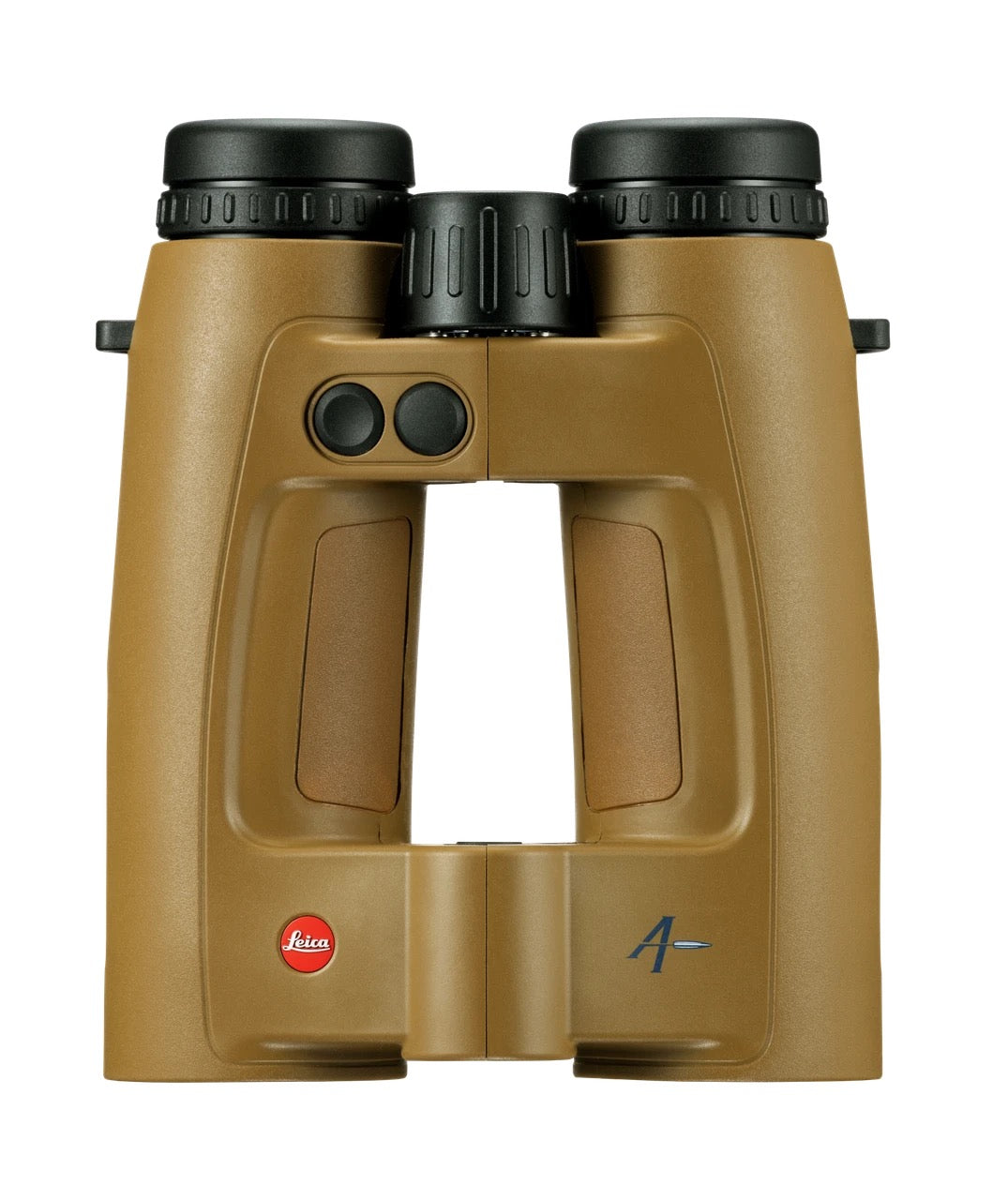

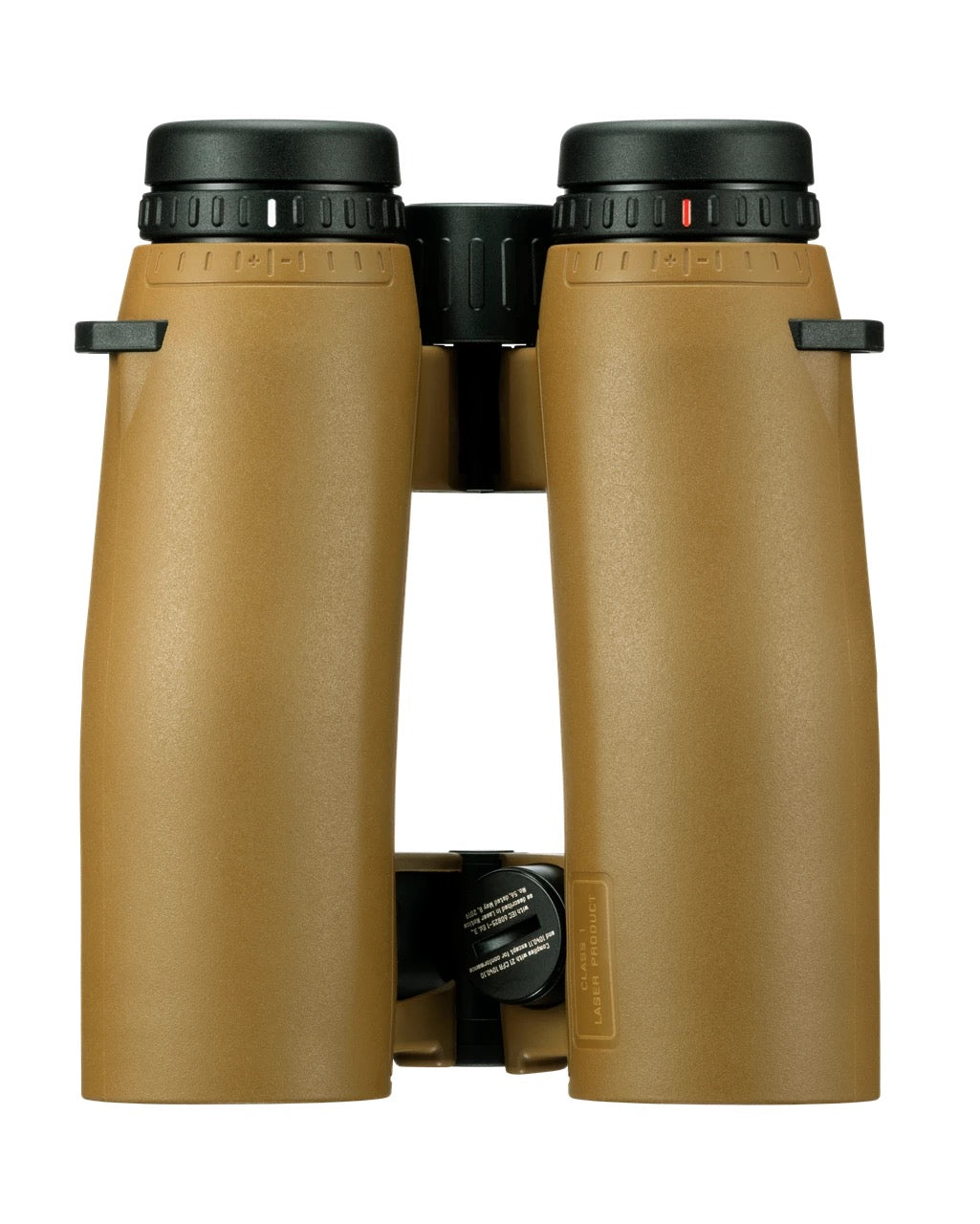

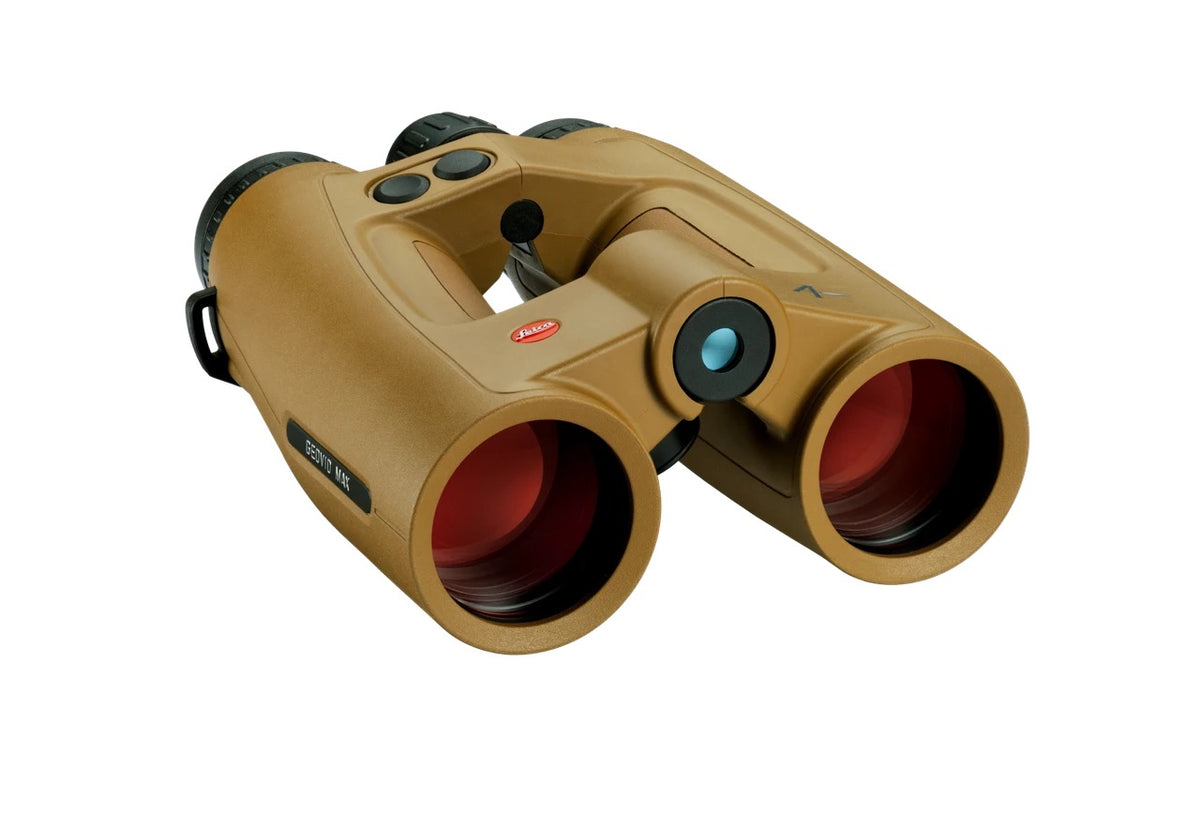

Leica Geovid Max 10x42
In stock 22 September - Order now!!
The ultimate high-performance hunting binoculars with innovative technology
The Leica Geovid Max 10x42 was developed for hunters and precision shooters who need more than just a measured value at long distances. It combines brilliant observation, highly precise rangefinding, professional ballistics and precise terrain navigation in powerful hunting binoculars.
The exceptionally bright Active Matrix micro LED display remains clearly legible even in strong sunlight. It can be individually configured via the Leica Ballistics App so that only the information actually required in the respective situation appears in the field of view. Distance, ballistic correction, shot probability, wind data and compass information are therefore immediately available without additional distraction.
The highly precise laser measuring system determines distances up to around 2,900 metres in standard measuring mode in just 0.3 seconds. For greater distances, Extended Mode increases the range to up to around 7,500 metres for retroreflective targets. The “First”, “Best” and “Last” target modes adapt the measuring logic to isolated, nearby or partially obscured targets, ensuring reliable results even in demanding situations.
Applied Ballistics Professional® calculates precise correction values up to the maximum measuring range. Air pressure, temperature and angle of inclination are automatically recorded and included in the calculation. Shot Probability Analysis additionally displays the expected probability of a hit as a percentage, providing a sound basis for a responsible shooting decision.
As part of the Leica Ecosystem, the Geovid Max connects seamlessly with the Leica Ballistics App, compatible Kestrel® devices, Garmin® watches and BaseMap® Pro. Leica ProTrack guides the user precisely to a previously measured point in the terrain. This creates a fully connected system for observation, rangefinding, ballistics and navigation, providing a better overview, shorter decision paths and full concentration on the decisive moment.
The Leica 10x42 high-performance optics with patented Perger-Porro prism system, 90% light transmission and high edge-to-edge sharpness enable reliable target identification and detail recognition, even in difficult lighting conditions. The distinctive Flat Dark Earth colour identifies the Geovid Max as the high-end model in the Leica Geovid family.
The essentials:
- Ultimate high-performance hunting binoculars with Leica 10x42 premium optics and rangefinder in Flat Dark Earth
- Exceptionally bright, individually configurable Active Matrix microLED display with 640 × 480 pixels
- Fast, highly precise laser rangefinding up to 2,900 metres (just 0.3 seconds in standard measuring mode), maximum range up to 7,500 metres
- Equipped with Applied Ballistics Professional® with Shot Probability Analysis, wind correction and integrated environmental sensors
- Three intelligent target modes, “First”, “Best” and “Last”, for a wide range of hunting and measuring situations
- Full integration into the Leica Ecosystem with Leica Ballistics App, BaseMap®, Kestrel®, Garmin® and Leica ProTrack (LPT™) for precise navigation to measured points in the terrain
OWNERS MANUAL - CLICK HERE
TECHNICAL SPECIFICATIONS - DETAILED SPECS CLICK HERE
Designation |
Leica Geovid Max 10 x 42 |
|---|---|
| Device type | Rangefinder |
| Order no. | 40 831 (flat dark earth) |
| Scope of delivery | Contoured neoprene carrying strap, front lens cover, eyepiece caps, cordura case, battery |
| Magnification | 10 x |
| Front lens diameter | 42 mm |
| Exit pupil | 4.2 mm |
| Twilight factor | 20.5 |
| Field of view at 1,000 yds/1,000 m | 339 ft / 113 m ± 3% |
| Field of view for spectacle wearers | 339 ft / 113 m ± 3% |
| Eye relief | 16 mm |
| Objective angle of view | 6.5° |
| Close distance | approx. 16 ft. / 5 m |
| Adjustable interpupillary distance | 56 to 74 mm |
| Light transmission | 90 % |
| Diopter compensation | ± 4 dpt. |
Distance measurement |
|
| Range |
Retro-reflective targets: 10 up to approx. 8200 yds / 7500m High reflective targets: 10 up to approx. 7300 yds / 6675 m Trees: 10 up to approx. 4600 yds / 4200 m Deer: 10 up to approx. 2900 yds / 2650 m |
| Equivalent horizontal range (EHR) | 10 up to approx. 8200 yds / 7500m |
| Measuring accuracy | ± 0.5 yds at 10 - 200 yds / ± 0.5 m at 10 - 183 m± 1.0 yds at 200 - 1000 yds / ± 1.0 m at 183 - 915 m± 0.15 % above 1000 yds / ± 0.15 % above 915 m |
| Measuring time |
Extended mode OFF: 0.3 sec. / Extended mode ON: 1.4 sec. Extended mode AUTO: 0.3 or 1.4 sec. / Scanning mode: 0.25 sec. |
| Measuring modes |
1) Scanning mode 2) Single measurement: 2.1) Extended mode OFF 2.2) Extended mode ON 2.3) Extended mode AUTO |
| Target modes | First / Last / Best |
| Switchover meter/yards | yes |
| Ballistic function | yes |
| On-board wind correction | yes |
| Output "Equivalent horizontal range" (EHR) | yes |
| Output "Unit correction" for elevation and windage | yes |
| Output "Click correction" for elevation and windage | yes |
| Output "Holdover" for elevation and windage | yes |
| Output "Shot Probability Analysis" (SPA/WEZ) | yes |
| Applied Ballistics Professional® on-board | yes |
| Bluetooth® interface | yes |
| Connect to Leica Ballistics App | yes |
| Use customized ballistic profiles | yes |
| BaseMap® | yes |
| Kestrel® / Garmin® connection | yes |
| GPS guide LPTTM (Leica ProTrack) | yes |
| Display | Active-Matrix MicroLED Display (640 x 480) |
| Eyepiece for eyeglass wearers | yes |
| Eyecups | yes, rotary sliding sleeve, detachable, with 4 click-stops |
| Prism system | Perger-Porro system |
| Lens coating | HDC® multilayer coating, AquaDura® coating |
| Focussing | Internal focusing via central drive |
| Laser | Eye-safe invisible laser according to EN and FDA class 1 |
| Laser beam divergence | 1.8 x 0.8 mrad |
| Baromatric pressure sensor | yes |
| Temperature sensor | yes |
| Temperature measurement | yes |
| Inclination sensor | yes |
| Compass | yes |
| Battery | 1 x 3 V / Lithium-type CR2 |
| Battery lifetime | approx. 2000 measurements at 68°F / 20°C |
| Watertightness | to a depth of 16 ft / 5 m |
| Housing | Magnesium, nitrogen filled |
| Dimensions (W x H x D) | 4.9 x 6.9 x 2.8 inch / 125 x 174 x 70 mm |
| Weight | approx. 37 oz / 1040 g (without battery) |
Accessories |
|
| Winged eyecups | 42 006 |
| Floating carrying strap | 42 163 |
| Tripod adapter | 42 220 |
| Ollin Snapshot Geovid Adapter | 96 475 |
