All models of K328i are special order for now - delivery time is roughly a few weeks out due to them being newly launched.
Please contact me to special order one of the models for you.
Please note - KAHLES have now confirmed the K328i will have 35 MILS of total elevation adjustment, not 34 MILS as per their initial specifications.
K328i
THE GAME-CHANGER
The groundbreaking K328i sets new performance standards with a pioneering new generation optical design. It offers a 40 % wider field of view*, an exceptionally comfortable eyebox and 8x zoom with perfect optical performance across the entire adjustment range. Absolute precision, repeat accuracy and unique handling for maximum performance.
PRODUCT HIGHLIGHTS
- Revolutionary optical design with a 40 % wider field of view* and an exceptional eyebox
- 8x zoom with perfect optical performance across the entire adjustment range
- Windage adjustment on the left or right with TWIST GUARD rotation protection
- Patented parallax adjustment integrated in the elevation turret (20 m to ∞)
- Absolutely reliable repeat accuracy and clearly defined clicks
- Precise illuminated MRAD reticles in 1st focal plane
*) Based on comparison with the K525i at 25x magnification.
FACT SHEET - click HERE

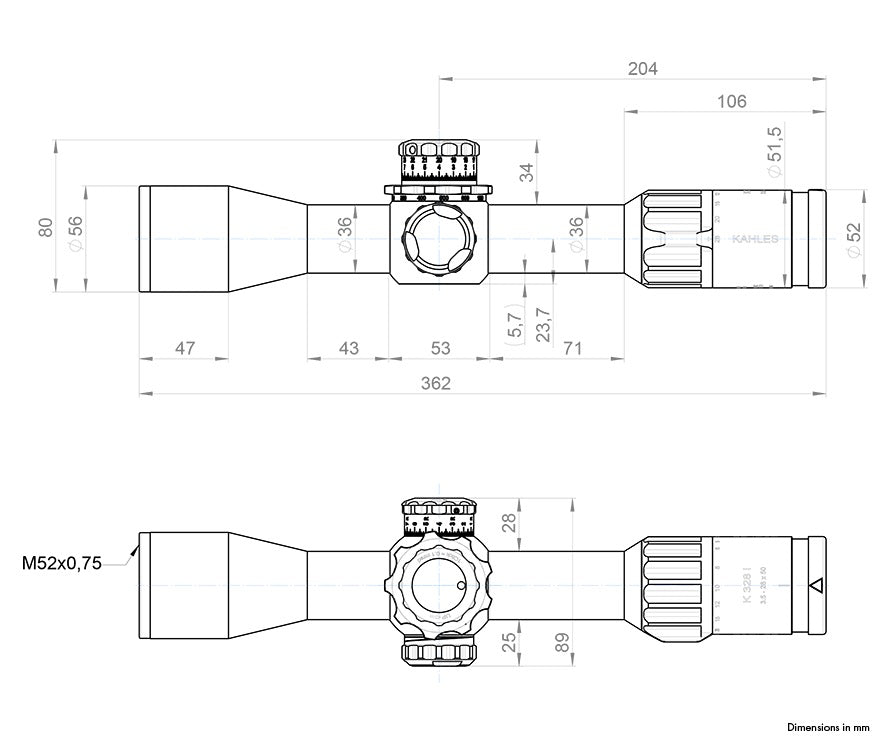

TECHNICAL DATA: K328i 3.5-28x50i
IMPERIAL MEASUREMENTS
- Magnification: 3.5 - 28x
- Eye relief: 3.62 in
- Field of view: 42.9 - 5.4 ft/100 yds
- Diopter compensation: +2 / -3 dpt
- Twilight factor (DIN 58388): 13.2 - 37.4
- Impact correction per click: 0.1 MRAD
- Adjustment range (E/W): 137.8 in / 46.8 in/100 yds | (120.3 MOA / 43.9 MOA)
- Parallax adjustment: 22 y to ∞
- Tube diameter: 1.41 in
- Length: 14.2 in
- Weight: 36.7 oz
- Focal plane: 1st
- Illuminated: Yes
- Warranty: 10 yrs (2 yrs electronics)
METRIC MEASUREMENTS
- Magnification: 3.5 - 28
- Objective lens diameter (mm): 50
- Field of view (m/100m): 14.3 - 1.8
- Exit pupil diameter (mm): 1.8 - 7.4
- Eye relief (mm): 92
- Diopter compensation (dpt.): +2 / -3
- Parallax adjustment (m): 20m to ∞
- Windage: left / right
- Adjustment direction: CCW
- Adjustment range E/W (m/100m): 3.5m / 1.3m (35 MIL / 13 MIL)
- DLR-elevation turret incl. EasyRead: YES
- Impact correction per click: .1 MRAD
- Tube diameter (mm): 36
- Focal plane: 1st
- Reticles: SKMR+, SKMR4+
- Illuminated: YES
- Twilight factor (DIN 58388): 13.2 - 37.4
- Zero Stop: YES
- TWIST GUARD: YES
- Waterproof: YES
- Length (mm): 360
- Weight (g): 1040
- Battery type: CR2032
- Warranty (years): 10 (2 electronics)
- Objective filter thread: M52 x 0.75
- Accessories (optional): Flip Up Cover objective/ocular, Parallax, Spinner, Sunshield, Killflash, ARD
