PRODUCT HIGHLIGHTS
- Unparalleled 150 ft field of view
- 8x zoom and true 1.0x magnification

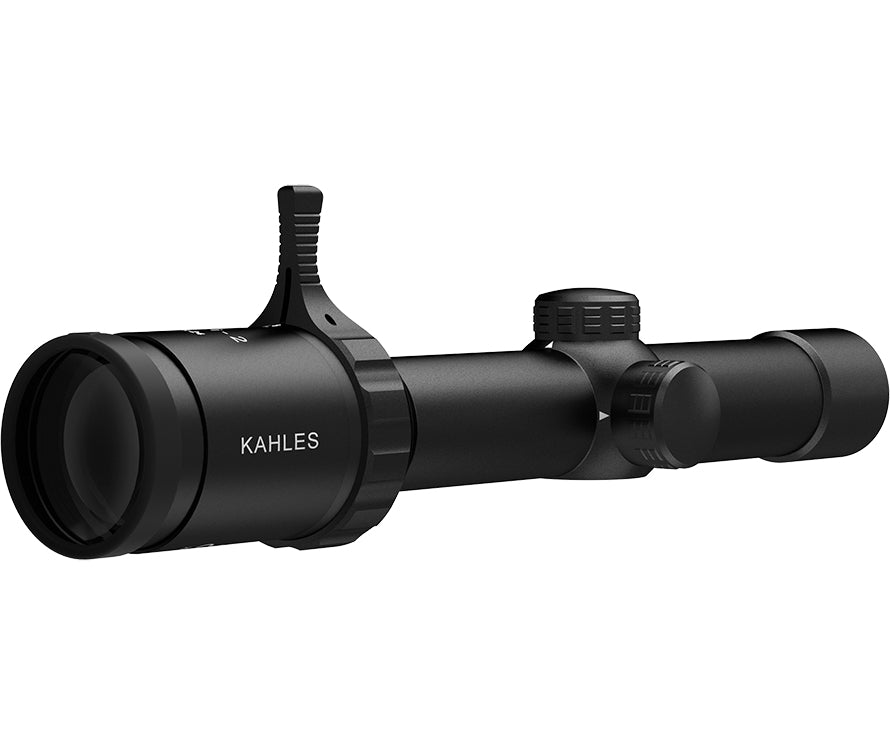

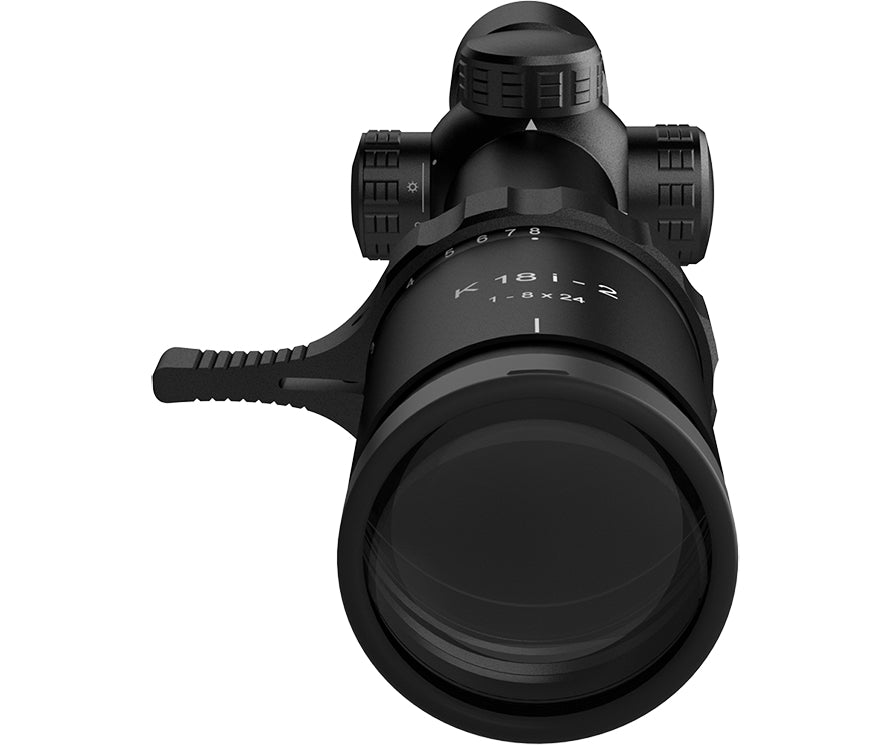

- 2 sizes of integrated throw lever with freely selectable position
- Extra-bright day/night illuminated reticle in 2nd focal plane with MAX LIGHT function for extreme backlight situations
- 3GR reticle designed with pro shooters especially for 3-Gun and IPSC
TECHNICAL DATA
| Magnification: | 1-8 |
| Exit pupil: | 0.31 - 0.11 in |
| Eye relief: | 3.74 in |
| Field of view: | 150.0 - 18.57 ft/100 yds |
| Diopter compensation: | +2 / -3 dpt |
| Twilight factor (DIN 58388): | 2.9 - 13.9 |
| Impact correction per click: | .1 MRAD |
| Adjustment range (E/W): | 86.4 / 86.4 in/100 yds | 24.0 / 24.0 MILS | 82.5 / 82.5 MOA |
| Parallax adjustment: | 100 m |

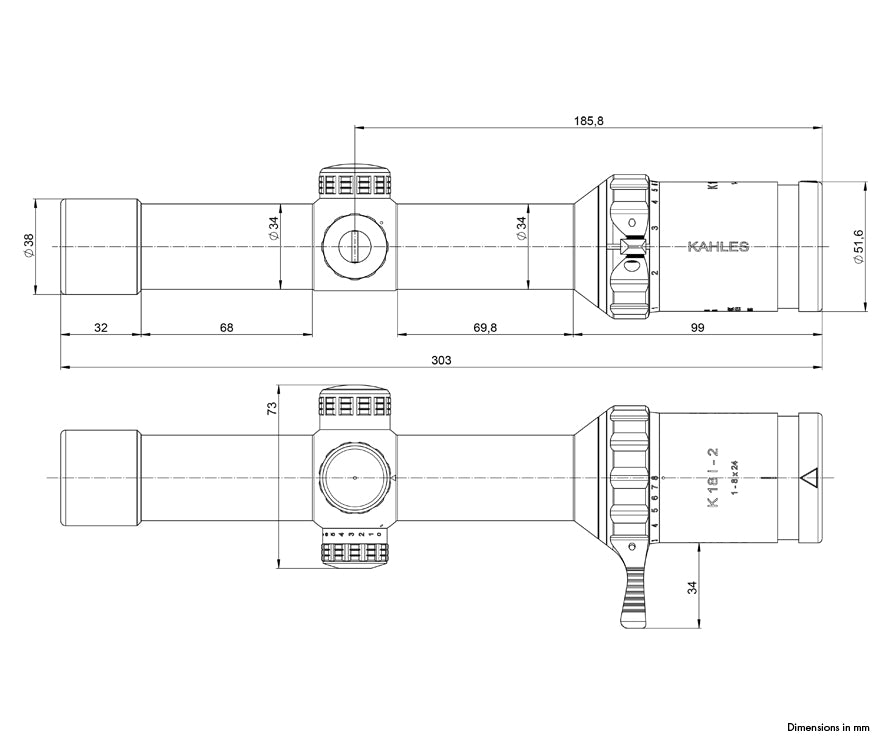

| Tube diameter: | 34 mm / 1.34 in |
| Length: | 11.81 in |
| Weight: | 22.5 oz |
| Focal plane: | 2 |
| Illuminated: | Yes |
