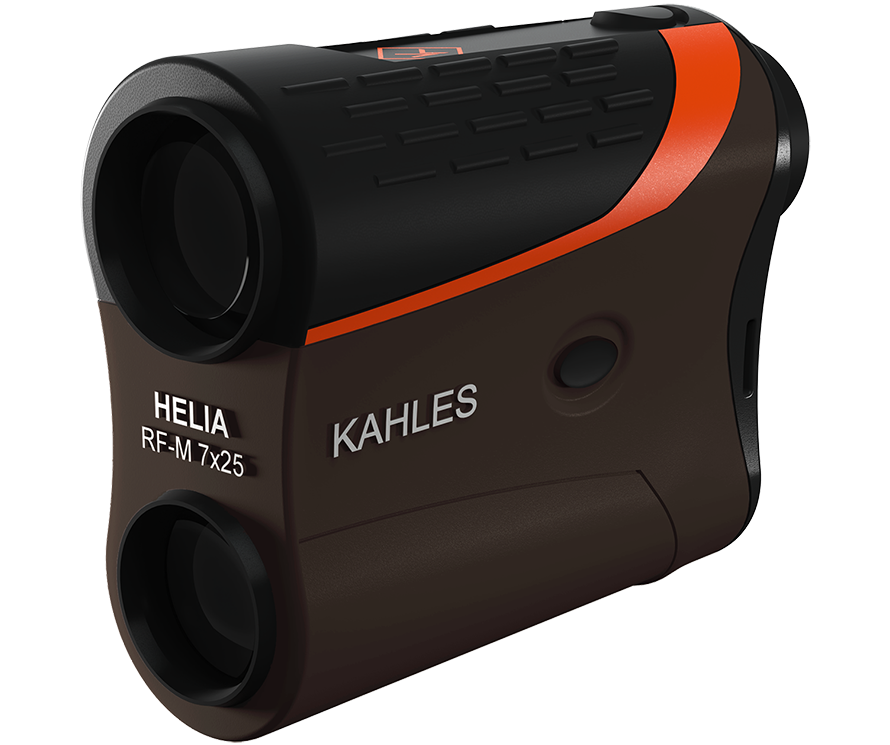

Kahles Helia RF-M 7x25 Compact Rangefinder

  • Sale
  • $679


PLEASE ALLOW 3 DAYS TO SHIP!!

The compact HELIA RF-M 7x25 offers ergonomical design, intuitive and simple handling and is equipped with a large field of view and relevant hunting features. You are able to measure the distance simple and fast and you can concentrate, during the hunt, on the real essentials.

  • Easy and reliable targeting up to 2,000 m
  • Ergonomical design, intuitive handling, simple menu navigation
  • Exceptional edge to edge clarity and large field of view of 117 m/1,000 m
  • Premium-quality OLED display with five manual brightness settings and display in meter or yards
  • EAC-function (Enhanced Angle Compensation) for angle correction (patented)
  • Scan mode, temperature- and air pressure measurement
  • Extra long battery lifetime ~ 4,000 measurements
Magnification 7
Objective lens diameter (mm) 25
Eye relief (mm) 15
Exit pupil distance (mm) 3.6
Twilight factor
(ISO 14132-1)
13.2
Field of view (m/1,000 m) 117
Field of view (°) 6.7
Field of view apparent (°) 46
Closest focusing distance (m) 10
Diopter compensation (dpt) +4 / –4
Measurement range (m) 10-2.000
Measurement range (yds) 10-2.000
Range-finding accuracy (m) +/– 1 up to 100
+/– 2 up to 1,000
+/– 0.5% over 1,000
Range-finding accuracy (yds) +/- 1 up to 100
+/- 2 up to 1000
+/- 0,5% over 1000
Display type OLED
Brightness levels 5
Measuring speed (s) 1
Display Auto-off (s) 5
Waterproof (nitrogen filling) ✔
Height x Width x Depth approximately (mm) 78 x 37 x 102
Weight (g) 214
m/yds display ✔
Laser category 1M
Single measurement ✔
Angle correction ✔
Temperature measurement ✔
Air pressure measurement ✔
Battery type CR2
Battery life (measurements cycles) 4,000
Warranty (years) 2
Operating temperature (°c) -10 - +55
Storage temperature (°c) 30 - +70
