INFIRAY ZOOM SERIES - ZH50 V2 Thermal Monocular

  • Sale
  • $4,999

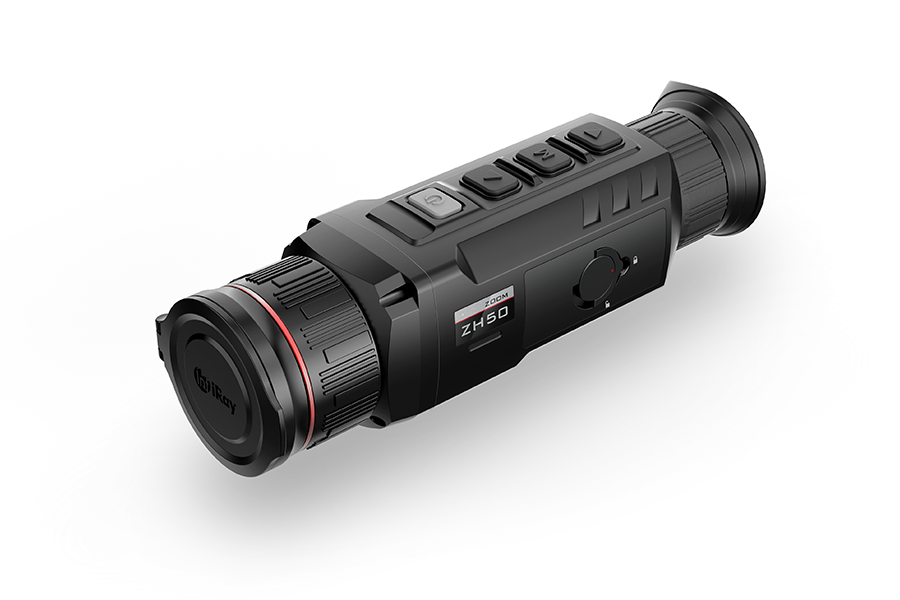

Zoom Series - ZH50 V2

The Zoom Series, is our premium thermal imaging monocular, featuring three industry firsts including built-in dual magnification levels, a 1440×1080 FHD OLED display and shutterless technology. Designed to be a premium offering with extended battery life, the ZH50 V2 is equipped with a 640*512/12µm sensor, 25/50mm objective lens and 1440×1080 FHD OLED display, allowing the user to detect targets up to 2,596 meters while utilizing the sight’s 2.2 to 17.6 times magnification. The ZH50 V2 is best suited for those seeking the best handled thermal device available.

Dual Field of View Design

The wider FOV with a focal length of 25mm can be used for target search while the narrower FOV with a focal length of 50mm can be used for target identification. The detection distance can reach up to 2.6km. With F-number 0.88/1.1, imaging clarity can be lifted to a new level.

1440×1080 High Display Resolution

Using 1440×1080 FHD OLED display, the observation effect is more excellent. And the 20×magnification eyepiece makes the target search more accurate and the observation distance is longer.

Shutterless Function

The Shutterless core module is adopted to nullify the shutter calibration, simplify the operation, and lower the energy consumption, making the imaging quieter and linear.

Extended Battery Life

The ZOOM series uses low-power components, lower power consumption, with a replaceable 4400mAh large-capacity lithium battery pack, battery life up to 10 hours, additional battery pack as standard, battery life up to 20 hours, to achieve long-term outdoor operation worry-free.

PIP Function

Built-in Picture-in-Picture function of ZH50 improves accuracy by providing a 2x magnified image of the reticle area at the top of the display. It helps users to zoom in on the targets while retaining the rest of the field of view visible.

Integrated Video Recorder and WIFI

ZH38 is built with memory of 32GB which can support to store video and pictures, while the built-in WiFi module supports APP applications.

CLICK HERE FOR OWNERS MANUAL

SPECIFICATIONS

ZOOM Series ZH50
Detector Type Uncooled VOx
Resolution 640×512

Pixel 12μm
NETD ≤25mK
Frame Rate 50hz
Optical Objective Focal Length 25/50mm
F-number 0.88/1.1
Magnification 2.2x ~ 17.6x
Digital Zoom 1x/2x/3x/4x
Exit Pupil Distance 20mm
Exit Pupil Diameter 5.5mm
Diopter -5 ~ +5
Display Type AMOLED
Resolution 1440×1080
Dimension 0.4″
Battery Type Lithium-ion
Capacity 4400mAh
Service Voltage 3V~4.2V
External Voltage 5V (Type C USB)
Physical Specs Operating Time 10h
Internal Storage 32GB
Operating Temperature -20℃~+50℃
Weight 650g
Dimension 195×65×60 (mm)
