INFIRAY TUBE SERIES - TL35 V2 THERMAL IMAGING RIFLESCOPE

INFIRAY TUBE SERIES - TL35 V2 THERMAL IMAGING RIFLESCOPE

INF-TL35V2

$2,699.00 CAD
$2,699.00 CAD
Sale Sold out
Shipping calculated at checkout.
View full details

TL35 V2 Thermal Riflescopes are special order only - delivery time is 3-4 weeks typically from the time you place the order.

Tube Series - TL35 V2

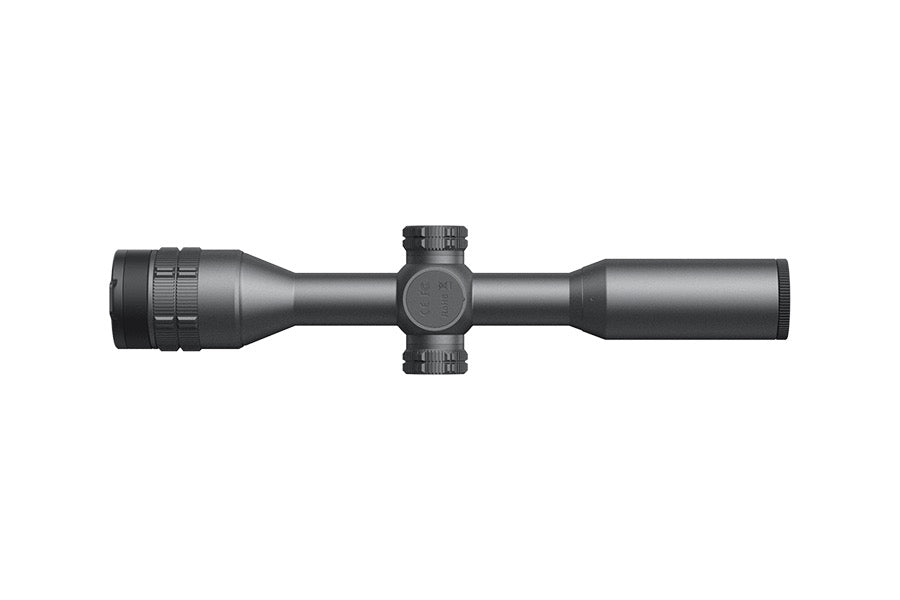

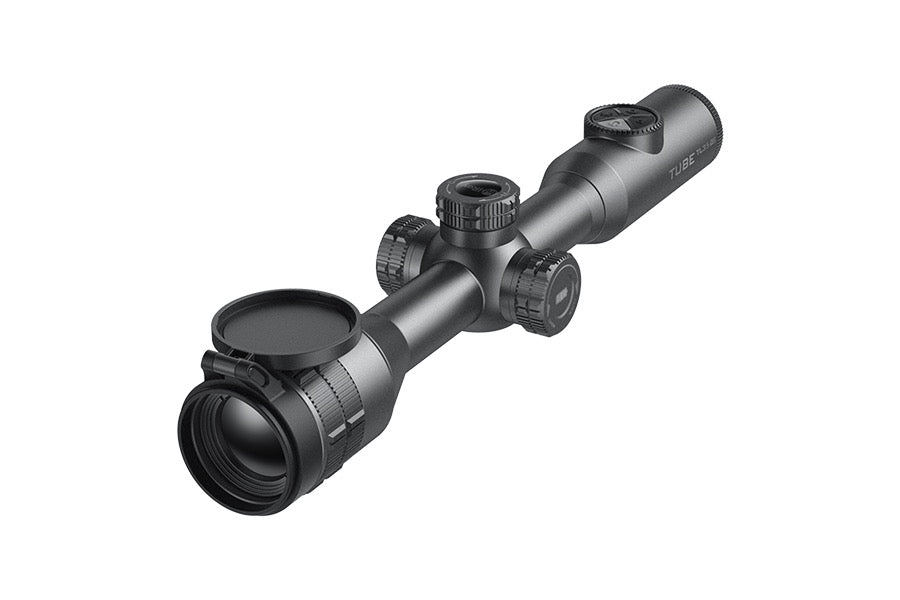

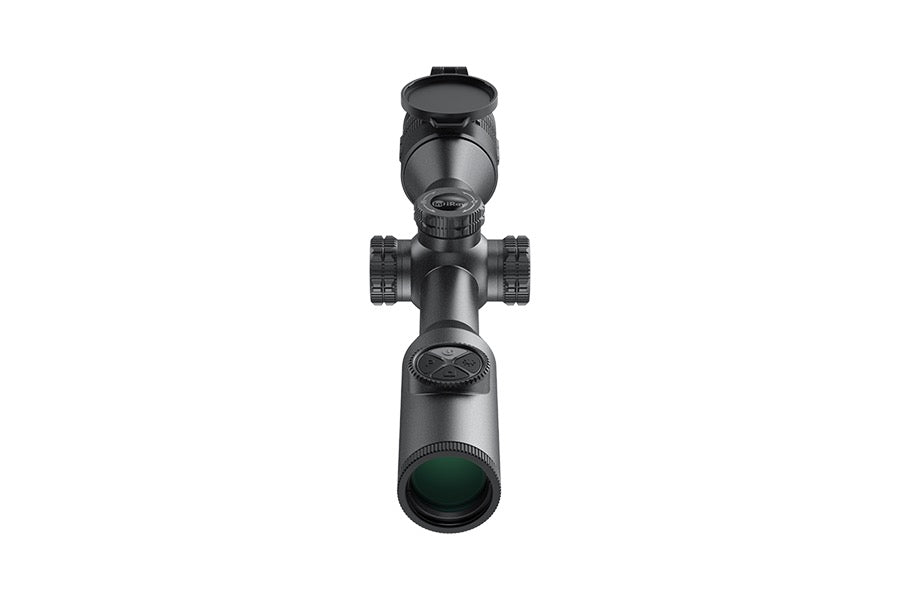

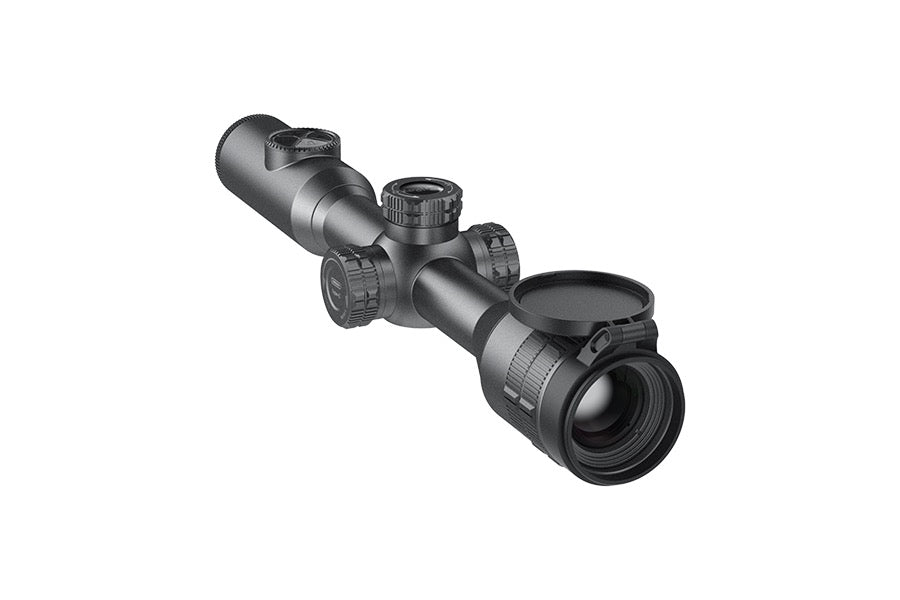

Part of the Tube Series, the TL35 is our most affordable full feature thermal picatinny-mounted sight that comes in a traditional 30mm scope form factor. Designed to be a “one can do all” solution, the TL35 is equipped with a 384x288/12µm sensor, 35mm objective lens and 1024 ×768 OLED display, allowing the user to detect targets up to 1,816 meters while utilizing the sight’s 3.00 to 12.00 times magnification. The TL35 is best suited for those seeking an affordable full feature weapon sight in a traditional 30mm scope form factor.


Highe Image Quality

The Tube Series is designed for faultless operation in extreme weather and temperature conditions. Whether or not the environment is freezing cold or blistering hot, the image retains its contrast and vivid colors without loss of frame rate.





Picture-in-Picture Function

The Picture-in-Picture function improves accuracy by providing a 2x-magnified image of the reticle area at the top of the display. It helps to zoom in on a target while maintaining visibility of the entire field of view.


Built-in Video Recorder and WIFI Connection

16 GB internal storage provides 24 hours of video recording capability, or approximately 20,000 images of photo storage. WiFi mode allows for up to 4 connections simultaneously.





Ultraclear Mode

Built-in Ultra-clear mode is designed for bad weather conditions, such as heavy fog and rain. It will make the Tube series (BOLT in the US) more sensitive and capable of providing more details..


Reliable Full Aluminum Housing

The Tube series housing is made of aluminum and is designed to improve reliability. Designed for rugged reliability, Tube riflescopes boast full, reinforced yet lightweight metal construction. Precision-fabrication of housing elements ensures flawless field performance.





Mounts on Standard 30 mm Scope Rings

Applicable for 30mm diameter pipe, the newly designed tubular appearance allows the Tube series to be installed on standard 30mm scope rings, with simple operation, stability and reliability.


Extended Run Time and  Flexible Battery Choice

The working time of bulit-in battery is up to 13 hours,  and the replaceable 18500 battery will provide an  additional 2.5 hours of operation.

SPECIFICATIONS

Model TL 35 V2
Detector Specifications
Type Uncooled Vox
Resolution，pixels 384X288
Pixel size, μm 12
NETD, mK ≤40
Frame Rate, Hz 50
Optical Specifications
Objective Lens, mm 35
Field of View（H×V），° 7.5x5.6
Linear Field of View（H×V），m at 100m 13.1x9.9
Optical Magnification, × 3.0
Digital Zoom, × 1~4
Eye Relief, mm 70
Exit pupil Diameter，mm 6
Diopter，D -4~+4
Detection Range, m
    (Target size: 1.7m×0.5m, P(n)=99%) 		1800
Display Specifications
Type AMOLED
Resolution,pixels 1024*768
Battery Power Supply
Battery Built-in  battery/6600mAh +  replaceable 18500 battery/3.7V
Max. Operating Time (t=22ºC), h* 15
External Power Supply 5V (Type C)
Functions
Wi-Fi/APP Support (InfiRay outdoor)
Photo/Video Recorder Support
MIC Support
Bluetooth Support
Operational Characteristics
Memory Capacity，GB 32GB
IP rating IP67
Operating Temperature, °C -20 ~ +50
Max. recoil power on rifled weapon (Eo),   Joules 6000
Compatible mounts Standard 30 mm rings
Weight (without the 18500 battery), g <950
Dimension，mm 385× 85 × 75
