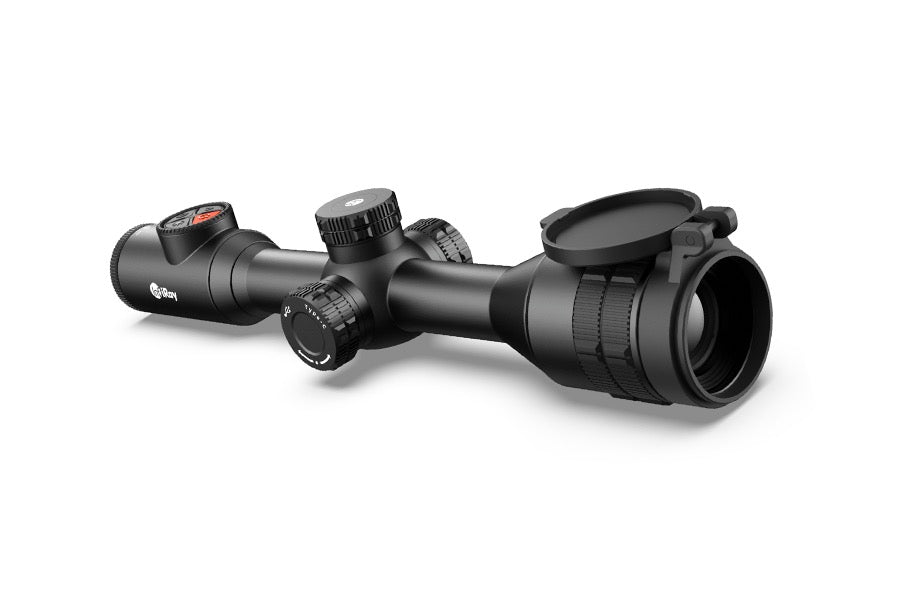

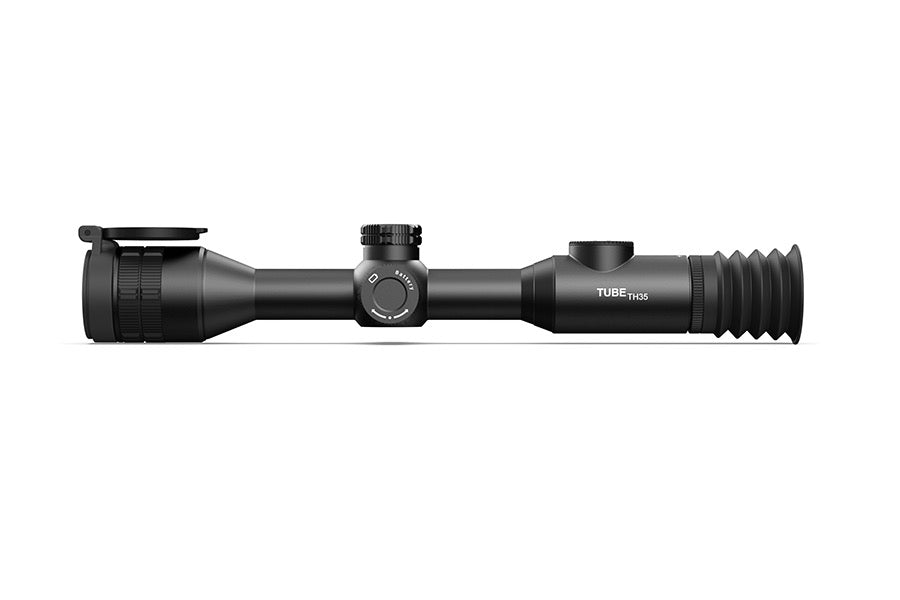

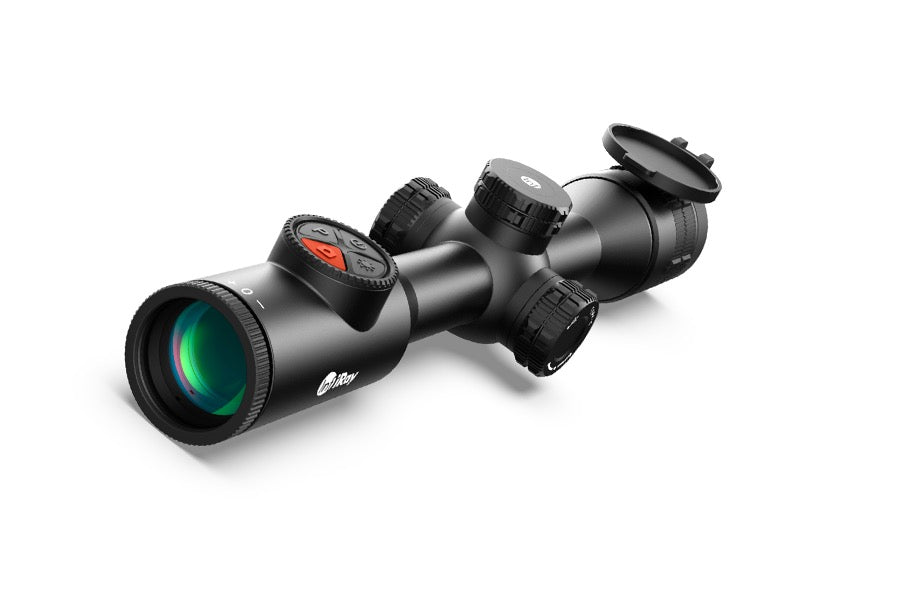

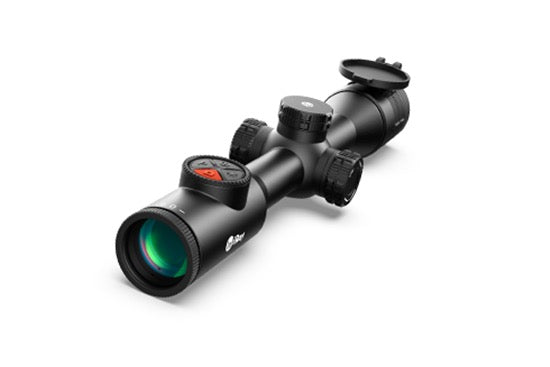

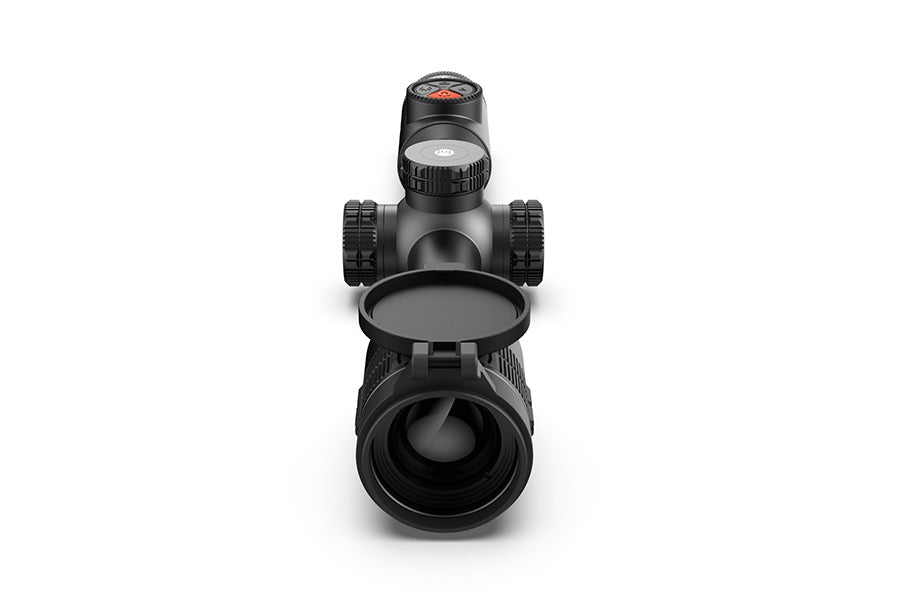

INFIRAY TUBE SERIES - TH35 V2 THERMAL IMAGING RIFLESCOPE

  • Sale
  • $4,179


TH35 V2 Thermal Riflescopes are special order only - delivery time is 3-4 weeks typically from the time you place the order.

Part of the Tube Series, the TH35 is the bigger brother of the TL35. Designed to be a “one can do all” solution, the TH35 is equipped with a 464x464/12µm sensor, 35mm objective lens and 1.39" OLED display, allowing the user to detect targets up to 1,816 meters while utilizing the sight’s 3.00 to 9.00 times magnification. The TH35 is best suited for those seeking a full feature picatinny-mounted sight in a traditional 30mm scope form factor but require increased performance over the TL35 and/or prefer a circular display.

High Image Quality

The Tube Series is designed for faultless operation in extreme weather and temperature conditions. Whether or not the environment is freezing cold or blistering hot, the image retains its contrast and vivid colors without loss of frame rate.


1.39’Round Screen

The application of 1.39’round screen is groundbreaking and Innovative in the thermal scope industry. The grand view brought by 1.39’round screen can present a more comfortable and pleasant observing experience.


Built-in Video Recorder and WIFI Connection

32 GB internal storage provides hours of video recording capability, or thousands of images of photo storage. WiFi mode allows for up to 4 connections simultaneously.


Ultraclear Mode

When Ultraclear mode is on, bad weather condition effect is off. With Untraclear mode, TH35 can still provide a clear and detailed image even in bad weather conditions such as heavy fog and rain. Bad weather can’t slow you down .


Reliable Full Aluminum Housing

The Tube series housing is made of aluminum and is designed to improve reliability. Designed for rugged reliability, Tube riflescopes boast full, reinforced yet lightweight metal construction. Precision-fabrication of housing elements ensures flawless field performance.


Mounts on Standard 30 mm Scope Rings

Applicable for 30mm diameter pipe, the newly designed tubular appearance allows the Tube series to be installed on standard 30mm scope rings, with simple operation, stability and reliability.


Extended Run Time and  Flexible Battery Choice

Built-in batteries work for 8 hours, and with an additional 18500 battery for back up, working time of TH35 will be 11.5 hours



Infinite Zooming

While TH35 can achieve the magnification of 3.0-9.0 times, it can perform infinite zooming which means you can adjust the magnification to the times you like during 3.0-9.0. Fit your need more by serving the details in a way you want it to.


WARRANTY INFO: Standard 3-year warranty from Infiray Canada

Main Features

  • 3-9x magnification
  • 1000G shock resistance
  • Traditional 30mm scope body and includes scope mounting rings
  • 8h battery life extendable to 11.5h with optional 18500 battery
  • 32GB internal storage with on-board easy-to-use photo and video capture
  • 5 colour palettes (white hot, black hot, white highlight, red hot, and full colour)
  • Diopter-free adjustment but includes multiple user-installed diopter lenses
  • Easy charging and data download via USB-C
  • Built-In Stadiametric rangefinder
  • On-board digital compass
  • On-board WIFI

Specs

Detector Resolution 464x464
Pixel Pitch 12um
NETD, mK <=40
Frame Rate 50Hz
Objective Lens Diameter 35mm
FOV 8.8
Magnification 3-9x
Eye Relief 50mm
Detection range 1816m
Display 1.39" OLED
Battery 2x 18650 (built-in)
Optional Battery 18500
Battery Life 11.5h
Weight <850g
Dimensions 375x85x75mm
USB interface USB-C
Internal Storage 32GB



Full Manual HERE.

What's in the box:

  • TH35 Thermal Scope
  • Ballistic Nylon carrying case
  • Diopter lens assembly with 0/+1/+2/+3 diopter lenses
  • USB power adapter
  • USB-C video cable
  • 30mm medium-height scope rings
  • Rubber eyecup
  • Thermal targets
  • Cleaning cloth
