Experience a technological transformation in traditional sighting with this single device. The New Mate continues this legacy of innovation, featuring built-in LRF and ballistic calculation capabilities, significantly enhancing the hunting experience.
Ultra-clear Thermal Imaging
The new model is equipped with InfiRay's high-end proprietary thermal sensor (640*512 resolution, @12µm, NETD≤18mk), providing users with crystal-clear thermal imaging. It adapts to day scopes with up to 10× magnification while maintaining excellent image detail.
Mastering Distances with Integrated LRF

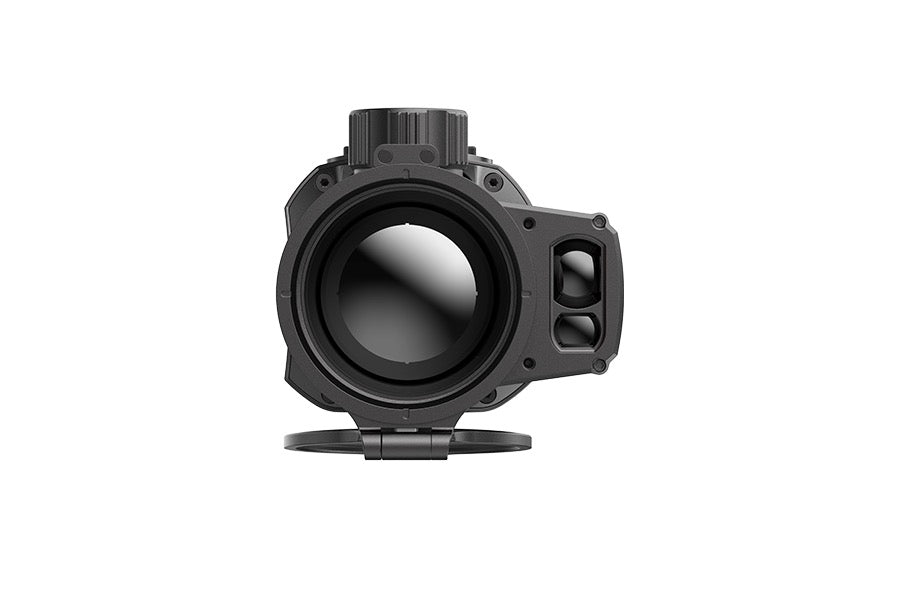

Introducing the innovative clip-on thermal product with an integrated Laser Range Finder (LRF) capable of 1,200m. It offers high-precision distance measurement and dynamic display, aiding hunters in quickly and accurately determining distances.
Navigating Accuracy with Ballistic Calculation
Supports strategic and precise ballistic calculations, ensuring each shot is accurately delivered. Hunters can more accurately predict the trajectory of bullets or arrows, thereby increasing the likelihood of hitting the target. It also helps in understanding the potential endpoint of the projectile, reducing the risk of accidental injuries and other safety hazards.
Magnetic Battery Packs
The device comes with additional magnetic battery packs for ease of carrying and installation, extending hunting time without the worry of battery depletion.
Stability and Precise Hunting
Constructed with robust magnesium alloy and rigid structural connections, the device is highly shock-resistant. It exceptionally meets the high-precision standard of 'POI=1MOA', ensuring stability and precision in every hunting endeavor.
Photo/Video/MIC/32GB

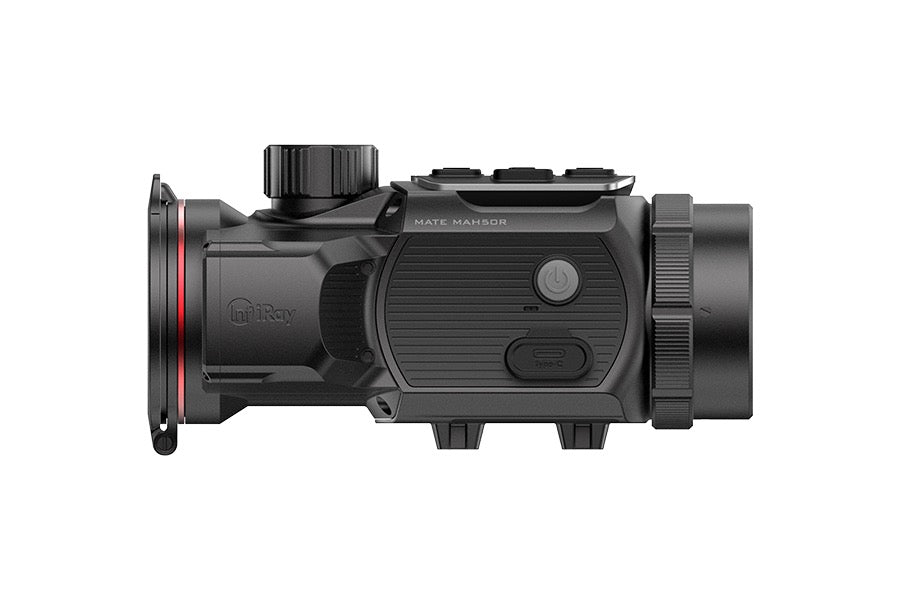

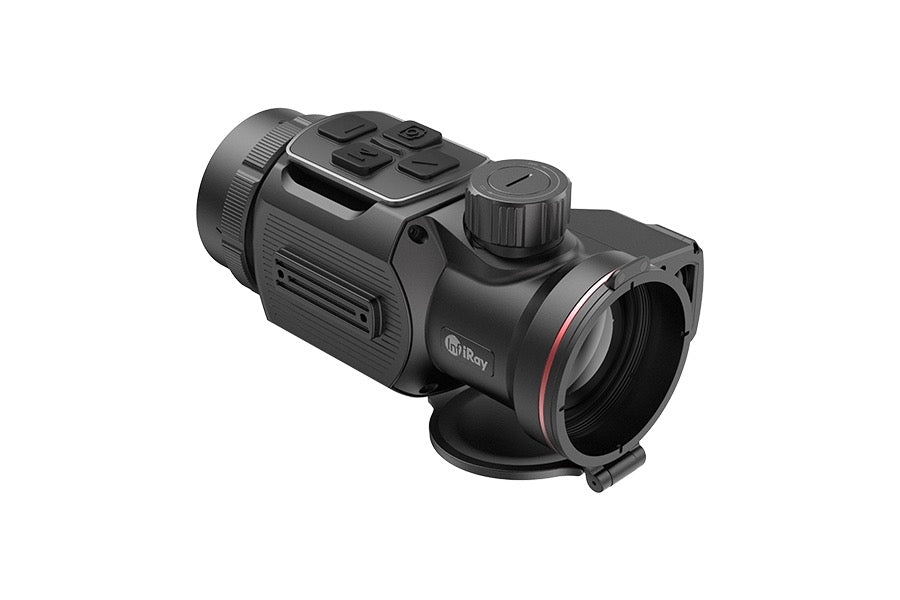

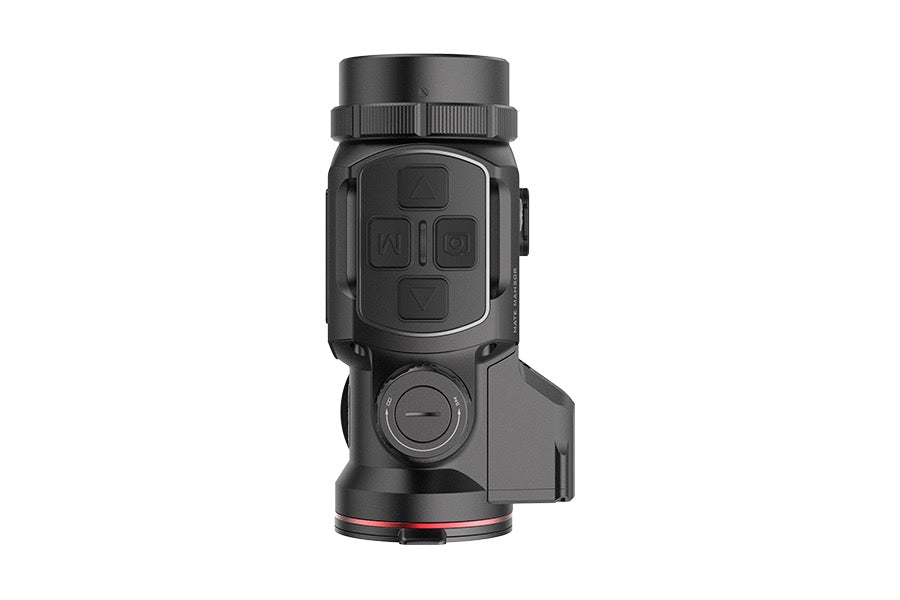

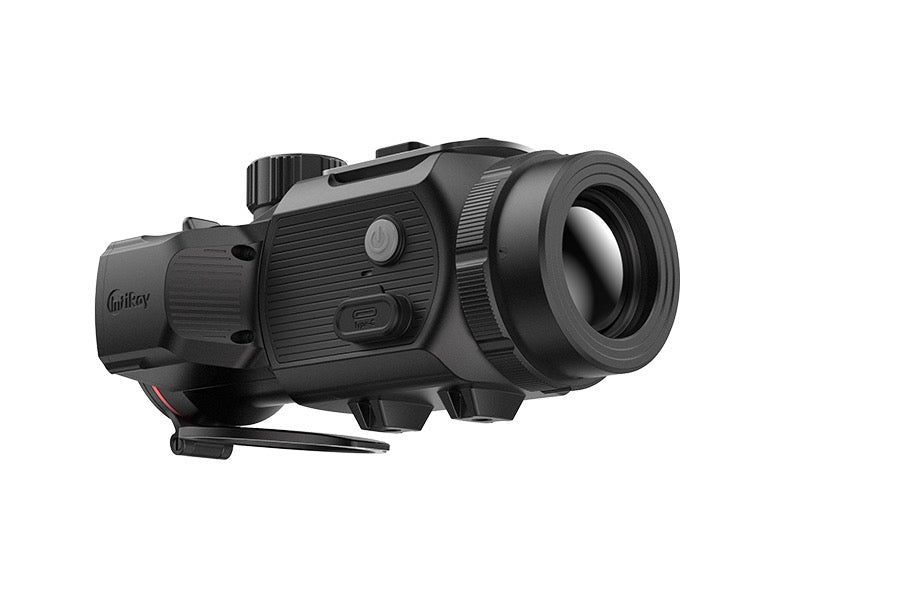

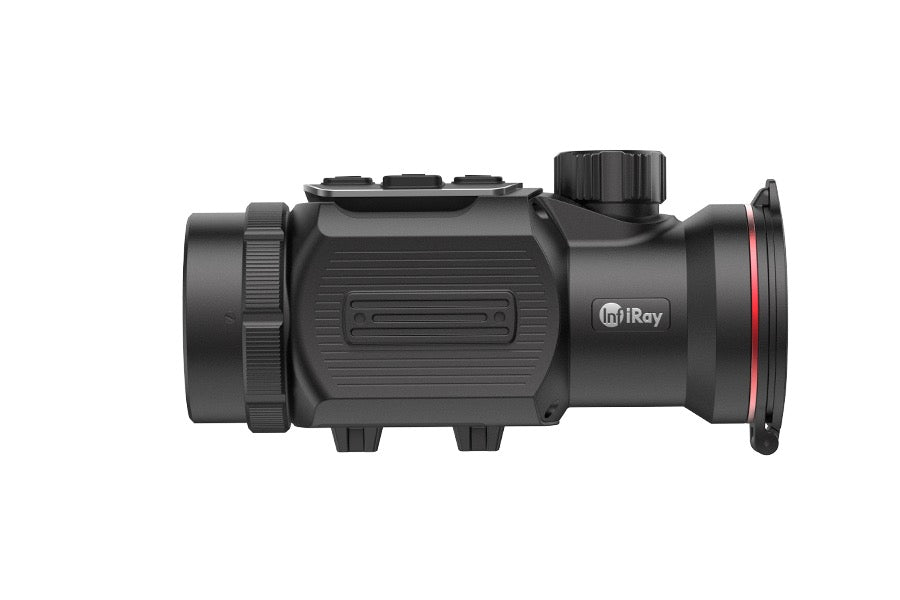

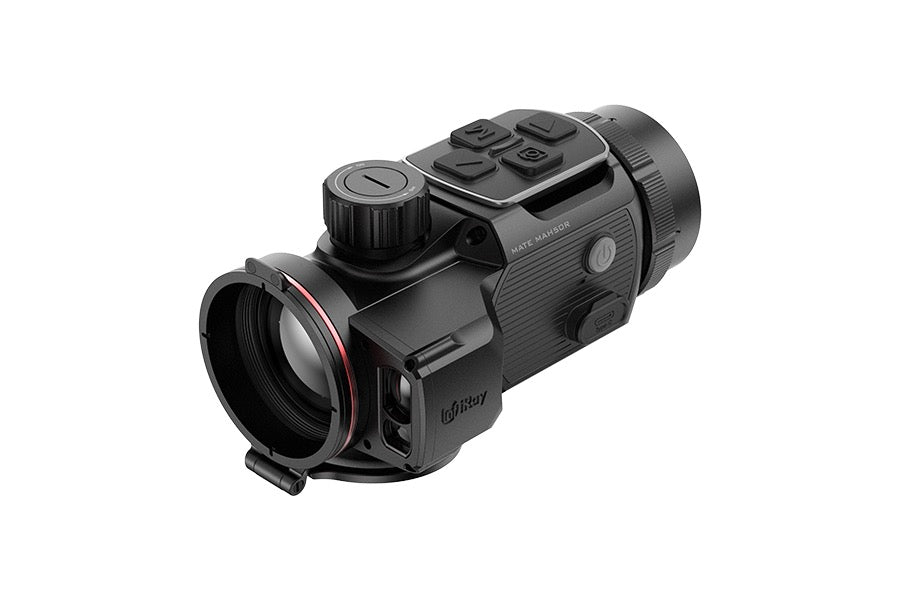

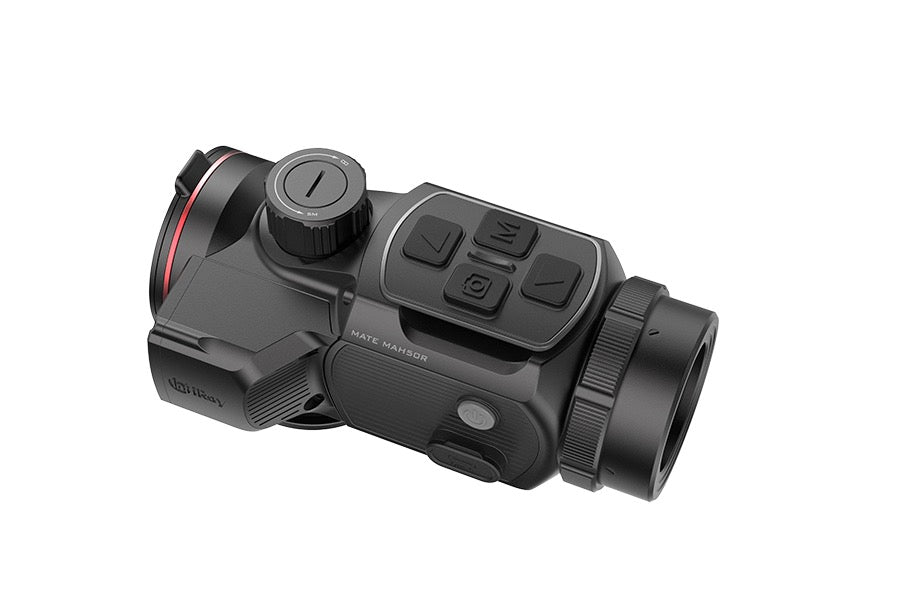

Mate MAH50R
|
Detector Specifications
|
|
Type
|
Vox
|
|
Resolution, pixel
|
640x512
|
|
Pixel Size, μm
|
12
|
|
NETD, mk
|
≤18
|
|
Frame Rate, Hz
|
50
|
Optical Specifications
|
|
Objective Lens, mm
|
50mm/F1.1
|
|
Field of View (H×V), °
|
8.8 × 7.0
|
|
Linear Field of View (HxV), m at 100m
|
15.4 x 12.3
|
|
Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2
|
Attachment: 1
Monocular: 1x/2X/4X
|
|
Detection range, m (Target size: 1.7m×0.5m, P(n)=99%)
|
2600
|
Display Specifications
|
|
Type
|
AMOLED
|
|
Resolution, pixels
|
1024×768
|
Battery Power Supply
|
|
Battery
|
Built-in battery / 1500mAH + IBP-6 Infiray battery Pack / 1100mAH*2
|
|
Max. operating time (22℃),h
|
4+5
|
|
External power supply
|
5V (Type C)
|
Physical Specifications
|
|
Wi-Fi/APP
|
YES (InfiRay outdoor)
|
|
Photo/video recorder
|
YES
|
|
MIC
|
YES
|
|
Memory capacity
|
32GB
|
|
IP rating
|
IP67
|
|
Operating temperature, ℃
|
-20 ~ +50
|
|
Weight, g
|
500g
|
|
Dimension, mm
|
147*75*73
|
Connections and Compatibilities
|
|
Max. recoil power on rifled weapon (Eo), Joules
|
6000
|
|
Recommended magnification of the day sight, x
|
G1/G2: 1×-5×
G3/G4: 6×-10×
|
|
Click value@100m, cm
|
1.6
|
Functions
|
|
Laser rangefinder
|
Integrated, 1200m
|
|
Ballistic calculation
|
YES
|
MAH50R User Manual - ENGLISH
