Falcon Optics X50 10-50x60 SFP Riflescope with MOA Reticle, and 1/8 MOA Click Adjustments

Falcon Optics X50 10-50x60 SFP Riflescope with MOA Reticle, and 1/8 MOA Click Adjustments

Regular price $1,299.00 CAD
Regular price Sale price $1,299.00 CAD
Sale Sold out
Shipping calculated at checkout.
AVAILABLE OPTIONS:
View full details

THESE FALCON X50 RIFLESCOPES ARE AVAILABLE ON SPECIAL ORDER. CONTACT US TO DISCUSS YOUR NEEDS.

NEW: As of February 2023, X50 Field Target 10-50x60 SFP now ALSO comes with a Revised Cam Design (with Big Sidewheel Gaps) - model code X505FT!! This offers a more gradual in-and-out of focus - mostly suited to experienced shooters.

The original model X503FT with smaller sidewheel gaps is still available, and as such, has more of a "snap" into and out of focus - which is more suited to beginners and intermediate shooters.

X50 FIELD TARGET FEATURES OF THE X503FT:

- Classic “snap” parallax mechanism and original cam design to give very snappy performance

- Targets move in and out of focus rapidly when adjusting the side parallax

- Field Target configuration with side parallax from 9m

- Includes Sunshade, Throw Lever and Flip Up Covers.

- Built in Japan

- +50 MOA elevation travel range

- Fully multi coated lenses (Low Dispersion)

- MOA200 Line Reticle, calibrated for MOA accuracy at 25x magnification. Installed in the second focal plane (SFP)

- 0.125MOA adjustment per click

- Nitrogen purged, waterproof, fogproof, shockproof

- Each unit is hand tested in the United Kingdom before sale

- Wheel not included unless ordered as an accessory

- Warranty : Repair or Replace if the scope doesn’t perform. No charge. No time limit

X50 FIELD TARGET FEATURES OF THE X505FT:

- Modified internal parallax mechanism and revised cam design to give very fine focus

- Around 2x the wheel separation for 50-55y or 45-50m targets (in comparison to standard version X503FT)

- Field Target configuration with side parallax from 9m

- Includes Sunshade, Throw Lever and Flip Up Covers.

- Built in Japan

- +50 MOA elevation travel range

- Fully multi coated lenses (Low Dispersion)

- MOA200 Line Reticle, calibrated for MOA accuracy at 25x magnification. Installed in the second focal plane (SFP)

- 0.125MOA adjustment per click

- Nitrogen purged, waterproof, fogproof, shockproof

- Each unit is hand tested in the United Kingdom before sale

- Wheel not included unless ordered as an accessory

- Warranty : Repair or Replace if the scope doesn’t perform. No charge. No time limit

X50 LONG RANGE FEATURES OF THE X504LR:

- Long Range configuration with side parallax from 10m > Infinity

- Includes Sunshade, Throw Lever and Flip Up Covers.

- Built in Japan

- +50 MOA elevation travel range

- Fully multi coated lenses (Low Dispersion)

- MOA200 Line Reticle, calibrated for MOA accuracy at 25x magnification. Installed in the second focal plane (SFP)

- 0.125MOA adjustment per click

- Nitrogen purged, waterproof, fogproof, shockproof

- Each unit is hand tested in the United Kingdom before sale

- Wheel not included unless ordered as an accessory

- Warranty : Repair or Replace if the scope doesn’t perform. No charge. No time limit

X50 GENERAL INFORMATION

These 10-50x60 riflescopes come in 3 versions. An original design X503FT Airrifle Field Target (FT) version with smaller sidewheel gaps, but it SNAPS into and out of focus and a NEW cam design X505FT with larger sidewheel gaps, but does NOT SNAP into and out of focus like the X503FT - both with parallax range from 9m to 300m, and then a LONG RANGE X504LR version with parallax range from 10m to infinity for long range shooting.

The reticle is an MOA reticle in the 2nd focal plane. See reticle diagram for details in the attached pictures.

In the Field Target version, there are several options, in BLACK and CERAKOTE SILVER finish and with or without a 140mm sidewheel, as follows:

BLACK:

X503FT - FIELD TARGET MODEL (no supplied sidewheel)

X505FT - FIELD TARGET MODEL (no supplied sidewheel)

X504LR - LONG RANGE MODEL

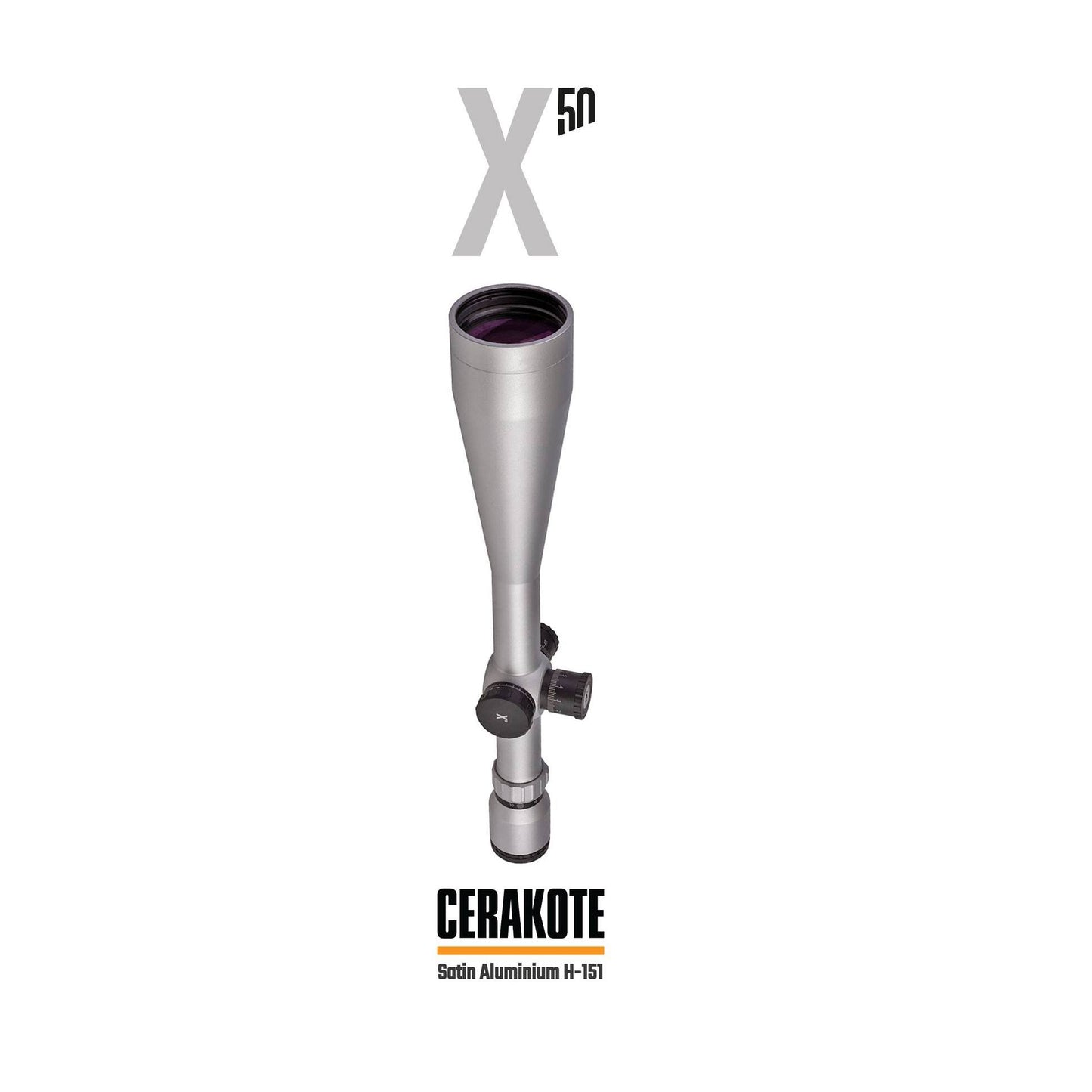

CERAKOTE SILVER:

X503FTS - FIELD TARGET MODEL (no supplied sidewheel)

X505FTS - FIELD TARGET MODEL (no supplied sidewheel)

X504LRS - LONG RANGE MODEL

Falcon 125mm Ranging Wheel for X50 by Greenham Engineering - F125X

- Made in England by Greenham Engineering

- 6082 T6 Aluminium Construction

- 125mm Diameter

- Anodised matte black

- Secures using a split collar adapter

- Weight : 95g

- Fits X503FT, X504LR & X505FT Models

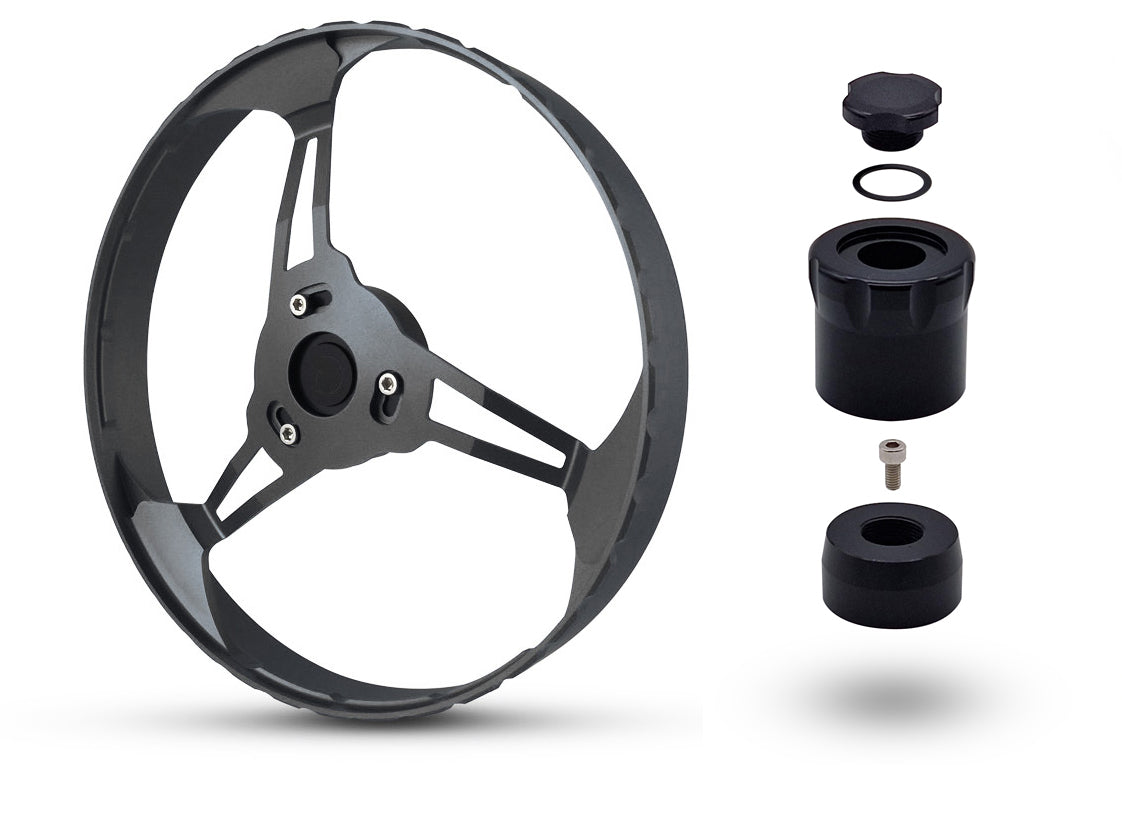

160mm Magnetic Wheel And Turret Set For X50 By Garima Design

Machined In Italy From 6026 Aluminium

160mm Magnetic Wheel

37mm Elevation Turret Cap

Connection:  Magnetic adapter to X50 side parallax turret cap

Turret Cap Size: 37mm Diameter

Material : 6026 Aluminium

Connection: Fixed to X50 turret spline using Garima adapter

Compatibility : Fits ALL model codes X503/X504/X505

These X50 riflescopes are made in JAPAN -  not China - using Japanese glass.

SPECIFICATIONS:



10-50x60 SFP

MAGNIFICATION RANGE

10-50x

FIELD OF VIEW @ 100M

3.0m - 0.71m

EYE RELIEF

115mm - 97mm



TOTAL ELEVATION ADJUSTMENT RANGE

>50.0MOA

ADJUSTMENT VALUE PER CLICK

0.125MOA

ADJUSTMENT PER TURN

10.0MOA

MINIMUM PARALLAX DISTANCE AT FULL POWER



9m (FT) 10m (LR)



RETICLE CHOICES

MOA200 MOA Line Reticle

RETICLE INSTALL

Second Focal



TOTAL LENGTH

429mm

WEIGHT

850g

TUBE DIAMETER

30mm

CONSTRUCTION

1 Piece Tube/Saddle/Objective

OBJECTIVE LENS DIAMETER

60mm

OUTER OBJECTIVE DIAMETER

69mm

OUTER OCULAR DIAMETER

42.5mm



ADDITIONAL SUNSHADES

1 Supplied

FLIP UP LENS COVERS

Yes, Supplied
