EAW FOKUS HD50 (with INCLUDED LRF1200 Laser Rangefinder and hard case. Made in Germany by a well known German Company (Ernst Apel - EAW) Delivery time is 2 weeks from time of placing order.

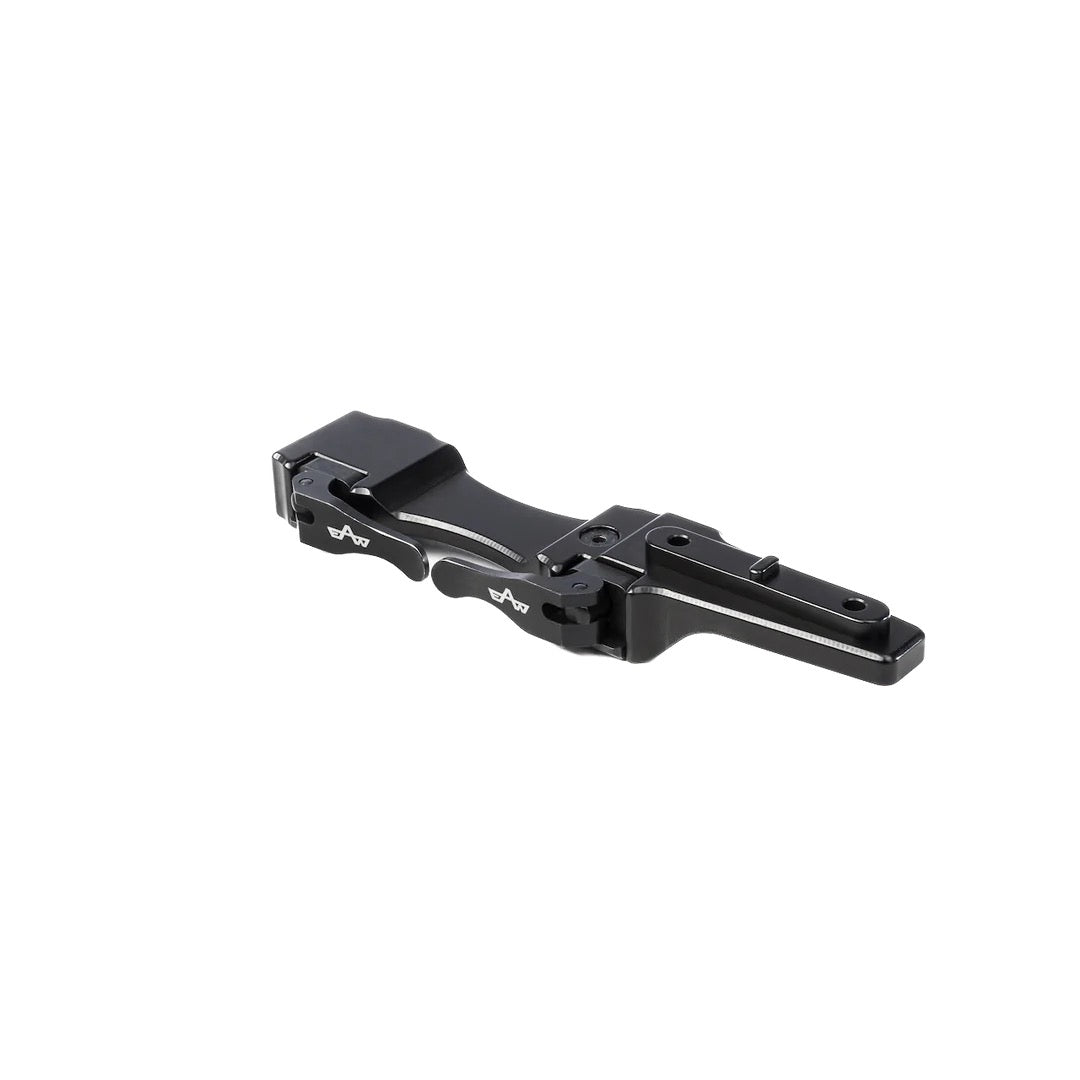

We also sell the EAW QUICK DETACH PICATINNY Mount - to mount the FOKUS 50 directly to your rifle for use as a stand alone Thermal Riflescope. This Picatinny Mount has an offset (extension) of 45mm and a BH height of 10mm.

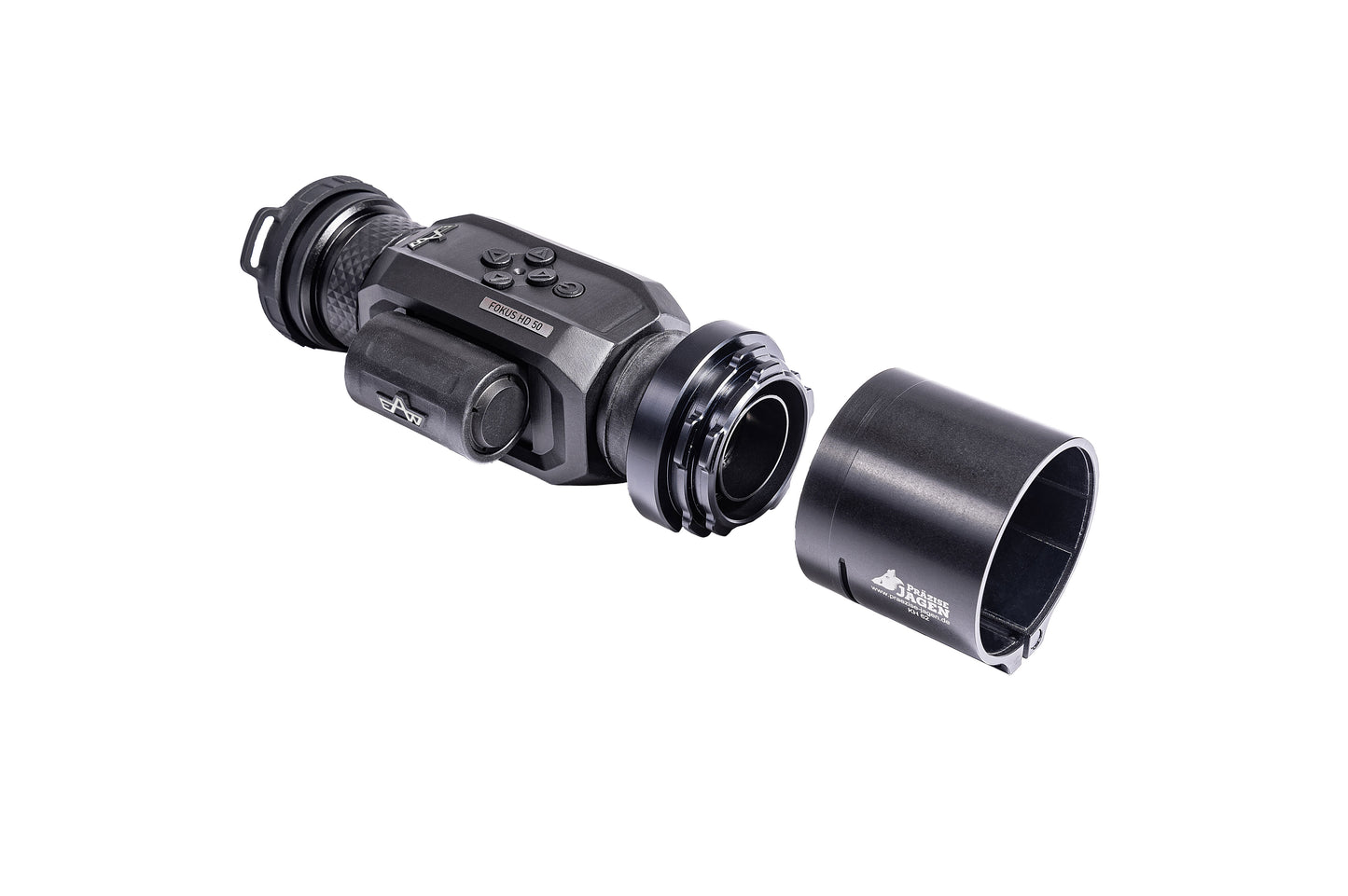

We stock and sell RUSAN Clip-On ADAPTERS for mounting the FOKUS HD50 to your favourite day telescope.
EAW launches the world‘s first triple-use thermal imaging camera, the Fokus HD 50!!
Following intensive development work, the EAW team presents another world first: the new EAW Fokus HD 50 thermal imaging camera, which impresses not only with its uncompromising, EAW-typical build quality, but also with its great versatility in use.

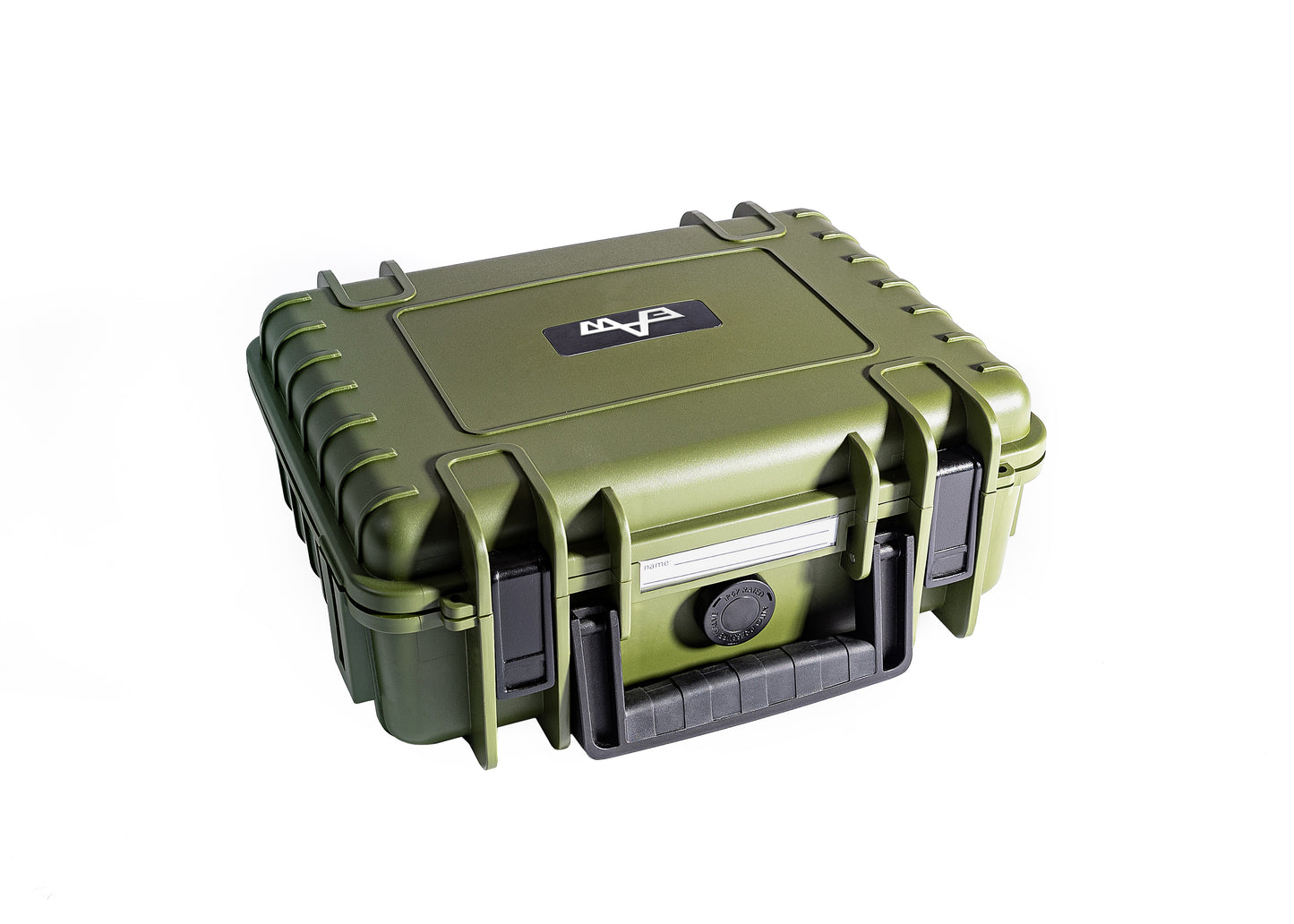

A practical, extremely robust carrying case rounds off the impressive overall package.
A well thought-out mechanical and optical design guarantees absolute shooting stability as well as maximum precision and repeatability as a clip on. Switching between the different modes can be done quickly and intuitively in just a few seconds thanks to the multi-function buttons.
The modular laser range finder (laser class 1) is eye-safe and measures precisely up to a distance of 1200m. It is included as part of the package!!
Thanks to the patented eyepiece, the future-oriented camera already covers all conceivable applications in modern hunting and can be used for spotting, as a clip on or as a thermal sight device. The FOKUS HD 50 offers multiple uses as Monocular, Clip-on for rifle scopes or as a stand-alone thermal scope mounted directly to a picatinny rail.
PRECISE AND REPEATABLE
The elaborate mechanical and optical construction guarantees absolute stability with any caliber and highest precision and repeatability as a clip on. No point of impact change with your optics. Can be used with turrets with bullet drop compensation (BDC). Save up to 5 rifles when used as a thermal sight.
Developed and manufactured entirely in Germany, the camera is made of high-strength 7075 T6 aluminum and, in addition to its extreme robustness, is 100% waterproof and salt water resistant. A shock-protecting and noise-reducing rubber coating on the surface also guarantees excellent ergonomics in all weather conditions.
Vox HD Sensor System (640x480px, 12μm). The sensor‘s excellent thermal sensitivity of < 30 mK NETD (Noise Equivalent Temperature Difference) guarantees a razor-sharp, high-contrast image even in poor conditions. The high-resolution HD sensor system in combination with a fast 50mm germanium lens guarantees outstanding image quality.
Video and photo recordings can be stored on the internal memory and are accessable via a USB-C connection. Direct streaming via an integrated WiFi module is also part of the standard equipment. This means that the current live image from the camera can also be viewed on a mobile device at the same time.
The integrated rechargeable battery with a runtime of up to 8 hours can also be supplied with external power or recharged at any time, for example with a portable charger.
Uses an M43 x 0.75mm adapter which we sell as an accessory, coupled with riflescope adapters in various dimensions.
Best function is given with low power magnification scopes in the range of 1-x, 2-x or 3-x times magnification.
The traditional manufacturer EAW from Würzburg has stood for quality and precision since the 1970s with the invention of pivot mounts and completely redefined the market at the time. In recent years, EAW has impressed with constant product innovations, for example in the production of precision components using the additive manufacturing process (3D printing) from aluminum and titanium.
FEATURES
- First triple-use thermal by EAW Germany
- Made from 7075 T6 Aluminum
- Mounts for numerous rifles/scopes available
- 100% waterproof and salt water resistant
- Vox HD Sensor System (640x480px, 12μm)
- Thermal sensitivity sensor of < 30 mK NETD
- Highest precision and repeatability as a clip-on device
- Laser range finder INCLUDED with 1200m range
- Save videos and pictures on internal data storage
- WiFi streaming to mobile devices
- Up to 8h of battery - mobile charging via portable charger
- Designed and produced in Germany
SPECIFICATIONS
Device Type |
Handheld Thermal Camera, Clip-on and Riflescope |
Scope of Delivery |
Hard Case, Lens Cap, USB Charger and Cable, Cleaning Cloth, Owners Manual, Thermal Pads |
Sensor Type |
VOx |
Sensor Resolution |
640 x 480 pixels |
Pixel Size |
12μm |
Dislay Type |
OLED |
Display Resolution |
1024 x 768 pixels |
Frame Rate |
50 Hz |
Obj. Focal Length |
50 mm / f1.0 |
Thermal Sensitivity NETD |
< 30 mK |
Optical Zoom Ratio |
Monocular 2x, Scope 2x, Clip-On 1x |
Digital Zoom Ratio |
1x/2x/4x |
FOV (1x digital Zoom) |
8.8° x 7° / 15.36m x 12.3m @ 100m |
Diopter Adjustment |
+/- 3 diopter |
Detection Range |
2640 meters |
Recognition Range |
660 meters |
Identification Range |
330 meters |
Laser |
Invisible, Eyesafe, Class1 |
LRF Wavelength |
905 nm |
Measurement Range |
Maximum 1200 m |
Video Connection |
Wi-Fi, USB-C |
Video Recording |
Yes |
Cable Connection |
USB-C |
Wireless Connection |
WiFi (2.4 GHz) |
Internal Storage |
32 GB |
Protection Level |
IP 67, Nitrogen purged |
Operating Temperature |
-20°C to 50°C |
Operating Temparature when Charging |
+10°C to 30°C |
Battery Runtime |
approx. 8 hours |
Battery |
3300 mAh |
Charging Options |
USB-C, Power Supply, External Powerbank |
Clip-on Thread |
M43x0.75 |
Tripod Thread |
A 1/4 DIN 4503 (1/4”) |
Enclosure Material |
Aluminium 7075 with Rubberized Coating |
Dimensions (L/W/H) without LRF |
194 x 57 x 61 mm |
Dimensions (L/W/H) with LRF |
194 x 86 x 61 mm |
Weight (including battery excl LRF) |
670 g |
Weight (including Battery and LRF) |
740g |
Accessory Mount |
Picatinny |
Recoil Rated |
up to 50 Cal. |
OWNERS MANUAL: click HERE
VIDEOS:
The following 2 videos are in GERMAN, but I uploaded them more for you to SEE the dimensions and "looks" of the unit.
