INFIRAY HOLO SERIES - HL13 Thermal Weapon Sight

INFIRAY HOLO SERIES - HL13 Thermal Weapon Sight

Regular price $1,859.00 CAD
Regular price Sale price $1,859.00 CAD
Sale Sold out
Shipping calculated at checkout.
View full details


Holo Series - HL13

The HL13 is our lightest and most compact picatinny-mounted thermal sight. Designed to mimic the footprint of traditional reflex sights, it is equipped with a 320*280, 17µm sensor, 14mm objective lens and 1.63” high-resolution AMOLED display. The HL13 is best suited for those seeking a light and compact picatinny-mounted thermal sight for close range engagements requiring rapid target acquisition.

Short Start-Up Time, Low Power Consumption

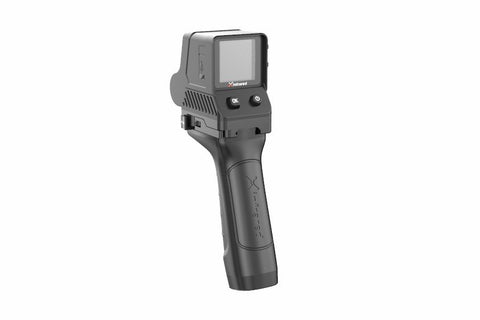

3 seconds start-up time helps to save energy and can be rapidly activated when the right time comes. Low power consumption guarantees you don’t have to worry about the power supply. Dual-Purpose Holo Thermal Scope is a sharp and distinct thermal monocular which looks pretty much similar to an ordinary handheld video camera. Moreover, when fitted on the custom handle, the Holo handle can be powered by a single 18650 battery. For example, the 20000mAh battery capacity can be used to supply a minimum of 8h to the Holo.

High Image Quality With 1.63” AMOLED Display

The high performance IRay VOx detector and the advanced image processing create brilliant and sharp images.And Holo series is designed for directly aiming with a 1.63” AMOLED display, that user can observe and aim fast and accurately using both eyes, more comfortable and clearer without visual difference.

Compact Size and Lightweight, IP67 Fully Waterproof

With reasonable layout, compact structure, user-friendly controls, ergonomic design and light weight ensure the Holo Series more comfortable and convenient for outdoor usage. IP67 waterproof-rated protection ensures the Holo Series performs perfectly in humid environment, heavy rain, snowfall and submersion in 1 meter of water for up to 30 minutes.



• Resolution: 320 x 280 pixels
• Pixel Size: 17 um
• NETD: ≤40 mk
• Frame Rate: 25 Hz
• Objective Lens: 13mm
• Field of View: 23.6° × 20.7°
• Display: 1.63” AMOLED
• E-zoom: ×1\×2\×3\×4
• Laser: 650 nm
• Reticle: Multiple Patterns and Colour Options
• Battery: CR123A
• Max. Battery Life: 3.5 hrs
• Handle battery: CR123A
• Max. Battery Life: 8 hrs
• IP Rating: IP67
• Weight (without battery): <250g
• Dimensions: 58.5 × 80.5 × 74.5mm
• Mount: Picatinny
• Detection Range (Target size: 1.7m×0.5m, P(n)=99%): 476m
